INSTALLATION AND SERVICE MANUAL
FLAVOR SELECT 30 (FS30)

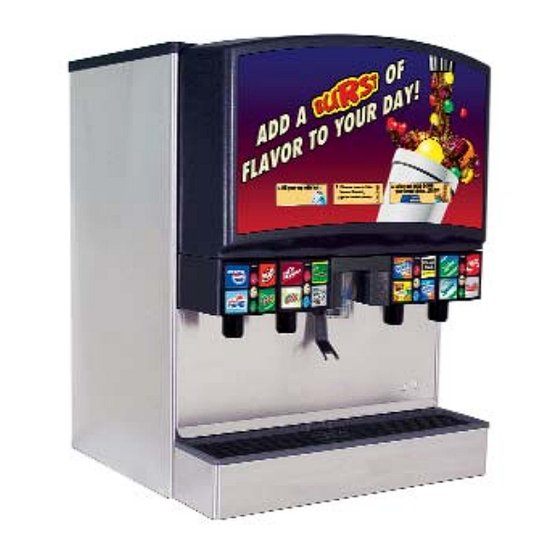

ICE BEVERAGE DISPENSER
85-14808-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 8 BRANDS / 12 FLAVORS, 115V/60Hz
85-14808N-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 8 BRANDS / 12 FLAVORS, 115V/60Hz
85-14810-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 10 BRANDS / 12 FLAVORS, 115V/60Hz
85-14810N-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 10 BRANDS / 12 FLAVORS, 115V/60Hz
85-14812-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 12 BRANDS / 12 FLAVORS, 115V/60Hz
85-14812N-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 12 BRANDS / 12 FLAVORS, 115V/60Hz
85-14814-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 14 BRANDS / 12 FLAVORS, 115V/60Hz
85-14814N-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 14 BRANDS / 12 FLAVORS, 115V/60Hz
85-14816-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 16 BRANDS / 12 FLAVORS, 115V/60Hz
85-14816N-12
ICE BEVERAGE DISPENSER, ABOVE COUNTER MULTI BRAND,
30 INCH WIDE, 16 BRANDS / 12 FLAVORS, 115V/60Hz
This manual supersedes and replaces 28-0558/01, dated 03/17/05.
• NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 •
• LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 •
"Lancer" is the registered trademark of Lancer • Copyright — 2006 by Lancer, all rights reserved
FOR
LANCER SERIES 14800
6655 LANCER BLVD. • SAN ANTONIO, TEXAS 78219 USA • (210) 310-7000
FAX SALES
FAX Engineering: • 210-310-7096
PELLET ICE
PELLET ICE
PELLET ICE
PELLET ICE
PELLET ICE
DATE:
03/06/06
P.N.
28–0558/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for lancer 14800 Series

Summary of Contents for lancer 14800 Series

  • Page 1 • NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 • • LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 • FAX Engineering: • 210-310-7096 DATE: 03/06/06 P.N. 28–0558/02 "Lancer" is the registered trademark of Lancer • Copyright — 2006 by Lancer, all rights reserved...

  • Page 2: Specifications

    WHEN UNIT IS BEING SERVICED, CLEANED, OR SANITIZED, UNPLUG DISPENSER FROM THE POWER SOURCE. NOTE Lancer does not recommend the use of shaved, flake, nugget, or pellet ice in dispensers not properly equipped to do so (see Section 6.2, this manual). 29"...

  • Page 3: Table Of Contents

    The design allows for a single drain and the ability for up to 16 independent brands to be dispensed through four (4) Lancer Multi-Flavor dispense nozzles. A total of 12 "bonuses" (ambient flavors) may be added to the drink via the flavor injection system on four (4) nozzles. The bonus flavors are plumbed independently to each of the nozzles allowing for a multitude of customer pleasing drink combinations.

  • Page 4: Installation

    FILLING MANUALLY WITH ICE, WHEN ICE MAKER NOT USED NOTE: Please refer to specific icemaker model for proper air intake/exhaust ventilation with Lancer units. 10" (254 mm) DISPENSE HEIGHT 30 1/2" (775 mm) MINIMUM of 6" (152 mm) MINIMUM of 6" (152 mm)

  • Page 5: Selecting Counter Location

    If the water pressure is lower than 75 psi flowing, a Water Booster system must be used. NOTE: The Lancer Water Booster/Tank, PN MC-163172, is offered as a kit. The Water Booster must be installed as close as possible to the plain water circuit inlet.
  • Page 6 NOTE: The regulator (Lancer PN 18-0306) must be installed as close as possible to the water carbonator pump inlet. The water pressure value feeding the carbonator is recommended to be at a minimum of 25 PSI.

  • Page 7: Optional Installation Of Sold-Out Device

    Q. Install Top Cover. NOTE Lancer does not recommend the use of shaved, flake, nugget, or pellet ice in dispensers not properly equipped to do so (see Section 6.2, this manual). R. Set brix ratio for beverage dispensing valves according to manufacturer's instructions.

  • Page 8: Required Cleaning Equipment

    REQUIRED CLEANING EQUIPMENT A. Cleansers (for example, Ivory Liquid, Calgon, etc.) mixed with clean, potable water at a temperature of 90 to 110 degrees Fahrenheit should be used to clean equipment. The mixture ratio, using Ivory Liquid, is one (1) ounce of cleanser to two (2) gallons of water. A minimum of five (5) gallons of cleaning mixture should be prepared.

  • Page 9: Ice Bin Cleaning - Start Up And Monthly

    L. Fill unit with ice and replace Top Cover. NOTE Lancer does not recommend the use of shaved, flake, nugget, or pellet ice in dispensers not properly equipped to do so (see Section 6.2, this manual). M. Reconnect Dispenser to power source.

  • Page 10: Cleaning And Sanitizing Beverage Components - Bag-In-Box Systems

    water. Connect CO supply hose to tank and pressurize. C. Activate valve until water is dispensed. Flush and rinse line and fittings for a minimum of 60 seconds to remove all traces of residual product. WARNING TO AVOID POSSIBLE PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT ATTEMPT TO REMOVE SYRUP TANK COVER UNTIL CO PRESSURE HAS BEEN RELEASED FROM TANK.

  • Page 11: How To Operate And Adjust The Lancer Fs30

    The following descriptions reflect Firmware Versions: Controller Board: 0.405 and the Valve Board: 1.100. Lancer reserves the right to make changes and updates as required. If you have any questions regarding the latest versions of programs, please contact your Lancer representative.
  • Page 12 Soda water, or plain Water. (NOTE: Water is NOT an option for Valves 1 and 4.) e. Press ENTER to finalize settings. Panel lights should confirm finalized configurations. INITIALIZATION SCREEN (BOOT UP ONLY) LANCER FS-16 VER. 0.40000 MAIN MENU SUB-CATEGORY Scrolls through Main Menu...

  • Page 13: Purging The Carbonation System

    F. Remove nozzle by twisting counter clockwise and pulling down. G. Install Lancer syrup separator (PN 54-0362) in place of nozzle. H. Activate dispensing valve to fill separator syrup tube. Hold a Lancer brix cup under the syrup separator and dispense water and syrup into cup for four...

  • Page 14: Weekly Adjusting Of Water To Syrup (Ratio) Brix (Lfcv ® )

    WEEKLY ADJUSTING OF WATER TO SYRUP (RATIO) BRIX (LFCV ® A. Hold the Lancer brix cup under the syrup separator and activate valve. Check brix. B. To obtain the proper brix, use screwdriver to adjust syrup flow control. C. Once proper ratio is obtained repeat to verify.

  • Page 15: Troubleshooting Guide For The Fs30 Dispenser

    4. TROUBLESHOOTING GUIDE FOR FS30 DISPENSER TROUBLE CAUSE REMEDY No product when A. Keyswitch is off, or Keyswitch A. Turn Keyswitch "ON" and/or switch is activated. harness disconnected. reconnect Keyswitch harness. (Switch panel does B. 9-pin valve harness is B. Turn off power, reconnect 9-pin NOT light up when disconnected.
  • Page 16 TROUBLE CAUSE REMEDY (Section 4.12 is continued from the previous page.) C. Foreign debris in Soda Flow C. Remove Soda Flow Control from Control. valve and clean out any foreign material to ensure smooth spool movement. 4.13 Insufficient Water flow. A.
  • Page 17 TROUBLE CAUSE REMEDY 4.18 Syrup only dispensed. A. Improper water flow to A. Check for water flow to dispenser. No water, but CO dispenser. dispensed with syrup. B. Carbonator pump motor has B. Reset by turning the unit OFF and timed out.

  • Page 18: Extra Capabilities

    TROUBLE CAUSE REMEDY 4.25 BIB pump continues to A. Leak in suction line. A. Replace line. operate when bag is B. Leaking o-ring on pump inlet B. Replace o-ring. empty. fitting. C. Defective syrup BIB pump. C. Replace defective pump. 4.26 BIB pump fails to A.
  • Page 19 NOTES Please refer to the Lancer web site (www.lancercorp.com) for information relating to Lancer Installation and Service Manuals, Instruction Sheets, Technical Bulletins, Service Bulletins, etc.

  • Page 20: Illustrations, Parts Listings, And Wiring Diagrams

    6. ILLUSTRATIONS AND PARTS LISTINGS FINAL ASSEMBLY 27 26 13 14...
  • Page 21 Agitator Assy 54-0289 Nozzle Assy, Multi-Flavor, STHL 10-0762 Pin, Agitator, 1/4”, PASS 13 05-2120 Bezel, Multi-Brand, 1L/2R 03-0368 Retainer, RUE-14-S, Lancer Ice 14 82-3286/01 Switch Assy, MB, 2L/2R Link 15 19-0262/01 Valve Assy, LFCV, 0.2, Syrup 05-1859 Body, Detector, Sensor, Plugged...

  • Page 22: Pellet Ice Assembly And Parts Listing

    PELLET ICE ASSEMBLY AND PARTS LISTING...

  • Page 23: Wiring Diagram - 115V/60Hz (Figure Schematics)

    WIRING DIAGRAM - 115V/60HZ (Figure Schematics)

  • Page 24: Plumbing Diagram With Valve Wiring

    PLUMBING DIAGRAM WITH VALVE WIRING...
