Connecting an xPico Module — Network Method
A network connection, if the equipment is available, is the preferred method for
the initial configuration of the xPico.
Note:
sure that the correct xPico module for your needs is fitted. Removing and
inserting the xPico module is quite simple and requires removing the fitted
mounting clip and exchanging the module in the 40-pin socket.

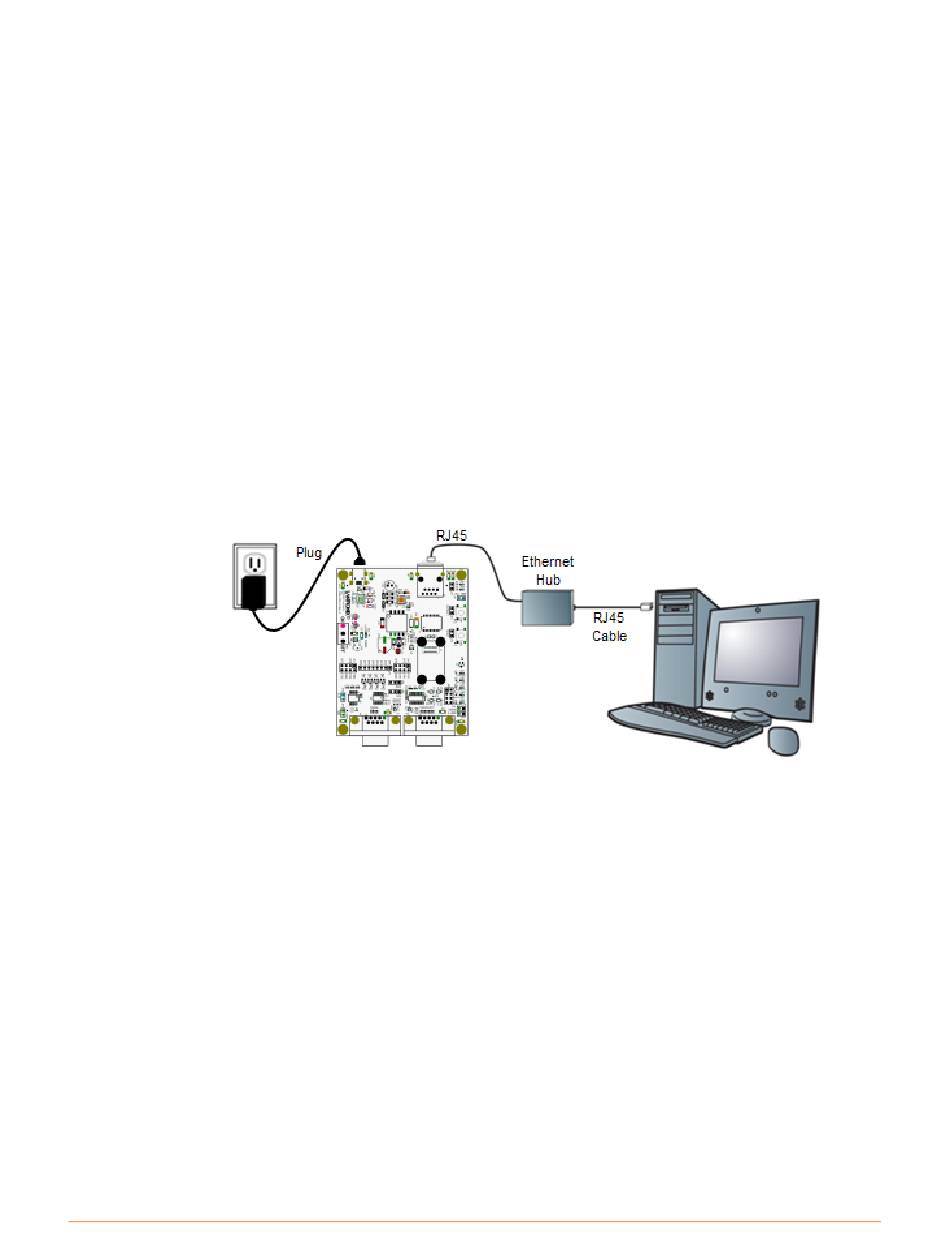

1. Connect the PC to the Evaluation Board with a cross-over cable or a
hub/switch and two RJ45 cables. Make sure there is no router between the
PC and the Evaluation Board.
2. Select the appropriate power plug adaptor for your geographical location.
Insert it into the slot on the Universal Power Supply; then plug the power
supply into an outlet.
3. Connect the output plug of the power supply to the Evaluation Board.
4. Move the power switch on the Evaluation Board to ON.
This is the last step in 'connection.' The xPico is ready for configuration.
5. Continue with
