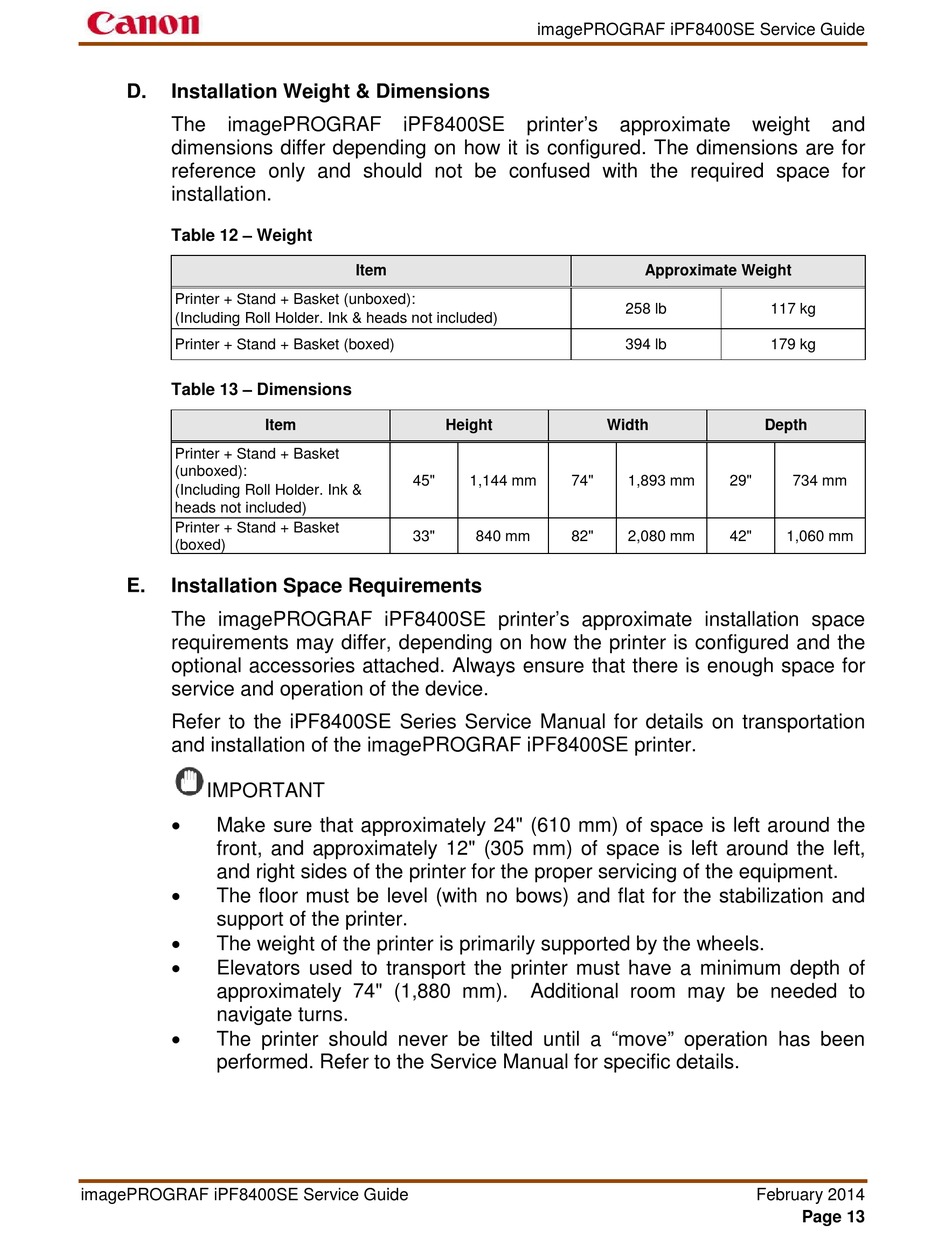

D. Installation Weight & Dimensions
The imagePROGRAF
dimensions differ depending on how it is configured. The dimensions are for
reference only and should not be confused with the required space for
installation.
Table 12 – Weight
Printer + Stand + Basket (unboxed):
(Including Roll Holder. Ink & heads not included)
Printer + Stand + Basket (boxed)
Table 13 – Dimensions
Printer + Stand + Basket
(unboxed):
(Including Roll Holder. Ink &
heads not included)
Printer + Stand + Basket
(boxed)
E.

Installation Space Requirements

The imagePROGRAF iPF8400SE printer's approximate installation space
requirements may differ, depending on how the printer is configured and the
optional accessories attached. Always ensure that there is enough space for
service and operation of the device.
Refer to the iPF8400SE Series Service Manual for details on transportation
and installation of the imagePROGRAF iPF8400SE printer.
IMPORTANT

Make sure that approximately 24" (610 mm) of space is left around the
front, and approximately 12" (305 mm) of space is left around the left,
and right sides of the printer for the proper servicing of the equipment.

The floor must be level (with no bows) and flat for the stabilization and
support of the printer.

The weight of the printer is primarily supported by the wheels.

Elevators used to transport the printer must have a minimum depth of
approximately 74" (1,880 mm).
navigate turns.

The printer should never be tilted until a "move" operation has been
performed. Refer to the Service Manual for specific details.
