Clock Sources

Overview
As shown in
clock input sources, all of which are located below the Xilinx logo, near the Spartan-3E
logo.
•
•
•
•
.
MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
UG257 (v1.1) December 5, 2007
Figure 3-1, the MicroBlaze Development Kit board supports three primary
The board includes an on-board 50 MHz clock oscillator.
The user clock socket is populated with a 66 MHz oscillator
Clocks can be supplied off-board via an SMA-style connector. Alternatively, the FPGA
can generate clock signals or other high-speed signals on the SMA-style connector.
Optionally install a separate 8-pin DIP-style clock oscillator in the supplied socket
Bank 0, Oscillator Voltage
(Controlled by Jumper JP9)
Spartan-3E
Development Board
On-Board 50 MHz Oscillator

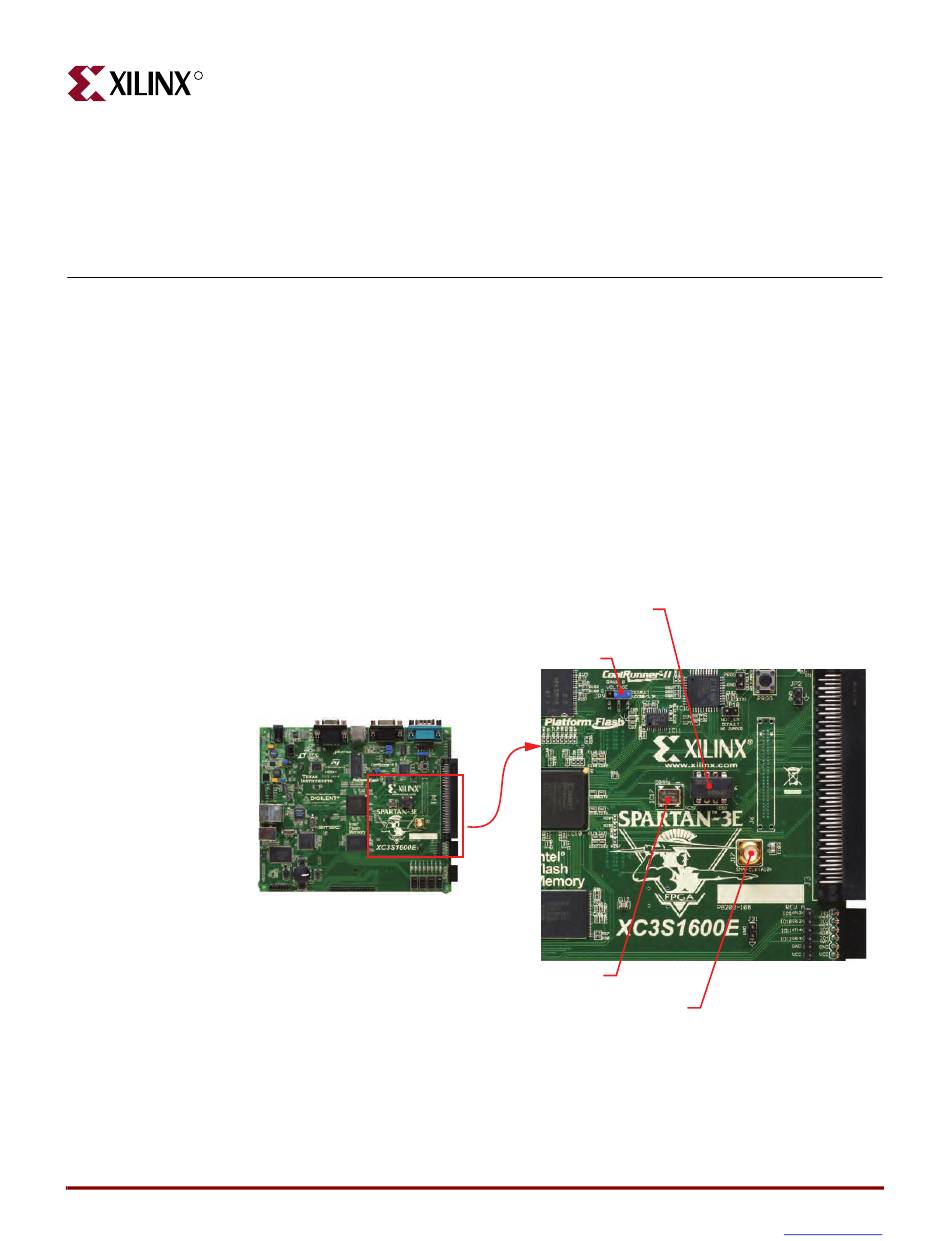

Figure 3-1: Available Clock Inputs
8-Pin DIP Oscillator Socket
CLK_AUX:[B8]
CLK_50MHz:[C9]
SMA Connector
Chapter 3
UG257_03_01_061306
19
