Chapter 2: Switches, Buttons, and Knob
Operation
Each LED has one side connected to ground and the other side connected to a pin on the
Spartan-3E device via a 390Ω current limiting resistor. To light an individual LED, drive
the associated FPGA control signal High.
UCF Location Constraints
Figure 2-11
I/O pin assignment, the I/O standard used, the output slew rate, and the output drive
current.
Related Resources
•
18
www.xilinx.com
Spartan-3E
Development Board

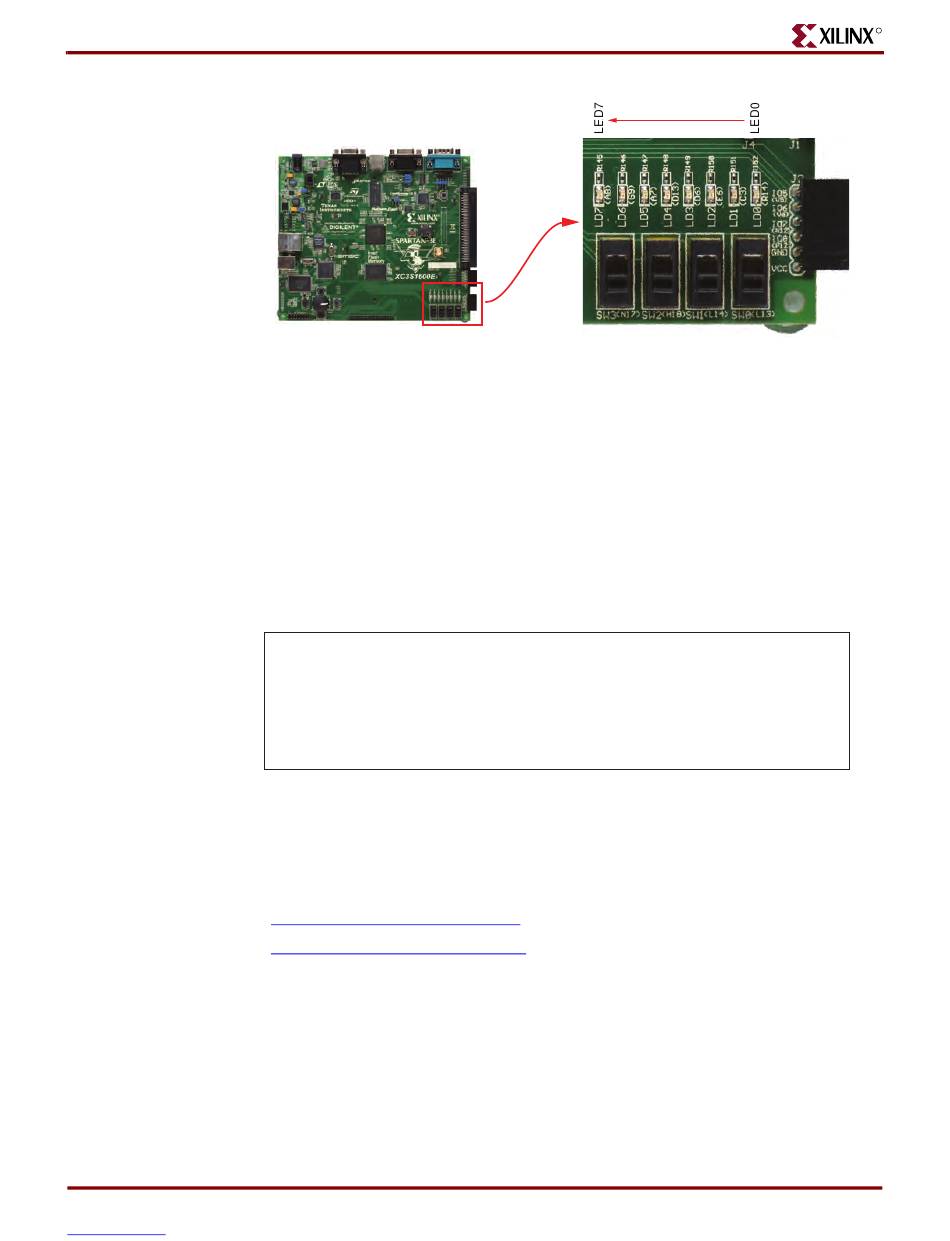

Figure 2-10: Eight Discrete LEDs
provides the UCF constraints for the four push-button switches, including the
NET "LED<7>" LOC = "A8" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<6>" LOC = "G9" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<5>" LOC = "A7" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<4>" LOC = "D13" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<3>" LOC = "E6" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<2>" LOC = "D6" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<1>" LOC = "C3" | IOSTANDARD = LVTTL | SLEW = SLOW | DRIVE = 8 ;
NET "LED<0>" LOC = "D4" | IOSTANDARD = SSTL2_I ;
Figure 2-11: UCF Constraints for Eight Discrete LEDs
