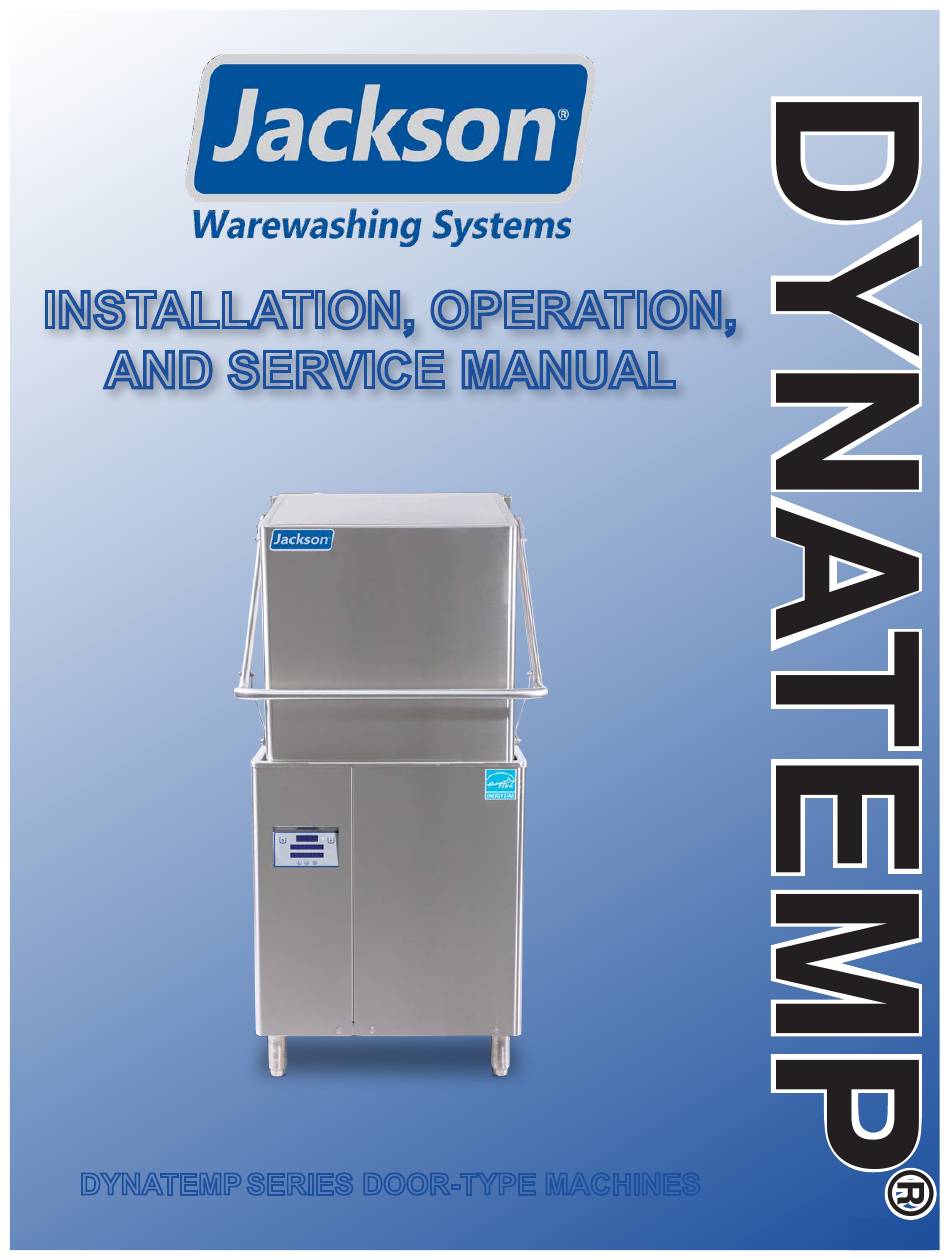

- Page 1 INSTALLATION, OPERATION, AND SERVICE MANUAL DYNATEMP SERIES DOOR-TYPE MACHINES DynaTemp Manual • 07610-004-29-29-D...
- Page 3 The labor to repair or replace such failed part will be paid by Jackson WWS, within the continental United States, Hawaii, and Canada, during the warranty period provided a Jackson WWS authorized service agency, or those having prior authorization from the factory, performs the service.
- Page 4 REVISION HISTORY Revision Revision Applicable Made by Details Letter Date ECNs 07-27-16 Initial release of the manual. Updated top-view dimensions, pg. 1. Updated table dimensions, pg. 2. Added Drain Quench Kit P/N to pg. 50. Updated Outlet Steam Plumbing, pg. 39. ECN 8392 Updated Inlet Steam Plumbing, pg.
- Page 5 NOMENCLATURE ® DynaTemp Door-type machine; electrically-heated, high-temp, hot-water sanitizing, with booster heater. ® DynaTemp Door-type machine; electrically-heated, high-temp, hot-water sanitizing, without booster heater. ® DynaTemp Door-type machine; steam-heated, high-temp, hot-water sanitizing. ® DynaTemp Door-type machine; electrically-heated, high-temp, The manufacturer provides hot-water sanitizing, with booster heater and technical support for all of VER heat recovery system.
- Page 6 TABLE OF CONTENTS GUIDES Symbols ............................1 Abbreviations & Acronyms ......................1 SPECIFICATIONS DynaTemp/NB/S Dimensions ..................... 2 VER Dimensions......................... 3 Table Dimensions Operating Capacities Electrical Requirements INSTALLATION Installation Instructions .......................... 7 Inspection 7 Unpacking 7 Leveling 7 Plumbing 7 Drain Line Connection 7 Water Supply Connection 8 Steam Line Connection 8...
-
Page 7: Table Of Contents
TABLE OF CONTENTS MAINTENANCE Preventative Maintenance TROUBLESHOOTING Programming ..........................20 Fault Codes ..........................22 Common Problems ........................25 PARTS Control Box ..........................27 Hood ............................29 Cantilever Arm .......................... 30 Tub ............................32 Steam Tub ..........................34 Steam Coil ..........................36 Frame ............................ - Page 8 GUIDES GUIDES SYMBOLS - risk of injury to personnel. WARNING - risk of damage to equipment. CAUTION - risk of electrical shock. - caustic chemicals. - reference data plate. - lockout electrical power. - important note. NOTICE - instructions hyperlink. ABBREVIATIONS &...
- Page 9 DYNATEMP/NB/S DIMENSIONS SPECIFICATIONS LEGEND A - Drain Connection (1 1/2" NPT) B - Water Inlet (1/2" NPT) (3/4" NPT - DynaTemp S) C - Electrical Connection (1 1/4" Hole Size) 5" 1 7/16" D - Steam Inlet (3/4" NPT) [127 mm] [37 mm] Minimum E - Steam Outlet (3/4"...
- Page 10 VER DIMENSIONS SPECIFICATIONS LEGEND A - Drain Connection (1 1/2" NPT) B - Water Inlet (1/2" NPT) C - Electrical Connection (1 1/4" Hole Size) 30 3/8 D - Detergent Connection [770 mm] E - Rinse-aid Connection All dimensions from the floor can be increased 2"...
- Page 11 TABLE DIMENSIONS SPECIFICATIONS CORNER INSTALLATION For Corner Install instructions, this link. 5" [127 mm] 1 7/16" Minimum [37 mm] 5 3/8” [137 mm] 5” [127 mm] 30" 20 1/2" [521 mm] [762 mm] Opening 20 1/2" [521 mm] Opening 30" [762 mm] 1 1/4”...
- Page 12 OPERATING CAPACITIES SPECIFICATIONS WATER REQUIREMENTS PERFORMANCE/CAPABILITIES Operating Capacity: DynaTemp Wash Temperature (Minimum) 150 °F/66 °C DynaTemp/DynaTemp NB/DynaTemp S Rinse Temperature (Minimum) 180 °F/83 °C Inlet Water Temperature 110 °F/44 °C Racks per Hour Flow Pressure (PSI) 10 ± 2 Dishes per Hour 1425 Water Line Size (NPT) 1/2”...
- Page 13 ELECTRICAL REQUIREMENTS SPECIFICATIONS Local codes may require more stringent protection than what is displayed here. Always verify with your electrical service contractor that your circuit protection is adequate and meets all applicable national and local codes. Numbers in this manual are for reference and may change without notice NOTICE On three-phase machines, imbalanced wild leg goes to L3...
- Page 14 INSTRUCTIONS INSTALLATION Before installing the machine, check the packaging and machine for damage. If the INSPECTION packaging is damaged, the machine might also be damaged. If there is damage to both the packaging and machine, do not throw away the packaging. The machine has been inspected and packed at the factory and is expected to arrive to you in new, undamaged Do not throw away the condition.
- Page 15 INSTRUCTIONS INSTALLATION WATER SUPPLY NOTICE Read the Plumbing section on the previous page before proceeding CONNECTION Install the water supply line to the machine using copper pipe. A water shut-off valve should be installed in the water line between the main supply and the machine to allow access for service.
- Page 16 INSTRUCTIONS INSTALLATION CHEMICAL Detergent Connect detergent by removing the bulkhead fitting on the side of the machine and CONNECTIONS replacing it with the appropriate dispensing equipment. Chemical connections should be made by the chemical supplier. Using deionized water or other aggressive fluids will result in corrosion and failure of components and will void the warranty.
- Page 17 INSTRUCTIONS INSTALLATION ELECTRICAL POWER Electrical and grounding conductors must comply with the applicable portions of the National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes. CONNECTIONS The data plate is located on the left side of the machine. Refer to the data plate for machine operating requirements, machine voltage, total amperage, and serial number.
- Page 18 INSTRUCTIONS INSTALLATION VOLTAGE CHECK 1. Ensure the power switch is in the OFF position and apply power to the machine. 2. Check the incoming power at the terminal block and ensure it corresponds to the voltage listed on the data plate. If not, contact a qualified service agency to examine the problem.
- Page 19 OPERATING INSTRUCTIONS OPERATION PREPARATION Before operating the machine, verify the following: 1. The pan strainers and suction strainer are in place and are clean. 2. The standpipe and o-ring are installed. 3. The wash and rinse arms are screwed securely into place and the end-caps are tight.
- Page 20 OPERATING INSTRUCTIONS OPERATION Proper ware preparation will help ensure good results and fewer re-washes. If not WARE done properly, ware might not come out clean and the efficiency of the machine PREPARATION will be reduced. Putting unscraped dishes into the machine affects its performance, so scraps should always be removed from ware before being loaded into a rack.
- Page 21 OPERATING INSTRUCTIONS OPERATION SHUTDOWN & At the end of the day/shift: CLEANING 1. Close the door. 2. When the machine completes the cycle, turn the machine off by pressing the Power Button. 3. Open the door. 4. Remove and clean the pan strainers and set aside. 5.
- Page 22 OPERATING INSTRUCTIONS OPERATION SHUTDOWN & 7. Unscrew the wash and rinse arms from their manifolds. CLEANING 8. Verify the nozzles and arms are free from obstruction. If clogged, remove end- caps, clean nozzles with a brush, and flush with fresh water. 9.
- Page 23 OPERATING INSTRUCTIONS OPERATION DETERGENT Detergent usage and water hardness are two factors that contribute greatly to how efficiently this machine will operate. Using detergent in the proper amount can CONTROL become a source of substantial savings. A qualified water-treatment specialist can determine what is needed for maximum efficiency from the detergent.
- Page 24 OPERATING INSTRUCTIONS OPERATION DELIMING To maintain the machine at its optimum performance level, lime and corrosion de- posits must be removed. The frequency for deliming will be based on water condi- tions. A deliming solution is available from your chemical supplier. Read and follow all instructions on the label.
- Page 25 DISPLAY INSTRUCTIONS OPERATION Press and release the I Button to set cycle 1. SETTING CYCLES Press and release the II Button to set cycle 2. Press and release the III Button to set cycle 3. While the machine is powered off, press and hold the Power Button. The total cycle CHECKING count will display for several seconds, followed by a “power-on”...
-
Page 26: Maintenance
PREVENTATIVE MAINTENANCE MAINTENANCE The manufacturer highly recommends that any maintenance and repairs not specifically PREVENTATIVE discussed in this manual be performed only by qualified service personnel. MAINTENANCE WARNING! Unqualified personnel performing maintenance on the machine may void the warranty, lead to larger problems, or cause harm to the operator WARNING Following the operating and cleaning instructions in this manual will result in the most efficient results from the machine. -
Page 27: Troubleshooting
PROGRAMMING TROUBLESHOOTING PROGRAMMING To access programming, the machine should be on and not in cycle The programming buttons (Up-arrow, Down-arrow, and Select) are hidden on the display and are shown below as red outlines There is a full-size display template at the end of the manual to help locate the programming buttons Factory Setup (Model Selection) 1. - Page 28 PROGRAMMING TROUBLESHOOTING PROGRAMMING To access programming, the machine should be on and not in cycle The programming buttons (Up-arrow, Down-arrow, and Select) are hidden on the display and are shown below outlined with red dots There is a full-size display template at the end of the manual to help locate the programming buttons User Setup 1.
-
Page 29: Fault Codes
FAULT CODES TROUBLESHOOTING DISPLAY SHOWS POSSIBLE CAUSES REMEDY 1. Verify incoming water pressure is 10 ± 2 PSI. 1. Low or no water pressure. 2. Verify that fill relay is supplying voltage to fill solenoid. Replace faulty component. 2. Faulty inlet valve or fill relay. 3. - Page 30 FAULT CODES TROUBLESHOOTING DISPLAY SHOWS POSSIBLE CAUSES REMEDY 1. Verify incoming water pressure is 10 ± 2 PSI. 1. Low or no water pressure. 2. Verify that fill relay is supplying voltage to fill solenoid. 2. Faulty inlet valve or fill relay. Replace faulty component.
- Page 31 FAULT CODES TROUBLESHOOTING DISPLAY SHOWS POSSIBLE CAUSES REMEDY F12 - Not Used 1. Fully disconnect 6-pin cable at each end, and reconnect 1. Loose connection in 6-pin cable between each end until a click is heard. display board and I/O module. 2.
-
Page 32: Common Problems
COMMON PROBLEMS TROUBLESHOOTING WARNING! Inspection, testing, and repair of electrical equipment should only be performed by a qualified service technician. Many of the tests require that the machine have power to it and live electrical components be exposed USE EXTREME CAUTION WHEN TESTING THE MACHINE WARNING PROBLEM POSSIBLE CAUSES... - Page 33 COMMON PROBLEMS TROUBLESHOOTING WARNING! Inspection, testing, and repair of electrical equipment should only be performed by a qualified service technician. Many of the tests require that the machine have power to it and live electrical components be exposed USE EXTREME CAUTION WHEN TESTING THE MACHINE WARNING PROBLEM POSSIBLE CAUSES...
-
Page 34: Parts
CONTROL BOX PARTS Control Box shown with cover (05700-004-27-52) removed WARNING: DISCONNECT POWER TO MACHINE BEFORE SERVICING DETERGENT EXHAUST FAN CONSTANT VOLTAGE RINSE-AID DISPENSER DISPENSER CONTROL CONNECTION CONNECTION CONNECTION MAXIMUM LOAD LIVE WHEN MACHINE LIVE WHEN RINSE LIVE WHEN WASH 1 AMP , 240/120 V AC POWER SWITCH IS ON VALVE IS OPEN... - Page 35 CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Timer, Universal 05945-003-75-23 Nut, Conduit Black Nylon 3/4" 05975-003-81-29 Bracket, Fuse Strip 05700-002-42-03 Fitting 05975-011-65-51 Fitting, 3/4" 90° Twist HFC 05975-004-19-42 Relay 05945-111-47-51 Fitting 05975-011-59-50 Contactor, 4-Pole 05945-004-43-74 Screw, 10-32 x 1/2" 05305-011-44-52 I/O Module 05945-004-47-81 I/O Module Kit (Not Shown)
-
Page 36: Hood
HOOD PARTS ITEM DESCRIPTION PART NUMBER Hood 05700-004-20-68 Pin, Clevis 5/16" x 1 1/4" 05315-004-07-24 Roller, Bottom Hood Lateral 09330-004-07-30 Roller, Bottom Rear 09330-004-07-29 Door Stop Block (Not Shown) 05700-004-41-95 07610-004-29-29-D... -
Page 37: Cantilever Arm
CANTILEVER ARM PARTS 07610-004-29-29-D... - Page 38 CANTILEVER ARM PARTS ITEM DESCRIPTION PART NUMBER Pivot, Cantilever Arm Right 09515-004-25-38 Pivot, Cantilever Arm Left 09515-004-25-91 Bushing, Door Pivot Outer 09330-004-26-71 Yoke Assembly 05700-004-54-74 Cotter Pin 05315-207-01-00 Yoke 05700-004-97-94 Clevis Pin, 5/16” x 1 3/8” 05315-700-01-00 Nylon Washer 05311-369-03-00 Bushing 03120-100-03-00 Nut, Hex Coupling 3/8-16...
-
Page 39: Tub
PARTS 07610-004-29-29-D... - Page 40 PARTS ITEM DESCRIPTION PART NUMBER Wash Motor See Wash Motors pg. Wash Lower Manifold Nipple 05700-021-34-84 Clamp 04730-719-18-00 Discharge Hose 05700-011-88-24 Lower Wash Manifold 05700-031-46-00 Strainer 05700-004-26-21 Standpipe Bracket 05700-004-26-24 Standpipe 05700-001-25-69 Suction Strainer 05700-001-22-23 Standpipe Lift Handle 05700-004-26-23 Standpipe Support 05700-001-27-55 Suction Strainer Bracket 05700-001-22-24...
-
Page 41: Steam Tub
STEAM TUB PARTS 07610-004-29-29-D... - Page 42 STEAM TUB PARTS ITEM DESCRIPTION PART NUMBER Wash Motor See Wash Motors Wash Lower Manifold Nipple 05700-021-34-84 Clamp 04730-719-18-00 Discharge Hose 05700-011-88-24 Lower Wash Manifold 05700-031-46-00 Strainer 05700-004-26-21 Standpipe Bracket 05700-004-26-24 Standpipe 05700-001-25-69 Suction Strainer 05700-001-22-23 Standpipe Lift Handle 05700-004-26-23 Standpipe Support 05700-001-27-55 Suction Strainer Bracket...
-
Page 43: Steam Coil
STEAM COIL PARTS ITEM DESCRIPTION PART NUMBER Complete Steam Coil Assembly 05700-004-34-98 Steam Coil Weldment 05700-004-34-97 Stand C, Steam Coil Support 05700-002-08-52 Stand D, Steam Coil Support 05700-002-08-53 Gasket, Steam Coil 05700-001-17-86 Washer, Steam Coil 05700-001-17-87 Adapter, Steam Coil Nut 05310-011-17-85 Stand A, Steam Coil Support 05700-002-08-50... -
Page 44: Frame
FRAME PARTS NOTICE Punch-outs are provided on both panels, to be used if necessary during installation Complete Display Assembly 05700-004-56-49 ITEM DESCRIPTION PART NUMBER Panel, Right 05700-004-20-80 Panel, Front 05700-004-10-02 Panel, Control 05700-004-27-88 Bullet Foot 05340-004-14-99 Panel, Left 05700-004-20-83 Nut, Thumb, 6-32 Nylon 05310-002-83-12 PCB, Digital Display 05945-004-52-53... -
Page 45: Wash & Rinse Arms
WASH & RINSE ARMS PARTS 07610-004-29-29-D... - Page 46 WASH & RINSE ARMS PARTS ITEM DESCRIPTION PART NUMBER Wash Manifold 05700-004-28-58 Rinse Manifold 05700-004-26-07 Retaining Ring, Rinse Head Bushing 05340-112-01-11 Bearing Assembly, Rinse Arm 05700-004-54-71 End-cap, Rinse Arm 05700-004-34-62 Complete Rinse Arm Assembly 05700-004-32-58 Rinse Arm 05700-004-27-62 Complete Wash Arm Assembly 05700-004-32-59 Wash Arm 05700-004-24-81...
-
Page 47: Rinse Tank
RINSE TANK PARTS Complete Assemblies 208-230 V, 14 kW 70 ◦ Rise - 05700-004-43-33 460 V, 14 kW 70 ◦ Rise - 05700-004-53-22 CAUTION! DynaTemp & DynaTemp VER machines with serial numbers before 18B354991 have the rinse CAUTION tank on the next page ITEM DESCRIPTION PART NUMBER... - Page 48 RINSE TANK PARTS Complete Rinse Tank Assembly* 05700-002-29-36 See "Heaters" page. CAUTION! DynaTemp & DynaTemp VER machines with serial numbers after 18B354991 have the rinse tank CAUTION on the previous page ITEM DESCRIPTION PART NUMBER Rinse Tank 05700-004-47-07 Locknut, 10-24 with Nylon Insert 05310-373-01-00 Washer, #10 Flat 05311-173-01-00...
-
Page 49: Heaters
HEATERS PARTS Wash Heater Rinse Heater The models covered in this manual come supplied with various heaters, depending on the characteristics of the machine. To ensure you order the correct heater for the model you are servicing, please refer to the following tables: MODEL VOLTS PHASE... -
Page 50: Motors
MOTORS PARTS Complete Assemblies (See next page for parts.) See Motor Rotation section The models covered in this manual come supplied with various wash motor assemblies (a wash motor assembly includes the wash motor and the pump end), depending on the characteristics of the machine. To ensure you order the correct wash motor assembly for the model you are servicing, please refer to the following table: MODEL VOLTS... - Page 51 MOTORS PARTS Parts (See previous page for complete assemblies.) The models covered in this manual come supplied with various wash motors (see previous page), depending on the characteristics of the machine. To ensure you order the correct parts for the model you are servicing, please refer to the following table: ITEM DESCRIPTION...
-
Page 52: Plumbing
PLUMBING PARTS Top View Injector/Vacuum Breaker Goes to top connection on rinse tank Goes to bottom connection on rinse tank To order complete assemblies: Complete Plumbing Assembly Rinse Injector Plumbing Rinse Tank Out Plumbing Rinse Tank In Plumbing 05700-004-52-71 05700-004-28-49 05700-004-52-66 05700-004-52-70 (Everything above... - Page 53 PLUMBING PARTS ITEM DESCRIPTION PART NUMBER Vacuum Breaker, 1/2" Brass 04820-003-06-13 Elbow, 90-Degree 1/2" Street Brass 04730-206-08-00 04730-002-22-56 Nipple, 1/2" Close Brass 04730-207-15-00 Gasket, Rinse Manifold 05330-003-75-91 Pressure Transducer 05945-004-17-01 Plug, 1/8" NPT Brass 04730-209-07-37 Elbow, 90-Degree 1/4" x 1/4" 04730-003-77-83 Screw, 1/4-20 x 1"...
-
Page 54: Nb Plumbing
NB PLUMBING PARTS Top View Injector/Vacuum Breaker To order complete assemblies: Complete Plumbing Assembly Rinse Injector Plumbing Inlet Plumbing Lower Plumbing 05700-004-31-51 05700-004-46-48 05700-004-30-43 05700-004-31-52 (Everything above except item 22.) 07610-004-29-29-D... - Page 55 NB PLUMBING PARTS ITEM DESCRIPTION PART NUMBER Vacuum Breaker, 1/2" Brass 04820-003-06-13 Elbow, 90-Degree 1/2" Street Brass 04730-206-08-00 Injector, Rinse Manifold 05700-004-26-98 Adapter 05700-002-29-75 04730-002-22-56 Nipple, 1/2" Close Brass 04730-207-15-00 Gasket, Rinse Manifold 05330-003-75-91 Pressure Transducer 05945-004-17-01 Plug, 1/8" NPT Brass 04730-209-07-37 Elbow, 90-Degree 1/4"...
-
Page 56: Steam Inlet Plumbing
STEAM INLET PLUMBING PARTS Click here for the Steam Booster manual. ITEM DESCRIPTION PART NUMBER Complete Assembly 05700-004-35-03 Valve, Gate 3/4" NPT, Steam 04820-100-19-00 Nipple, 3/4" NPT x 4" Long, Black Iron 04730-907-02-34 Y-Strainer, 3/4" NPT, Steam 04730-217-01-32 Nipple, Close 3/4" Black Iron 04730-907-01-00 Bracket, Plumbing Support 05700-004-37-42... -
Page 57: Steam Outlet Plumbing
STEAM OUTLET PLUMBING PARTS Click here for the Steam Booster manual. ITEM DESCRIPTION PART NUMBER Complete Assembly 05700-004-36-50 Trap, Steam, 3/4" NPT 06680-500-02-77 Nipple, 3/4" x 11" Black Iron 05700-002-21-24 Reducer, 3/4" NPT to 1/2" NPT Black Iron 04730-911-02-34 Union, 3/4" Black Iron 04730-912-01-00 Nipple, Close 3/4"... -
Page 58: Ver Plumbing
VER PLUMBING PARTS Goes to top Top View port on heat Injector/Vacuum Breaker exchanger Goes to bottom port on heat exchanger Goes to elbow on bottom port of rinse tank Goes to top port on rinse tank Goes to bottom port on rinse tank Goes to out port of valve... - Page 59 VER PLUMBING PARTS ITEM DESCRIPTION PART NUMBER Vacuum Breaker, 1/2" Brass 04820-003-06-13 Elbow, 90-Degree 1/2" Street Brass 04730-206-08-00 04730-002-22-56 Nipple, 1/2" Close Brass 04730-207-15-00 Gasket, Rinse Manifold 05330-003-75-91 Pressure Transducer 05945-004-17-01 Plug, 1/8" NPT Brass 04730-209-07-37 Elbow, 90-Degree 1/4" x 1/4" 04730-003-77-83 Screw, 1/4-20 x 1"...
-
Page 60: Plumbing Options
PLUMBING OPTIONS PARTS WATER HAMMER ARRESTOR OPTION DynaTemp/NB/VER Complete 1/2" Water Hammer Arrestor Water Arrestor, 1/2” 05700-002-64-67 06685-100-05-00 DynaTemp S Complete 3/4" Water Hammer Arrestor 05700-002-61-29 Tee, 1/2” x 1/2” x 1/2” 04730-211-27-00 Nipple, 1/2”, Close, Brass 04730-207-15-00 Tee, 3/4” x 3/4” x 1/2” Nipple, 3/4”... -
Page 61: Ver System
VER SYSTEM PARTS ITEM DESCRIPTION PART NUMBER Cover, Coil 05700-004-35-52 Solenoid, Horizontal 1" Push 04820-004-24-11 Washer, Oversized 1/4" Screw 05311-004-23-13 Plate, Pin Alignment 05700-004-40-72 Pipe, Door Interlock 05700-004-40-82 Compression Spring, 1" 05935-004-40-95 Fan, 85-236 V AC 05999-004-19-46 Top Cover Complete Assembly, VER 05700-004-40-78 Plate, Air-gap 05700-004-35-50... -
Page 62: Schematics
DYNATEMP/NB/VER 208/230 V SCHEMATICS Connection Diagram for IO Module Input Assignments Programming I1 Wash T2 T1 header I2 Cycle I3 Float I4 Rinse I5 Door/Chemicals VDC OUT Temperature Analog input AC signals DC RTN Sensor inputs L1 L2/N VDC OUT LOGIC INPUT DC RTN AC power input 24 VDC OUT / RS‐232 Relay Assignments K1 Power BLK (DC RTN) K2 Booster heater K3 Wash heater RED (+24 ... -
Page 63: Dynatemp/Nb/Ver 460 V
DYNATEMP/NB/VER 460 V SCHEMATICS Connection Diagram for IO Module Input Assignments Programming I1 Wash T2 T1 header I2 Cycle I3 Float I4 Rinse I5 Door/Chemicals VDC OUT Temperature Analog input AC signals DC RTN Sensor inputs L1 L2/N VDC OUT LOGIC INPUT DC RTN AC power input 24 VDC OUT / RS‐232 Relay Assignments K1 Power BLK (DC RTN) K2 Booster heater K3 Wash heater RED (+24 ... -
Page 64: Dynatemp Steam
DYNATEMP STEAM SCHEMATICS Connection Diagram for IO Module Input Assignments Programming I1 Wash T2 T1 header I2 Cycle I3 Float I4 Rinse I5 Door/Chemicals VDC OUT Temperature Analog input AC signals DC RTN Sensor inputs L1 L2/N VDC OUT LOGIC INPUT DC RTN AC power input 24 VDC OUT / RS‐232 Relay Assignments K1 Power BLK (DC RTN) K2 Booster heater K3 Wash heater RED (+24 VDC) K4 Varies by model K5 Varies by model K6 Varies by model... -
Page 65: I/O Module
I/O MODULE SCHEMATICS Connection Diagram for IO Module 05945-004-47-81 Input Assignments Programming I1 Wash T2 T1 header I2 Cycle I3 Float I4 Rinse I5 Door/Chemicals VDC OUT Temperature Analog input AC signals DC RTN Sensor inputs L1 L2/N VDC OUT LOGIC INPUT DC RTN AC power input... -
Page 66: Addendum
DISPLAY TEMPLATE ADDENDUM This page can be printed and the display templates cut-out. Lay the cut-out over the display and use the Up-arrow, Down- arrow, and Select Buttons to locate the hidden programming buttons. 07610-004-29-29-D... - Page 68 Jackson WWS, Inc. • 6209 N. US Hwy 25E • Gray, KY 40734 USA 1.888.800.5672 • www.jacksonwws.com DynaTemp Manual • 07610-004-29-29-D...
