Motorized FlexShade
Motor Operated Window Shades with Several Control Options

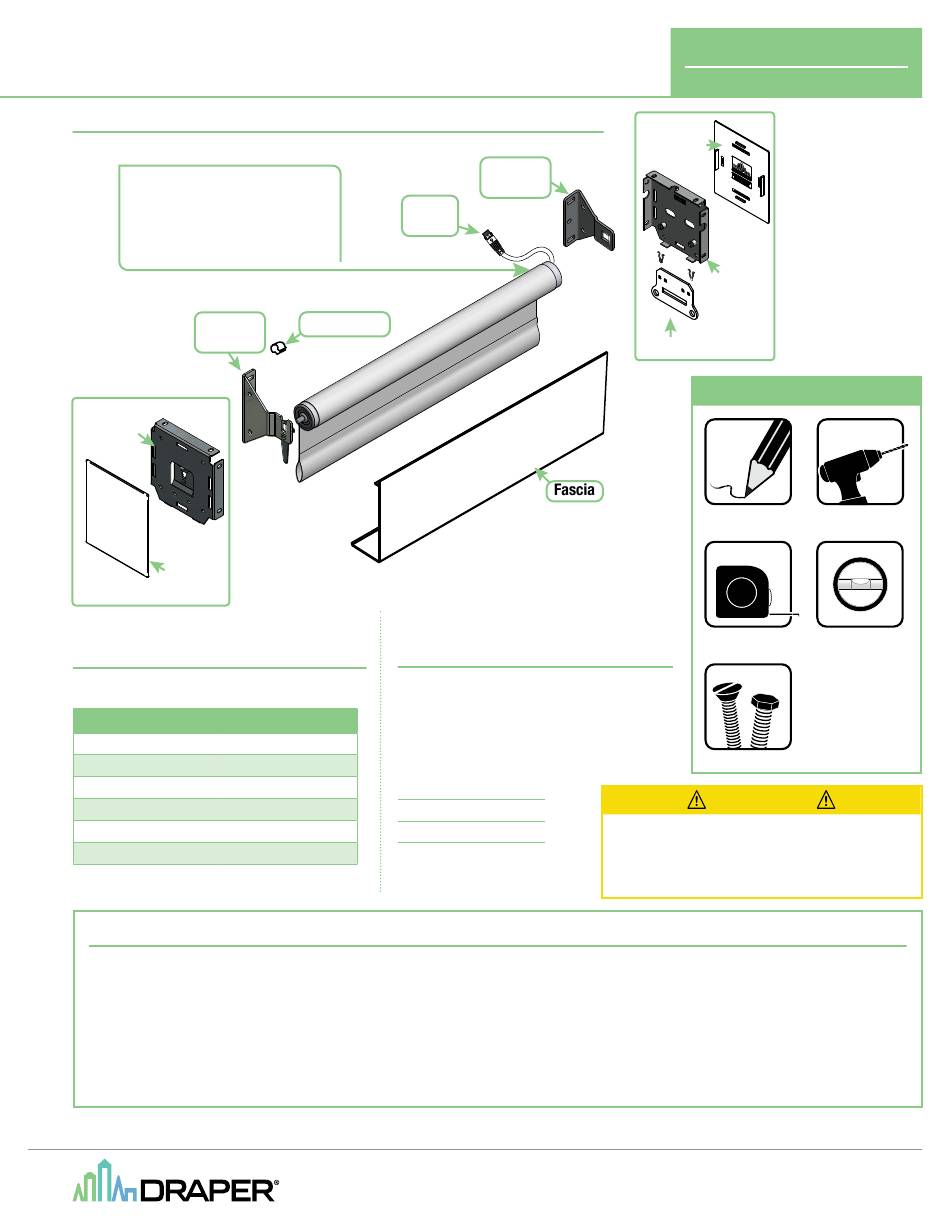

Overview - Motorized FlexShade Components
FlexShade Motor
120V Standard AC Motor
120V RTS AC Motor
120V RS485 Intelligent AC Motor
Brackets
Only (L)
Endcap (L)
for Fascia
Endcap
Cover (L)
Section 1 - Motor Types, Names
and Voltage
These instructions apply to all Draper medium duty
motorized window shades using the following motors:
MOTOR NAME
MOTOR VOLTAGE
Sonesse 50
120VAC
Sonesse Ultra 50
120VAC
Sonesse RTS
120VAC
Sonesse RTS Ultra
120VAC
Sonesse RS485
120VAC
Sonesse RS485 Ultra
120VAC
Contents
Motorized FlexShade Components ................................................1
Warnings and Safety Information ...................................................2
Field Adjustments, Cleaning and Maintenance .............................2
Section 1
Motor Types, Names and Voltage...................................................1
Section 2
Mounting Brackets
Section 3
Endcaps with Fascia ........................................................................3
Section 4
(3 options)
M12
Cable
Retainer Clip
Section 2 - Optional Hardware
Optional light gap reduction hardware
may be included with the Motorized FlexShade
Light gap reduction hardware is provided in
stock lengths unless otherwise specified. It is
the installers responsibility to measure, cut and
properly install this hardware in a manner that does
not interfere with shade operation.
'L' Angle
'U' Channel
'H' Channel
.........................3
®
Brackets
Only (R)
Accessories for
Light Gap Reduction
(listed below)
Read and understand all warnings
(Page 2 of this document)
Section 5
Section 6
Electrical Connections ....................................................................4
Section 7
Limit Switch Adjustments ..............................................................5
120V Components, Motors and Controls .......................................6
Section 7
RTS Components, Motors and Controls ........................................7
Section 8
RS485 Components, Motors and Controls ....................................8
Section 9
INSTRUCTIONS
INSTALLATION & OPERATION
Endcap
Cover
(R)
Endcap (R)
for Fascia
Motor Mounting Plate
TOOLS REQUIRED
POWER DRILL
PENCIL
TAPE MEASURE
LEVEL
®.
HARDWARE
(by others)
CAUTION
beginning installation.
If you have any difficulties installing or servicing your
Motorized FlexShade, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FSMO_Inst18
© 2018 All Rights Reserved
before

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motorized FlexShade and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper Motorized FlexShade

  • Page 1 Section 4 If you have any difficulties installing or servicing your Motorized FlexShade, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FSMO_Inst18 © 2018 All Rights Reserved...
  • Page 2 Do not affix the unit to wall or ceilings that have inadequate strength to permanently hold the unit during use. It is the owner’s and installer’s responsibility to confirm the wall or ceiling to which the unit attaches is sufficient to permanently hold the weight and stress loads of the unit at all times. Draper, Inc., is not responsible for improper installation, application, testing or workmanship related to the product at place of installation.
  • Page 3: Section 4 Endcaps With Fascia

    Motorized FlexShade ® page 3 of 8 Section 3 - Mounting Brackets (Brackets Only Installation) 1. Mark wall, jamb or ceiling for placement of mounting brackets. CEILING MOUNTING BRACKETS Caution: Before mounting shades, verify measurements on the card provided with IDLER the shade, and ensure the brackets are installed at the correct width.
  • Page 4: Section 5 Surface Headbox Or Pocket Headbox

    (es) (es) diagram, and wiring should comply with national and local electrical codes. DO NOT wire motors in parallel without written permission from Draper. All operating switches should be “off” before power is connected. Please Note: For low voltage wiring requirements, Draper recommends consulting with a professional low voltage electrical contractor.
  • Page 5: Section 7 Limit Switch Adjustments

    Motorized FlexShade ® Front page 5 of 8 Section 7 - Limit Switch Adjustments Back Section 7.1 - Standard and Quiet Motors (All procedures shown are for Standard Roll. Invert orientation for Reverse Roll) Section 7.1.1- Push Button Limits PUSH BUTTON LIMITS...
  • Page 6 NOTE: Test shade operation 120V If shade direction does not MOTOR correspond with the switch Please Note: A Draper Motor Test Cable and M12 Pigtail (Part# 503109) (Part# C107.089.60) orientation, turn power back are recommended for temporary power for testing and limit setting.
  • Page 7: Section 8 Rts Components, Motors And Controls

    Endcap Controls & System Overview Cover (L) Sonesse RTS 120VAC Motors MOTOR 120V Please Note: A Draper Motor Test Cable and M12 Pigtail (Part# 503109) (Part# C107.089.60) are recommended for temporary power for testing and limit setting. M12 Connector Telis 1...
  • Page 8: Section 9 Rs485 Components, Motors And Controls

    Endcap Controls & System Overview Cover (L) Sonesse RS485 120VAC Motors Bus Power Supply Please Note: A Draper Motor Test Cable (Part# 503109) and M12 Pigtail (Part# C107.089.60) 110V Outlet are recommended for temporary power for testing and limit setting.
