FlexStyle
Cassette Motorized Zigbee
®
MOTORIZED AC
Motorized window shade with cassette-style case

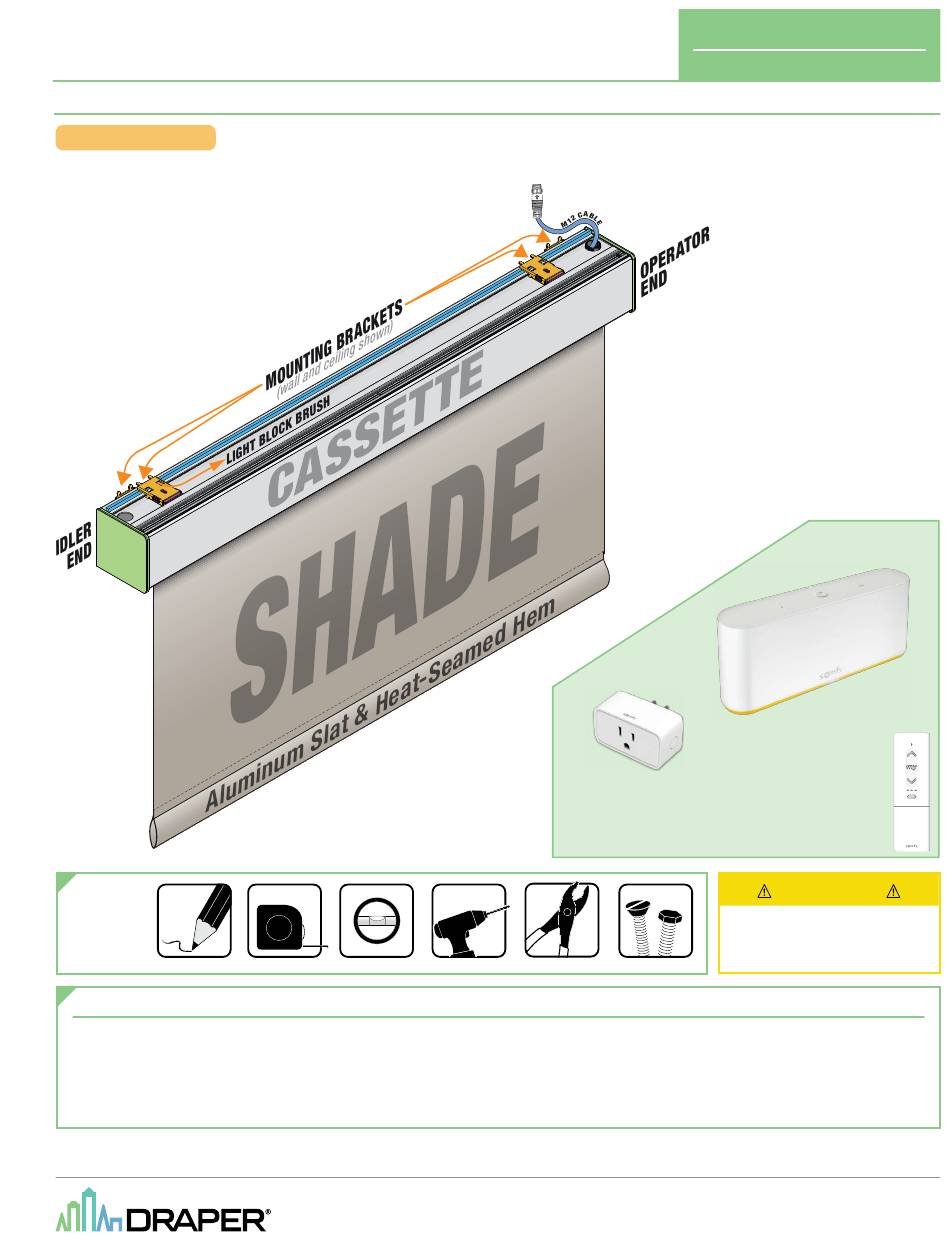

Overview - Components
FSTYL CASS MO
TOOLS
REQUIRED
PENCIL
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Safety & Installation Information ........................2
PLEASE READ - Field Adjustments, Cleaning and Maintenance ...................2
Section 1 - Installing Mounting Brackets ..........................................................3
Section 2 - Wall Mounting Shade........................................................................4
Section 3 - Ceiling Mounting Shade ...................................................................4
(Square Cassette, Elliptical Style Hem Bar shown)
TAPE MEASURE
LEVEL
SMART PLUG
(Used with the
Tahoma switch "hub"
in standard Zigbee
installations.)
PLIERS
POWER DRILL
Section 4 - Electrical Connections .....................................................................5
Section 5 - Cable Exit ...........................................................................................5
Section 7 - WIring Diagrams ...............................................................................7
Section 8 - Cassette Dimensions .......................................................................7
Section 9 - Shade Dimensions ............................................................................8
© 2024 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
Zigbee installations.)
YSIA REMOTE
(Used in conjunction
with the Tahoma switch
"hub" in standard
Zigbee installations
or in the "hubless"
installation option.)
CAUTION
Read and understand
all warnings before
beginning installation.
HARDWARE
(by others)
......................................6
®
If you have any difficulties installing or servicing your
Motorized FlexStyle Cassette, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FlexStyle_Cassette_MOZ_Inst24
