LightBloc FlexShade
Motorized or manual shade with fabric retention system for room darkening and privacy.

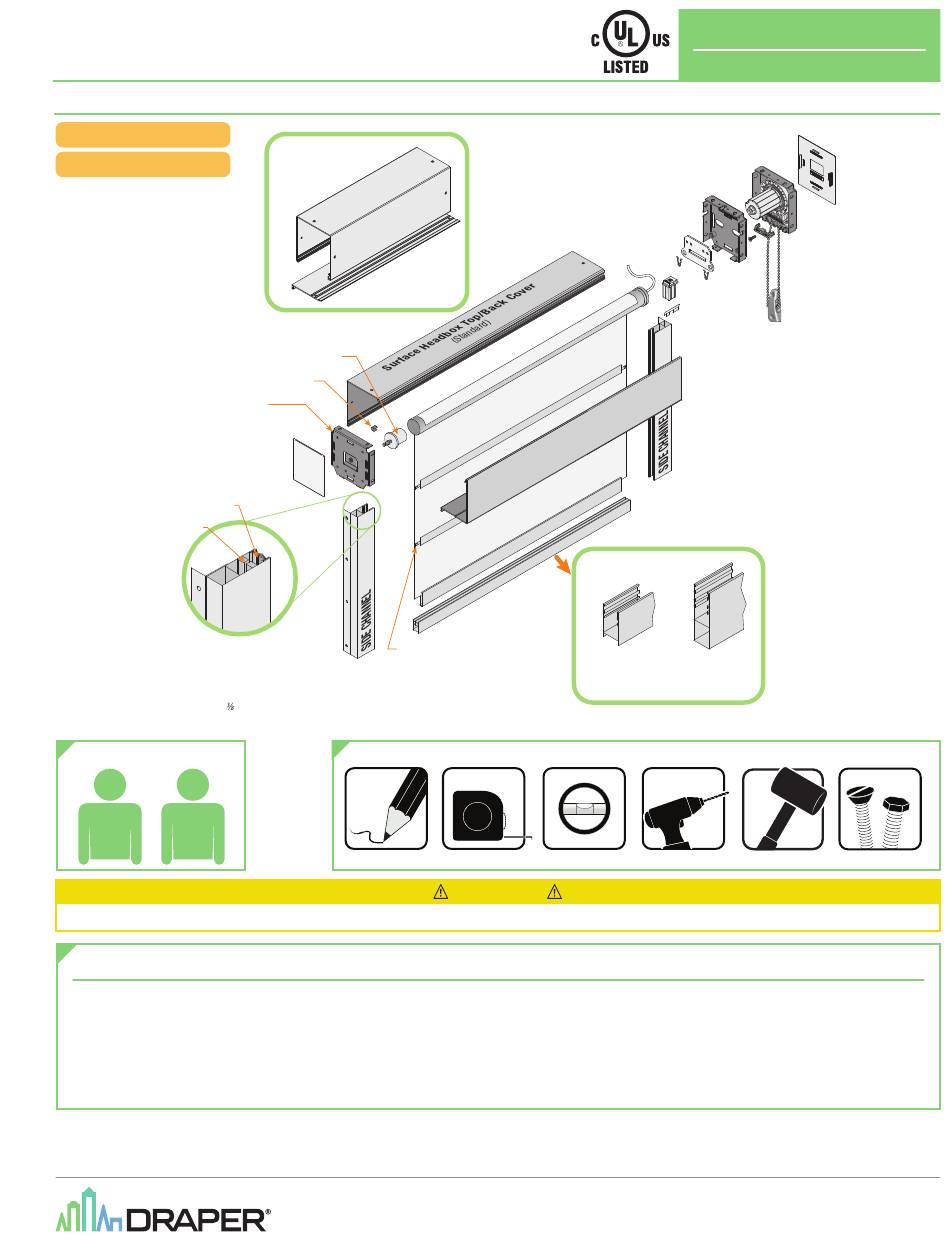

Overview - Components
LIGHTBLOC CL
LIGHTBLOC MO
Idler endcap
(Fastens to ceiling,
face or jamb)
Channel
Liner
Fabric
Retainer
Side channel - Includes ¾" x 1"
adjustable mounting angles
(19mm x 25mm)
Mounting angles provided for"Inside" or "Jamb"
mount installations. For "Face Mount" applications,
Draper provides " (10mm) access holes in side
channels with plastic plug covers.
