Using Other Maestro Tabs - ZeeVee HDbridge3000 Configuration Manuals

Using other Maestro tabs

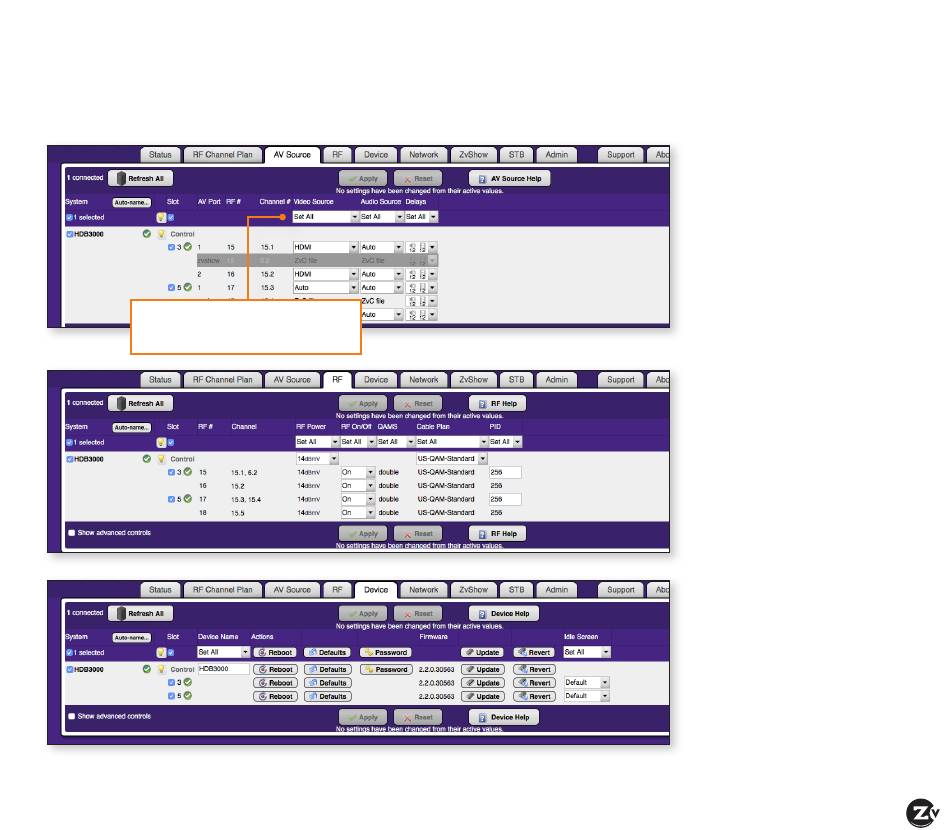

Click on any other Maestro tab to configure your unit as needed. We provide brief information below. Please click on the Help
button on each tab or refer to the Support section of our website for further detail on configuration options.
Group Action bar allows you to set
configuration for all selected units
actively managed on your network.
AV Source tab
Allows for specifying audio
and video inputs and adjusting
settings such as Delayed
Audio Out (for matching audio
to external audio systems).
RF tab
Allows you to change the
RF power output. You can
also change from QAM256
to QAM64 and from QAM
Standard to HRC or IRC.
Device tab
Allows you to change the
device password and update
firmware as well as configure
Emergency Alerts System
(EAS). For more information,
refer to the EAS application
note in the Support section
on our website.
H D br id ge3 00 0 Co nf i gura t io n G ui de
|
Pag e 11
