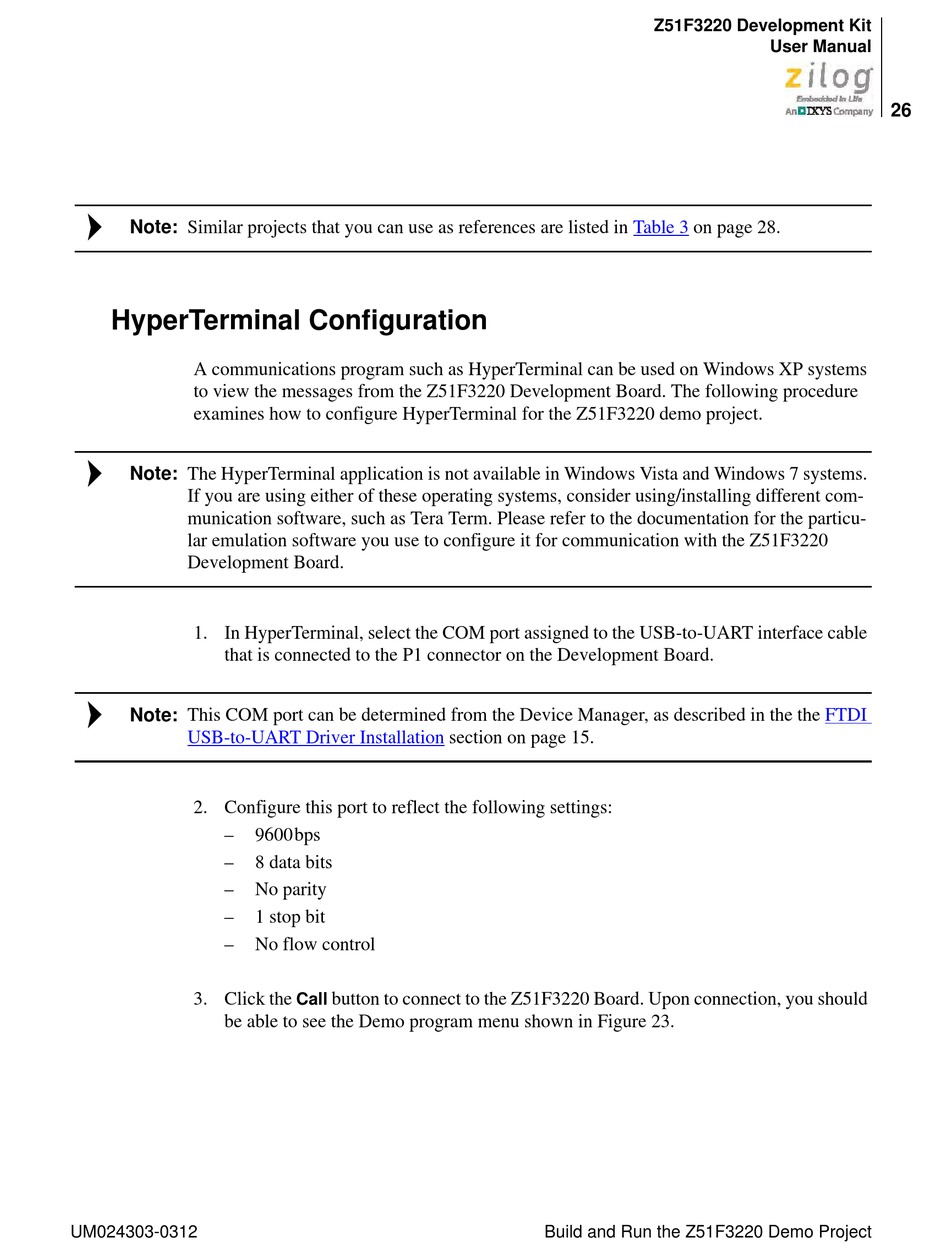

HyperTerminal Configuration
A communications program such as HyperTerminal can be used on Windows XP systems
to view the messages from the Z51F3220 Development Board. The following procedure
examines how to configure HyperTerminal for the Z51F3220 demo project.
Note:
The HyperTerminal application is not available in Windows Vista and Windows 7 systems.
If you are using either of these operating systems, consider using/installing different com-
munication software, such as Tera Term. Please refer to the documentation for the particu-
lar emulation software you use to configure it for communication with the Z51F3220
Development Board.
1. In HyperTerminal, select the COM port assigned to the USB-to-UART interface cable
that is connected to the P1 connector on the Development Board.
Note:
This COM port can be determined from the Device Manager, as described in the the
USB-to-UART Driver Installation
2. Configure this port to reflect the following settings:
–
–
–
–
–
3. Click the
be able to see the Demo program menu shown in Figure 23.
UM024303-0312
9600 bps
8 data bits
No parity
1 stop bit
No flow control
Call
button to connect to the Z51F3220 Board. Upon connection, you should
section on page 15.
Build and Run the Z51F3220 Demo Project
Z51F3220 Development Kit
User Manual
Table 3
on page 28.
