Configure the Z8051 OCD and Z51F3220
Development Board
Observe the following procedure to set up and configure the Z8051 On-Chip Debugger
and the Z51F3220 Board.
Caution:
Steps number 1 to 4 present the power-up sequence. Carefully follow these steps to avoid
encountering an improper connection or disconnection.
1. Connect the Z8051 On-Chip Debugger (OCD) to the host PC's USB port.
2. Connect one end of the 10-circuit cable to the Z8051 OCD.
3. Connect the other end of the 10-circuit cable connector to the Z51F3220 Board's J1
connector. Pin 1 of the cable connector is indicated by a red stripe, as shown in
Figure 13.

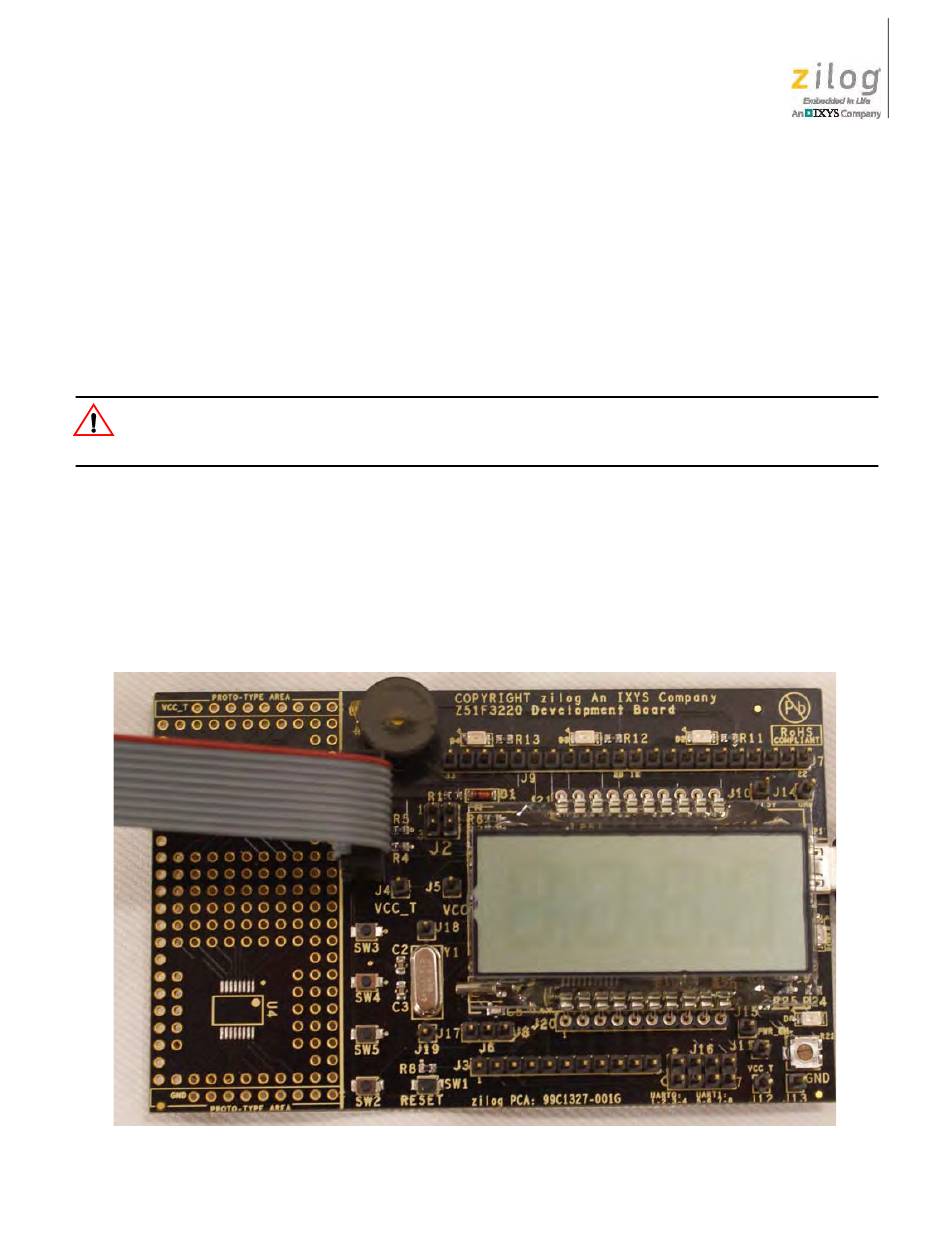

Figure 13. Connecting the 10-Circuit Cable to the Board
UM024303-0312
Configure the Z8051 OCD and Z51F3220 Development
Z51F3220 Development Kit
User Manual
17
