Appendix B. OCD Driver Installation on
Windows XP Systems
The driver programs for the Z8051 On-Chip Debugger are copied during the software and
documentation installation. In the following procedure for Windows XP systems, ensure
that the target side of the OCD will remain unconnected while you install these drivers.
1. Connect the OCD hardware to the USB port of your PC by connecting the A-Male end
of one of the two USB A (male)-to-Mini-B cables with the host PC's USB port, and
connect the Mini-B end to the OCD device.
2. After the PC detects the new hardware, it will display the
ard
(Advanced)

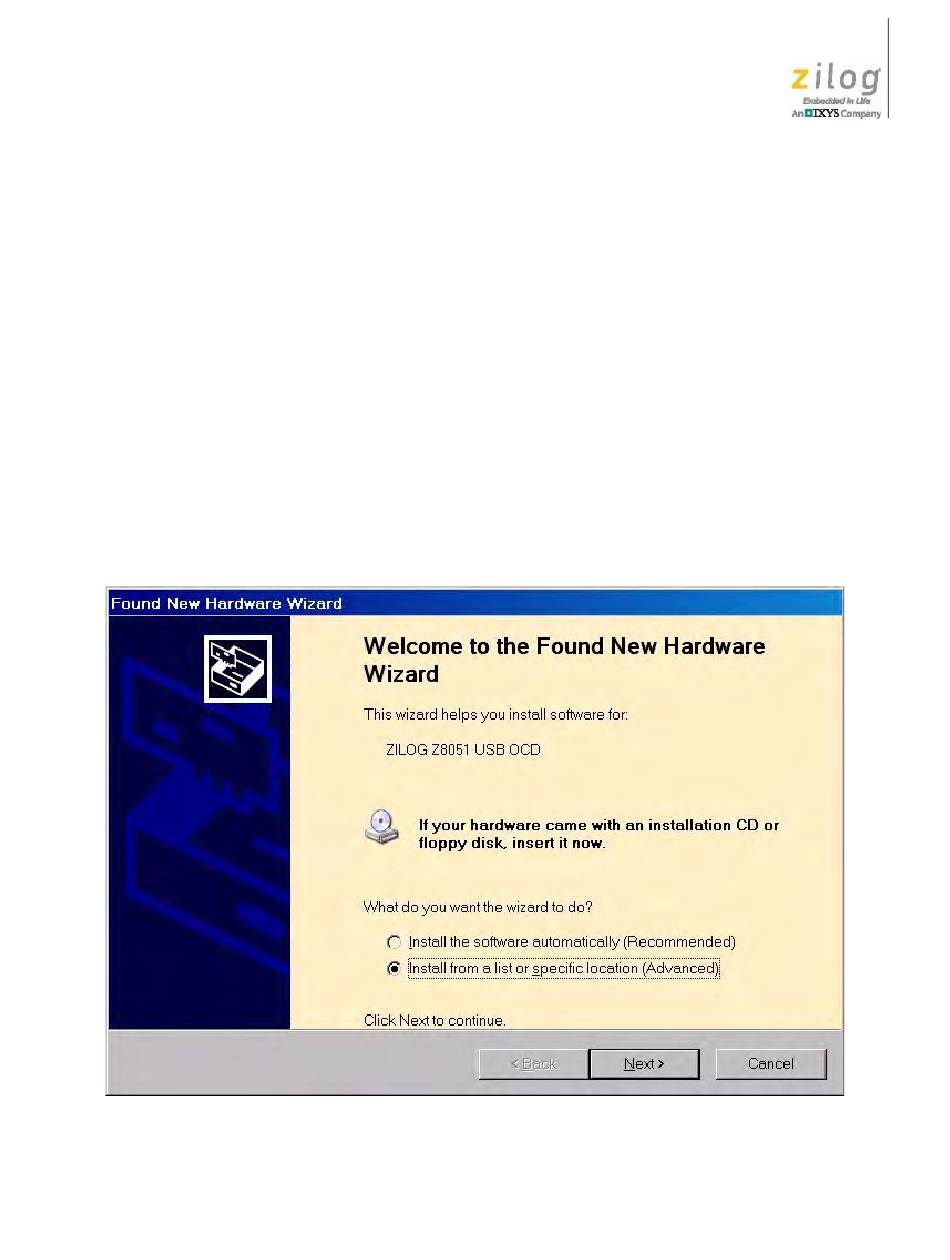

Figure 29. The Found New Hardware Wizard Welcome Screen
UM024303-0312
dialog box, shown in Figure 29. Select
; then click
Next
Install from a list or specific location
.
OCD Driver Installation on Windows XP Systems
Z51F3220 Development Kit
User Manual
Found New Hardware Wiz-
34
