USB interface providing power and communication to the Board through adjustable
LD0: U5
•
Power supply level that can be adjusted with potentiometer R22
•
Overcurrent protection circuit on the Board: U6 and D6
•
External source of reference voltage (2.5 V) for the on-chip ADC: VR1
•
MCU current consumption measurement resistor R7 with test points J4 and J5
•
Buzzer: U1
•
4-digit, 7-segment LCD panel
•
Test points, headers and prototype area with two footprints
OCD Connector J1

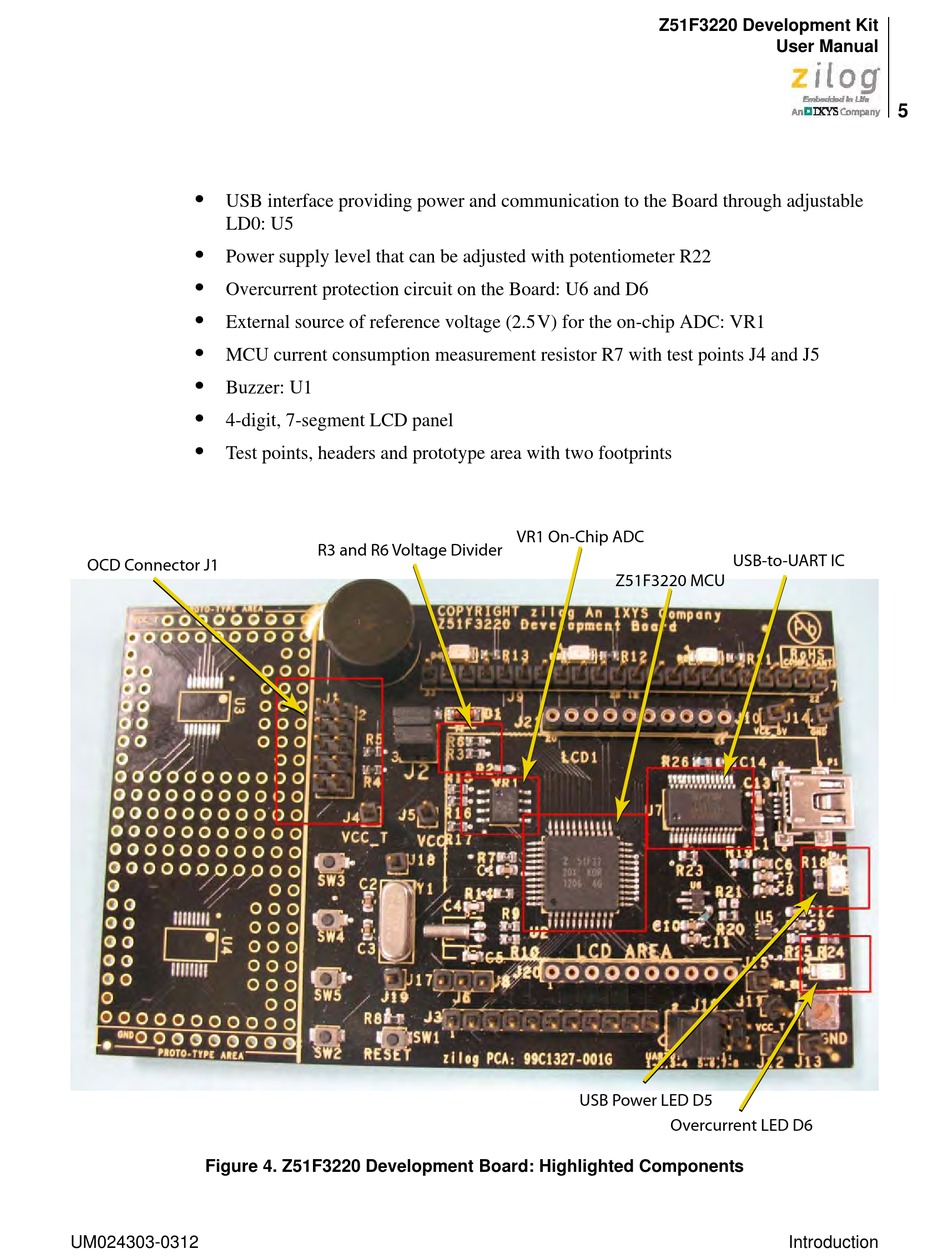

Figure 4. Z51F3220 Development Board: Highlighted Components

UM024303-0312
R3 and R6 Voltage Divider
Z51F3220 Development Kit
VR1 On-Chip ADC
Z51F3220 MCU
USB Power LED D5
Overcurrent LED D6
User Manual
5
USB-to-UART IC
Introduction
