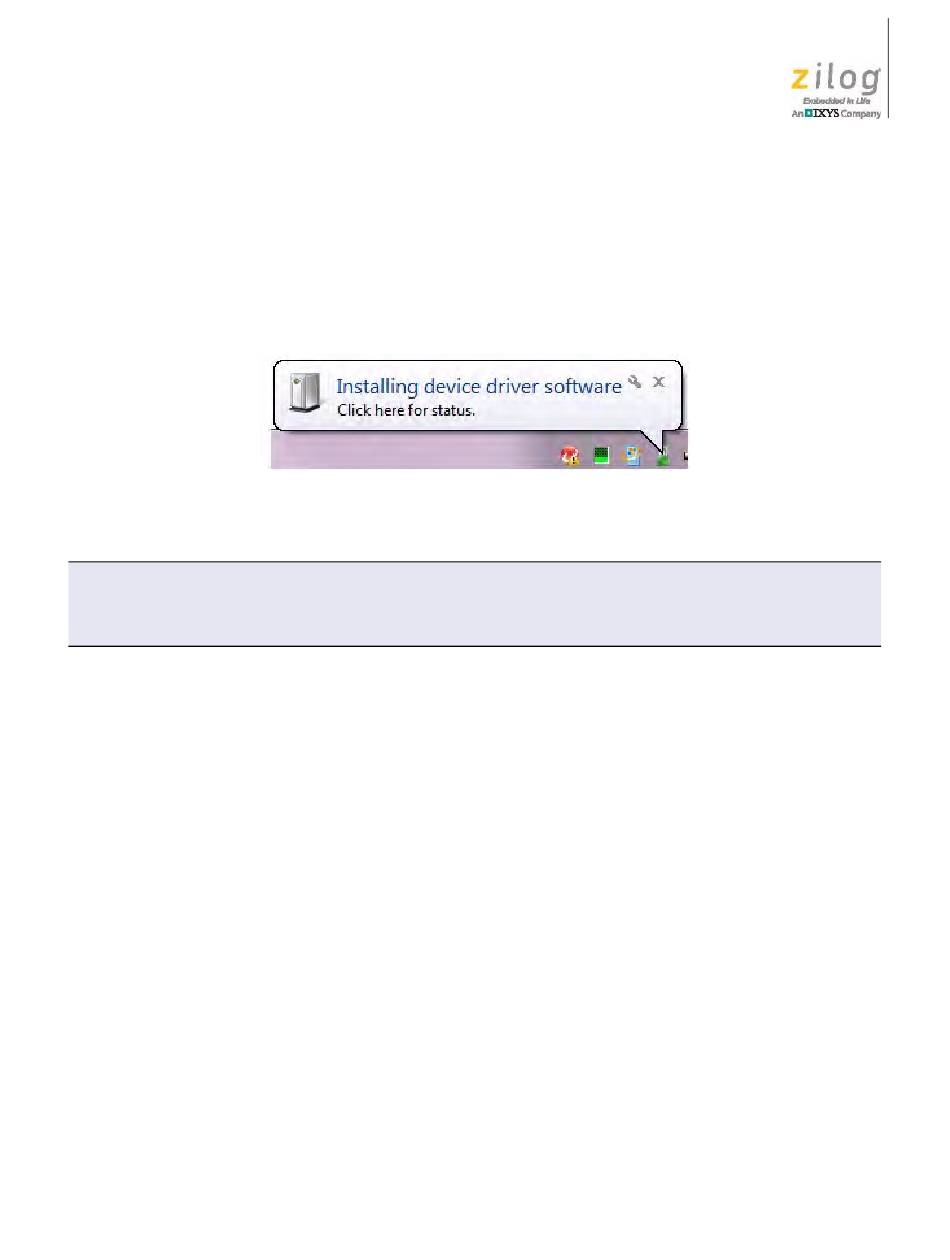

Figure 5. Install Device Driver Dialog, Windows 7 - ZiLOG Z8051 Series User Manual

1. Connect the OCD hardware to the USB port of your PC by connecting the A (male)
end of one of the two USB A (male)-to-Mini-B cables with the host PC's USB port.
Connect the Mini-B end to the OCD device.
2. After the PC detects the new hardware, it will display the Installing device driver soft-
ware dialog shown in Figure 5.
IMPORTANT NOTE:
your mouse on ZILOG OCD I/F
and select
Update Driver Software...
3. Select
shown in Figure 6, which prompts you to key in or browse for the location of the
file. Depending on the type of computer you use (32- bit or 64-bit), use the
button to navigate to one of the following paths, then click the
–
–
UM024303-0312

Figure 5. Install Device Driver Dialog, Windows 7

If you should encounter the scenarios presented in Figures 9 or 10, right-click
(highlighted in Figure 9) or
Browse my computer for driver software (advanced)
On 32-bit machines, use the following path:
<Z8051 Installation>\Z8051_<version_number>\device drivers\OCD USB\x32
On 64-bit machines, use the following path:
<Z8051 Installation>\Z8051_<version_number>\device drivers\OCD USB\x64
Z51F3220 Development Kit
Unknown device
Install the Z8051 OCD Software and Documentation
User Manual
(highlighted in Figure 10)
to display the dialog
.inf
Browse
button.
Next
8
