Fuel Tank & Bumper Group - Simplicity Colt ZT2148 Parts Manual

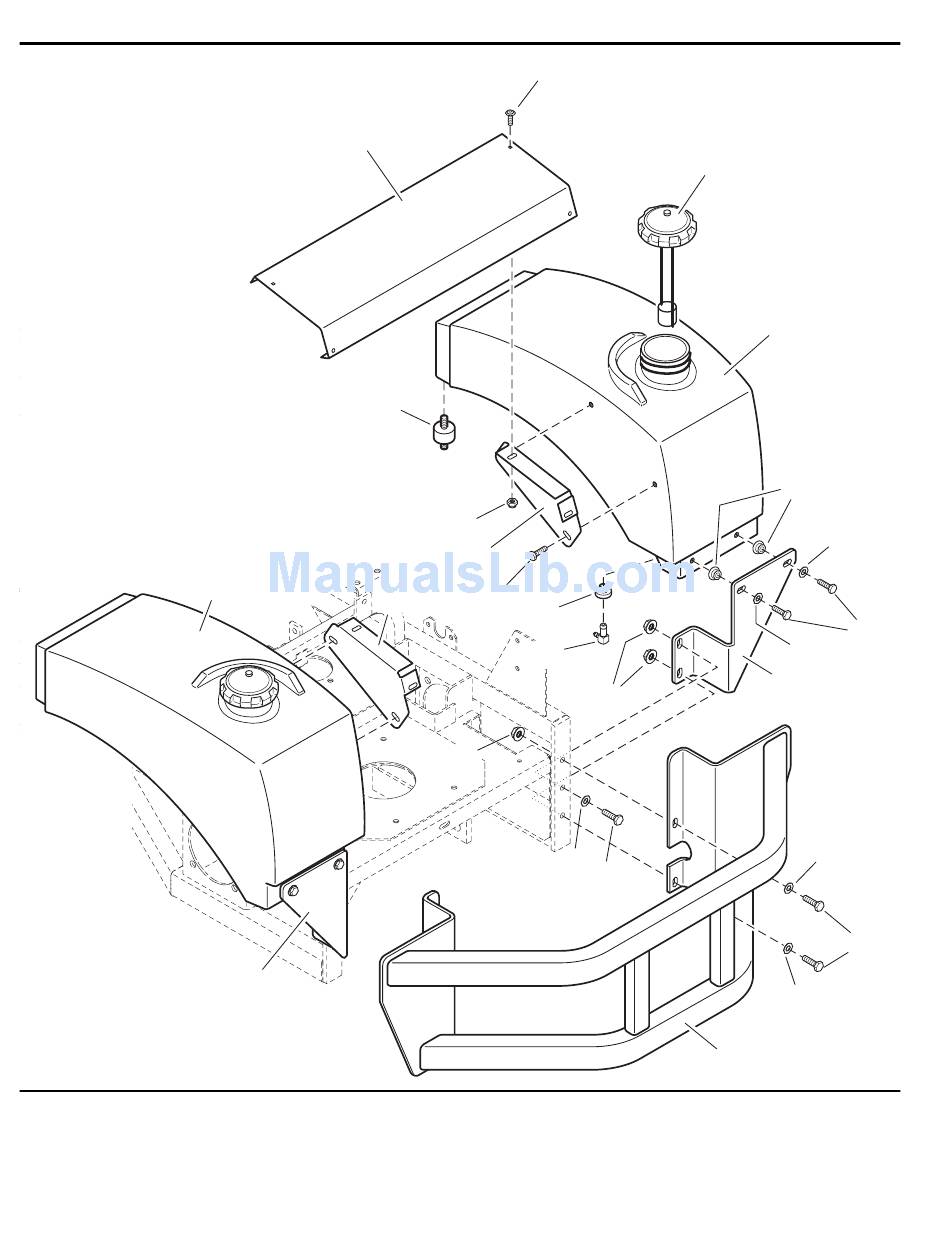

Fuel Tank & Bumper Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Model Nos.:
ZT2148
ZT2148B
ZT2148K
ZT2352
ZT2352B
ZT2352K
© Copyright 2003 Ferris Industries. All Rights Reserved.
1
21
22
20
Colt 21 HP Briggs & Stratton Rider w/ 48" Mower
Colt 21 HP Briggs & Stratton Rider w/ 48" Mower
Colt 21 HP Kohler Rider w/ 48" Mower
Colt 23 HP Briggs & Stratton Rider w/ 52" Mower
Colt 23 HP Briggs & Stratton Rider w/ 52" Mower
Colt 23 HP Kohler Rider w/ 52" Mower
2
5
6
7
8
9
10
15
16
12
3
15
17
19
TP 400-7034-01-CT-D
