Simplicity 1725764 Operator's Manual
  1. Manuals
  2. Brands
  3. Simplicity Manuals
  4. Lawn Mower
  5. 1725764
  6. Operator's manual
Simplicity 1725764 Operator's Manual

Simplicity 1725764 Operator's Manual

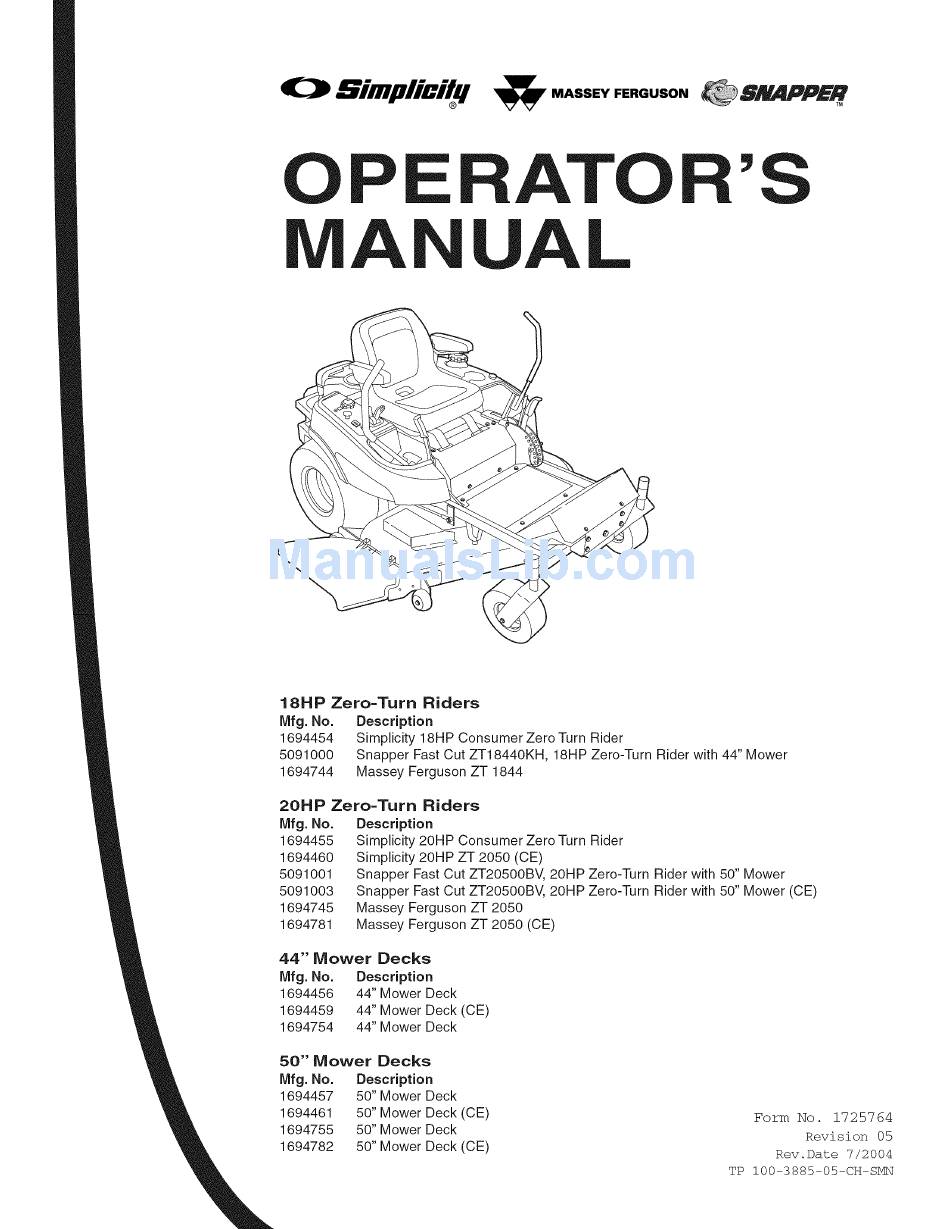

18hp, 20hp zero-turn riders
Hide thumbs
Table of Contents

Advertisement

Quick Links

0
5i_p/iA._il_
!'
_
MASSEV
FERGUSON
O
A
ATO
UAL
18HP
Zero=Turn
Riders
IVlfg. No.
Description
1694454
Simplicity 18HP Consumer Zero Turn Rider
5091000
Snapper Fast Cut ZT18440KH,
18HP Zero-Turn Rider with 44" Mower
1694744
Massey Ferguson ZT 1844
20HP
Zero=Turn
Riders
Mfg. No.
1694455
1694460
5091001
5091003
1694745
1694781
Description
Simplicity 20HP Consumer Zero Turn Rider
Simplicity 20HP ZT 2050 (CE)
Snapper Fast Cut ZT20500BV, 20HP Zero-Turn Rider with 50" Mower
Snapper Fast Cut ZT20500BV, 20HP Zero-Turn Rider with 50" Mower (CE)
Massey Ferguson ZT 2050
Massey Ferguson ZT 2050 (CE)
44"
Mower
Decks
IVlfg. No.
Description
1694456
44" Mower Deck
1694459
44" Mower Deck (CE)
1694754
44" Mower Deck
50"
Mower
Decks
IVlfg. No.
Description
1694457
50" Mower Deck
1694461
50" Mower Deck (CE)
1694755
50" Mower Deck
1694782
50" Mower Deck (CE)
Form
No.
1725764
Revision
05
Rev.
Date
7/2004
TP
100-3885-05-CH-SMN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1725764 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplicity 1725764

Summary of Contents for Simplicity 1725764

  • Page 1 1694460 Simplicity 20HP ZT 2050 (CE) 5091001 Snapper Fast Cut ZT20500BV, 20HP Zero-Turn Rider with 50" Mower 5091003 Snapper Fast Cut ZT20500BV, 20HP Zero-Turn Rider with 50" Mower (CE) 1694745 Massey Ferguson ZT 2050 1694781 Massey Ferguson ZT 2050 (CE) 44"...

  • Page 2: Table Of Contents

    (ableof Coflteflts Safety Rules & information ......... Troubleshooting, Adjustments & Service ..21 identification Numbers ........Troubleshooting the Rider ........21 Safety Decals ............Troubleshooting the Mower ........22 Safety icons ............Seat Adjustments ..........Safety Interlock System ........Ground Speed Control Lever Adjustment ..... 23 Features &...

  • Page 3: Safety Rules & Information

    Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
  • Page 4 SafetyRules andinformation SLOPE OPERATION , WARNING Slopes are a major factor related to loss-of-control and tip- Never operate on slopes greater than 17.6 percent over accidents, which can result in severe injury or death. (10 °) which is a rise of 3-1/2 feet (106 cm) vertically in Operation on all slopes requires extra caution, if you cannot 20 feet (607 cm) horizontally.
  • Page 5 SafetyRules andInformtm SERVICE AND MAINTENANCE Safe Handling of Gasoline 1. Extinguish all cigarettes, cigars, pipes, and other 13. If the fuel tank must be drained, it should be drained outdoors. sources of ignition. 2. Use only approved gasoline containers. 14. Replace faulty silencers/mufflers. 3.

  • Page 6: Identification Numbers

    IdentWcation Numbers ID Tag Mower iD Tag North American SERIAL Models 169XXXX Mfg. Ng'._N_ ' 109XXXX CE Models L<ji J, xxxx I _-__;_=C'I Engine RPM _/3( Model Description Name/Number Vijb:aattiio°nn @ sWelet,,e'_,_ Unit MFG Number Unit SERIAL Number Port Washington,Wl USA 53_/ XXXXXXX When contacting your authorized...

  • Page 7: Safety Decals

    Safety Decals SAFETY DECALS This unit has been designed and manufactured to pro- All DANGER, WARNING, CAUTION and instructional vide you with the safety and reliability you would expect messages on your rider and mower should be carefully from an industry leader in outdoor power equipment read and obeyed.

  • Page 8: Safety Icons

    SafetyIcons & Inteplock System SAFETY ICONS Warning: Read Operator's SAFETY INTERLOCK Manual. SYSTEM Read and understand the Operator's Manual before using this machine. This unit is equipped with safety interlock switches. These safety systems are present for your safety, do Danger: Thrown Objects.

  • Page 9: Control Functions

    Features & Conlrols CONTROL FUNCTIONS The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing require the combined use of several controls appfied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section. Throttle Control Ground...

  • Page 10: Features & Controls

    Features & Controls ignition Switch Fuel Tank & Gauge The ignition switch starts and stops the engine; it has To remove the cap, turn counterclockwise. The fuel three positions: gauge is mounted in the fuel tank and indicates the amount of fuel in the tank. _OFF Stops the engine and shuts off the electrical system.

  • Page 11: Operation

    Operation GENERAL OPERATING SAFETY CHECKS BEFORE STARTING Before first time operation: Check that the crankcase is filled to full mark on dip- stick. See the engine owner's manual for instructions Be sure to read all information in the Safety and and oil recommendations.

  • Page 12: Starting The Engine

    Operation AWARNING 5. Engage the PTO by pulling up on the switch. 6. Disengage the parking brake. If you do not understand how a specific control 7. Move the ground speed control levers from neutral functions, or have not yet thoroughly read the position to operating position (in toward the operator).

  • Page 13: Zero Turn Driving Practice

    Operatm ZERO TURN Smooth Travel DRIVING PRACTICE The lever controls of the zero turn rider are The lever controls of the zero turn rider are responsive, responsive. and learning to gain a smooth and efficient control of the The BEST method of rider's forward, reverse, and turning movements will take handling the ground some practice.
  • Page 14 Operation Practice Turning Around a Corner Practice Turning In Place While traveling forward allow one handle to gradually To turn in place, "zero turn," gradually move one ground return back toward neutral. Repeat several times. speed control lever forward from neutral and one lever back from neutral simultaneously.

  • Page 15: Attaching A Trailer

    Operatm ATTACHING A TRAILER The maximum weight of a towed trailer should be less than 200 Ibs (91 kg). Secure the trailer with an appropri- ately sized clevis pin (A, Figure 9) and clip (B). Excessive towed loads can cause loss of traction and loss of control on slopes.

  • Page 16: Mower Removal & Installation

    Operation FRONT Figure 10. Mower Belt Routing A. Arbor Pulleys B. Back-Side Idlers C. PTO Pulley D. Belt Tension Release Lever MOWER REMOVAL iNSTALLATiON NOTE: Perform mower installation and removal on a hard flat surface such as a concrete floor. Removal 1.

  • Page 17: Regular Maintenance

    MAINTENANCE SCHEDULE & PROCEDURES The following schedule should be followed for normal care of your rider and mower. You will need to keep a record of your operating time. Determining operating time is easily accomplished by observing the elapsed time recorded by the hour meter.

  • Page 18: Lubrication

    ReguJap M aJflteflaflce LUBRiCATiON Lubricate the unit at the following lubrication points as well as those shown in Figure 12. Oil: Grease: * control handle pivots * discharge chute hinge • roller straps (deck lift pivots) * front caster wheel axles •...

  • Page 19: Servicing The Mower Blades

    RegularMaJflteflaflce WARNING For your personal safety, do not handle the sharp mower blades with bare hands. Careless improper handling of blades may result in serious injury. WARNING For your personal safety, blade mounting capscrews must each be installed with a LOOSEN hex/spline washer and spring...

  • Page 20: Checking Tire Pressures

    RegularMaintenance CHECK TIRE PRESSURES Tire pressure should be checked periodically, and main- tained at the levels shown in the chart. Note that these pressures may differ slightly from the "Max Inflation" stamped on the side-wall of the tires. The pressures shown provide proper traction, improve cut quality, and extend tire life.

  • Page 21: Transmission Oil Filter Change

    RegWPMaintenance 3. Add oil up to the full mark (D, Figure 18). 4. Reinstall the reservoir cap, move the locking tab between two notches, and tighten the locking cap- screw. TRANSMiSSiON OiL FILTER CHANGE Change Interval: Every 250 Hours Filter Part Number: 1719168 1.

  • Page 22: Troubleshooting, Adjustments & Service

    & Service TROUBLESHOOTING , WARNING While normal care and regular maintenance will extend To avoid serious injury, perform maintenance the life of your equipment, prolonged or constant use the rider or mower only when the engine is may eventually require that service be performed to allow stopped and the parking brake engaged.

  • Page 23: Troubleshooting The Mower

    Troubleshooting, Adjustmflts, & Service Rider Troub/eshooting Continued. CAUSE REMEDY PROBLEM 1. Hydraulic release valve(s) 1. Turn valve(s) clockwise to close. Engine runs, but rider will not drive. in "open" position. Belt is broken. 2. See Drive Belt Replacement. Drive belt slips. 3.

  • Page 24: Seat Adjustments

    TroubJeshooUflg, Adjustmflts, & Service Figure 20. Control Lever Adjustment A. AJignment Hardware B. Placement Hardware C. Ground Speed Control Lever Figure 19. Seat Adjustment A. Adjustment Knobs B. Seat Springs SEAT ADJUSTMENTS The seat and ground speed control levers should be adjusted so that operator's elbows are supported by the arm rests when his/her hands are on the controls, and the ground speed control levers can be moved through...

  • Page 25: Cutting Height Adjustment

    TroubleshootJflg, Adjustmflts, & Service CUTTING HEIGHT ADJUSTMENT The cutting height adjustment pin (A, Figure 22) controls the mower cutting height. The cutting height is adjustable between 1-1/2" (3,8 cm) and 4-1/2" (11,4cm). Pulling the lever back fully locks the control in transport position.

  • Page 26: Parking Brake Adjustment

    TroubJeshootJflg, Adjustmflts, & Service PARKING BRAKE ADJUSTMENT Brake Adjustment 1. Disengage the PTO, stop the engine, block the front wheels, remove the ignition key, and engage the parking brake. 2. Elevate the rear end of the unit and remove the rear wheels.

  • Page 27: Pto Clutch Adjustment

    TroubleshootJflg, Adjustmflts, & Service Figure 26. Adjust PTO Clutch A. Window B. Adjustment Nut C..016"-.018" (0,40-0,45mm) Feeler Gauge Figure 25. PTO Clutch Adjustment A. Adjustment Window (Qty. 3, one shown) B. Adjustment Nut PTO CLUTCH ADJUSTMENT WARNING Check the PTO clutch adjustment after the initial 25 hour To avoid serious injury, perform adjustments only break-in period and then after every 250 hours of opera-...

  • Page 28: Mower Deck Leveling

    TroubieshootJflg, Adjustmflts, & Service Figure 27. Orient Blades Side=to=Side Figure 28. Measure Blade Tips to Ground A. Mower Deck C. Level Ground MOWER DECK LEVELING B. Blade Tip Perform these adjustments on a flat level surface. Note: Do not adjust the mower rift height rod (H, Figure 29) as it will effect the mower deck lift height, SIDE-TO=SIDELEVELING 1.

  • Page 29: Roller Bar Leveling

    TroubleshootJflg, Adjustmflts, & Service ROLLER BAR LEVELING (if Equipped) 1. First level the mower deck using the procedure found in MOWER DECK LEVELING. 2. With the mower installed, place the rider on a smooth, level surface such as a concrete floor. Turn the front wheels so they are straight.

  • Page 30: Hydraulic Pump Drive Belt Replacement

    Troubleshooting, Adjustmflts, & Service HYDRAULIC PUMP DRIVE BELT REPLACEMENT 1. Park the rider on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the park- ing brake, turn off the engine, and remove the ignition key. 2.

  • Page 31: Mower Belt Replacement

    TroubleshootJflg, Adjustmflts, & Service FRONT Figure 33. Mower BeJt Routing A. Arbor Pulleys Figure 34. Belt Covers B. Back-Side Idler Pulleys A. Right Side Belt Cover B. Left Side Belt Cover C. PTO Pulley D. BeJt Tension ReJease Lever MOWER BELT REPLACEMENT PRY BELTS OVER PULLEYS.

  • Page 32: Specifications

    NOTE: Specifications are correct at time of printing and are subject to change without notice. * Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors. ENGINE: TRANSMISSIONS: 18 HP* Kohler HydroGear BDP-10A / HGM-12P Make Kohler Type...

  • Page 33: Parts & Accessories

    TECHNICAL MANUALS Replacement parts are available from your authorized Additional copies of this manual are available, as well as dealer. Always use genuine Simplicity/Snapper Service fully illustrated parts lists. These manuals show all of the Parts. product's components in exploded views (3D illustrations...
  • Page 34 LawnCare & Mowing Information HOW AND WHEN TO HOW TO WATER YOUR LAWN The best method of watering a lawn WATER, FERTILIZE & is to imitate a slow, soaking rain, AERATE applying about 1 inch of water. HOW TO FERTILIZE YOUR LAWN Most lawns are watered too often, but with too little water.

  • Page 35: Lawncare& Mowing Information

    LawnCare& Mowing Information WHEN AND HOW OFTEN TO MOW The time of day and condition of the grass greatly affect the results you'll get when mowing. For the best results, follow these guidelines: • Mow when the grass is between 3"-4" (7,5-10 cm) high. •...
  • Page 36 PRODUCTS, INC. McDonough, GA., 30253 www.snapper.com MANUFACTURING, INC. 500 N Spring Street / PO Box 997 Port Washington, Wl 53074-0997 www.simplicitymfg.com © Copyright 2004, Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
