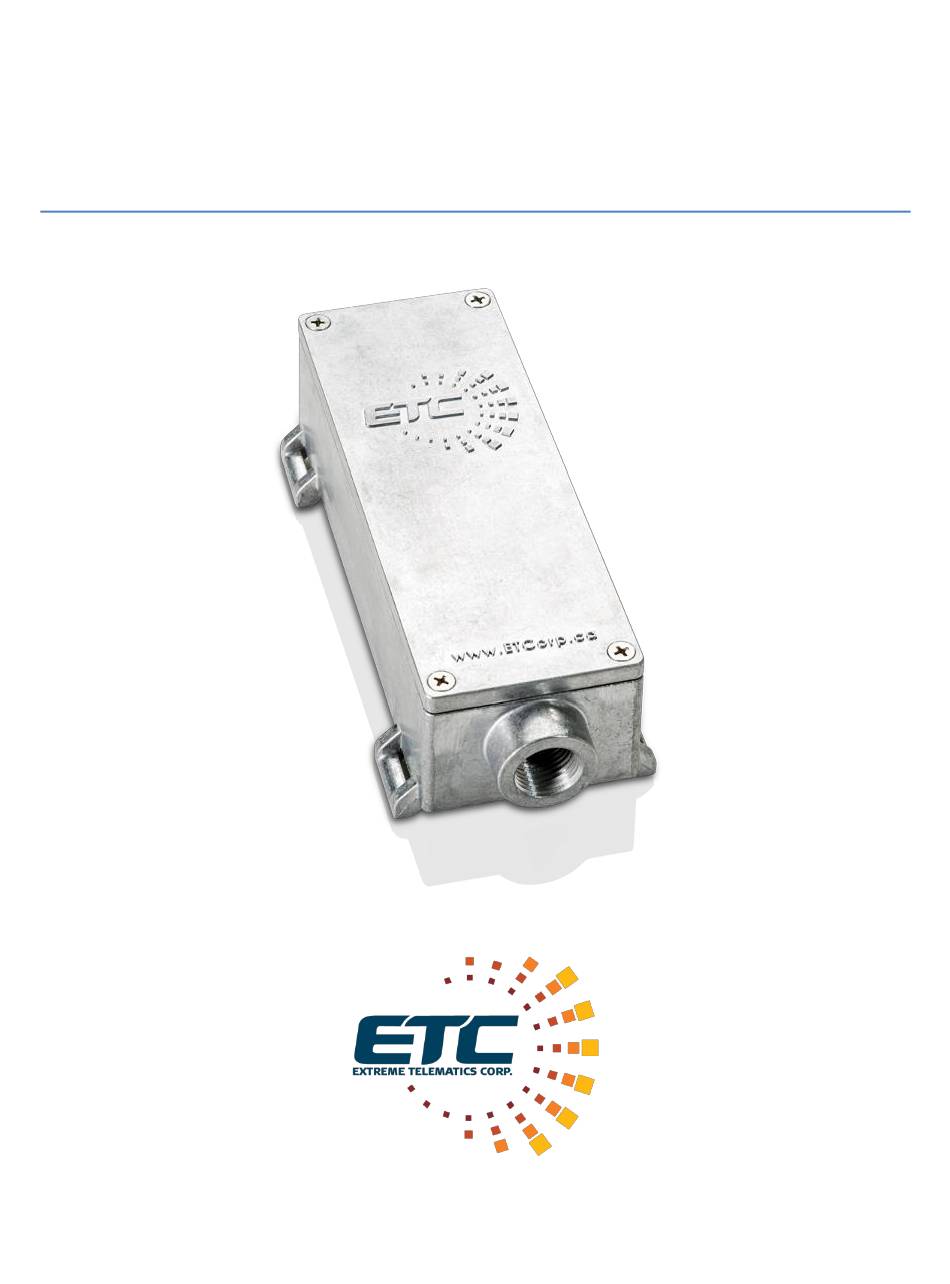

  • Page 1 Sasquatch User’s Manual Revision 4 April 23, 2018...

  • Page 2: Table Of Contents

    Table of Contents Background ............................1 Physical Connections ..........................1 Power ............................1 Output Signal ..........................1 2.2.1 Dry Contact Input ........................2 2.2.2 Voltage Input ......................... 2 Communications Port ........................3 2.3.1 Communications Settings ..................... 3 2.3.2 Modbus Slave ........................4 2.3.3 Program Mode ........................
  • Page 3 5.3.4 Velocity Gathering Timeout ....................10 5.3.5 Velocity Calculation Timer ....................10 5.3.6 Departure Detection Period ....................10 5.3.7 Re-Initialize Timer ....................... 10 Lubricator / Spring Wear Settings ....................10 5.4.1 Plunger Mass ........................10 5.4.2 Hard Arrival Velocity Threshold ..................10 5.4.3 Hard Arrival Kinetic Energy Threshold ................
  • Page 4 Figure 5 - Sensitivity Dial ..............................6 Figure 6 - Static Time Output Mode ..........................8 Figure 7 - Velocity Scaled Output Mode ........................9 Figure 8 - Plunger Hold Output Mode ..........................9 Figure 9 – Vision Sasquatch Kinetic Energy Settings ....................14...
  • Page 5 Installation Location: Class I, Division 2, Groups A, B, C, D or Non - Hazardous Locations Only Applicable to all models WARNING - DO NOT REMOVE, REPLACE OR DISCONNECT WHILE CIRCUIT IS LIVE UNLESS THE AREA IS KNOWN TO BE FREE OF IGNITIBLE CONCENTRATIONS OF FLAMMABLE SUBSTANCES. WARNING –...
  • Page 6 Installation Location: Class I, Division 1, Groups C, D or Class 1 Zone 0 Locations Only Applicable to model ET-11000-1031-0000 ONLY WARNING – INTRINSICALLY SAFE WHEN CONNECTED PER DRAWING ET-11000-1031-2001. WARNING – EQUIPMENT SHALL BE CONNECTED TO AN APPROVED POWER SOURCE OR BARRIER THAT DOES NOT PROVIDE MORE THAN 24VDC AND 8A.

  • Page 7: Background

    2.1 Power The Sasquatch requires a DC power source with a voltage of 5 V to 24 V. Power must be supplied while waiting for an arrival and during any time the interface will be accessed as there is no internal battery.

  • Page 8: Dry Contact Input

    Most magnetic sensors available on the market are designed to act as a dry contact, so the Sasquatch can easily be used as a replacement sensor for any system. A dry contact input on a controller features an internal pull up resistor.

  • Page 9: Communications Port

    COM – An additional ground connection to be used with an RS-485 connection. 2.3.1 Communications Settings The settings for the communications port are fully configurable so that the Sasquatch can be used with any other RS-485 compatible communication device. The following outlines the parameters that can be configured.

  • Page 10: Modbus Slave

    Figure 4 – RS-485 Connection 2.3.3 Program Mode When the sensitivity dial is set to 0, Sasquatch enters a mode where it listens for external commands on the RS-485 COM port. Using ETC Vision, you can program new firmware, change the operating mode, and adjust the sensitivity levels.
  • Page 11 2.3.4.2 Using the Link Device Connection Adapter Use the Sasquatch device cable that came with Link to connect to the device. Before connecting Link to Sasquatch, ensure that the switch on Link is set to position 1 (the leftmost position).

  • Page 12: Sensitivity

    4, which is the middle of the range. The higher the number, the more sensitivity or lower the threshold. When set to 0, the Sasquatch enters the program mode, does not take magnetic readings, and does not operate the switch.

  • Page 13: Adjusting The Default Sensitivities

    4.2 Capture - Full Debug This mode will run just like the normal mode, except the RS-485 port is used to stream live data to ETC Vision. This data includes the current readings, baseline, current switch position and velocity. Run a capture in ETC Vision to see the real time stream of these values.

  • Page 14: Configurable Options

    5 Configurable Options The following parameters can be used to modify the way that the Sasquatch operates. This allows for maximum flexibility for a variety of different applications. 5.1 Output Switch Parameters These parameters are used for one or more of the modes of operation in the following section.

  • Page 15: Velocity Scaled

    5.2.2 Velocity Scaled This allows for the velocity information to be transmitted along with the switch closure. The switch will always close for the Minimum Output Hold Time as above, but will be held closed for an additional time that is calculated based on the Output Hold Scale parameter. In the example below, the Output Hold Scale is set to 10 ms per m/min of velocity, which is the default.

  • Page 16: Detection Algorithm Timers

    The mass of the plunger in thousandths of a pound (x1000 lbs) or grams. This is required in order for the Sasquatch to calculate accurate kinetic energy of the arriving plunger as it hits the lubricator. If this information is not provided, the velocity-based lubricator / spring alarms will still operate.

  • Page 17: Hard Arrival Kinetic Energy Threshold

    Associated Alarm: Consecutive Hard Arrival Alarm 5.4.7 Cumulative Hard Arrival Threshold The Sasquatch counts the number of arrivals above the Hard Arrival threshold. If this count exceeds the Cumulative Hard Arrival Threshold, and alarm flag is set. These do not need to be consecutive hard arrivals to trip the alarm.

  • Page 18: Date And Time

    The date/time defaults to January 1, 2000. This is non-persistent and should be set after powering up the Sasquatch. The Date/Time Set flag can be queried to see if this has been done. The logs will use this information to timestamp each log entry. If the date/time is changed, all new log entries will use the new date/time.

  • Page 19: Table 2 - Lubricator / Spring Wear Settings

    The Sasquatch allows you to specify alarm thresholds in either velocity or kinetic energy units. It is up to the user to decide which to use. Velocity thresholds may be more familiar to some users but requires a manual calculation to check that it is within the lubricator specifications.

  • Page 20: Hazardous Locations Certification

    Figure 9 – Vision Sasquatch Kinetic Energy Settings 8 Hazardous Locations Certification Sasquatch is certified as follows in Canada and the US: Model: ET-11000-1030-0000 • Class 1, Division 2, Groups A, B, C and D T4 • Class 1, Zone 2, Group IIC T4 Model: ET-11000-1031-0000 •...

  • Page 21: Cathodic Protection

    This means that even if the case comes in contact with a surface that has a stray voltage; it will not be transmitted back through the wiring to the controller. Please do keep in mind that any shielding on the cable that is connected to the case of the Sasquatch will act as a path for any stray voltage to travel.

  • Page 22: Table 3 - General Specifications (Normal Mode)

    Appendix A Specifications The following is a high level list of specifications: Table 3 – General Specifications (Normal Mode) Supply Voltage 5 V DC – 24 V DC Power Consumption @5V - 37.5mW @24V - 180mW Average Current Draw 7.5mA Peak Current Draw Switch Impedance 100 ohms...

  • Page 23: Table 6 - Double Word Register Format

    Appendix B Modbus Register Formats Register Formats The following are the available register formats that are used throughout the register map. • MSW = most significant word (16 bits) • LSW = least significant word (16-bits) Double Word Register Table 6 - Double Word Register Format Number Description Start...

  • Page 24: Table 8 - Date/Time Register Format

    Date/Time Register • Range: 0 – 4,294,967,295 • Write MSW first when writing in seconds format, followed by LSW • Use the Time Format coil to switch the format Table 8 - Date/Time Register Format Number Description (Seconds Format) Description(H:M:S Format) Start Seconds since January 1, 2000 (MSW) Year...

  • Page 25: Table 9 - Available Coils

    Appendix C Modbus Register Map The following sections outline each of the sections of registers as defined by the Modbus protocol. These groups are as follows: • Coils – Single bit registers that can be written to cause an action •...

  • Page 26: Table 10 - Available Input Discretes

    Register Description Read Write 0:0011 Start Plunger Detection 1 – Start detection 0:0012 Stop Plunger Detection 1 – Stop detection 0:0013 Reset Kinetic Energy Statistics 1 - Reset statistics (except last arrival kinetic energy) Kinetic Energy Alarm Control 0:0014 Reset Consecutive Hard Arrival Alarm 0 –...

  • Page 27: Table 11 - Available Input Registers

    Register Description Read 1:0012 New Velocity Indicator 0 – No new velocity measured since last polled 1 – New velocity measured since last polled (value resets to 0 once it has been read) Kinetic Energy Alarm Status 1:0013 Consecutive Hard Arrival Alarm Status 0 - Consecutive Hard Arrival Statistic under threshold 1 - Consecutive Hard Arrival...
  • Page 28 Register Description Read 3:0003 Firmware Version – Major Version 0 – 99 3:0004 Firmware Version – Minor Version 0 – 99 3:0005 Firmware Version – Fix Version 0 – 99 3:0006 Hardware Version 0 – 99 3:0007 – 3:0008 Reserved 3:0009 Hardware Model 3:0010...
  • Page 29 Register Description Read 3:0102 + 6(n-1) Arrival Time – Entry n Date/Time format n = 1 to 120 3:0107 + 6(n-1) 3:822 + (n-1) Velocity – Entry n 0 – 1000 m/min (0 – 3281 ft/min) n = 1 to 120 3:942 + (n –...
  • Page 30 Register Description Read 3:1062 + (n-1) Kinetic Energy – Entry n 0 – 315.0 J (0 – 2788.2 lbs-in) n = 1 to 120 3:1282 – 3:1500 Reserved Modbus Error Log 3:1501 Slave Access Failure Type 0 – 12 This register may be read to view details of the last Slave Device Failure or Illegal Data Address exception response.
  • Page 31 Register Description Read 3:1512 + Error Log Type 1 = System Definition Error 3(n – 1) 2 = Assertion Failure 10 Available error logs. 3 = Check Failure 255 = No Error Log Available “n” in the register column represents the error log number.

  • Page 32: Table 12 - Available Holding Registers

    Register Description Read Total Production Log 3:2501 – 3: 2506 Total Production Save Time Date / Time Format 3:2507 Total Production Log Plunger Arrival Count 0 - 65535 3:2508 Total Production Log Maximum recorded 0 – 1000 m/min (0 – 3281 ft/min) Velocity 3:2509 Total Production Log Minimum recorded...
  • Page 33 Register Description Read/Write Output Configuration 4:0031 Output Mode 0 = Static Time 1 = Velocity Scaled 2 = Plunger Hold (default) 4:0032 Output Hold Scale 1 – 600 ms per m/min (ft/min) default = 10 ms 4:0033 Minimum Output Hold Time 100 –...
  • Page 34 Register Description Read/Write Modbus Settings 4:0051 Baud Rate 0 = 1200 bps 1 = 2400 bps 2 = 4800 bps 3 = 9600 bps 4 = 19,200 bps 5 = 38,400 bps 6 = 56,000 bps 7 = 115,200 bps 8 = 128,000 bps 9 = 256,000 bps 4:0052...
  • Page 35 Register Description Read/Write 4:0067 – 4:0068 Dangerous Arrival Kinetic Energy Threshold Floating-point format: 0 – 3.402823 × 10 ft-in (J) 4:0069 Cumulative Hard/Dangerous Arrival 0 – 65535 Threshold 4:0070 Cumulative Kinetic Energy Threshold Floating-point format: 0 – 3.402823 × 10 ft-in (J)
