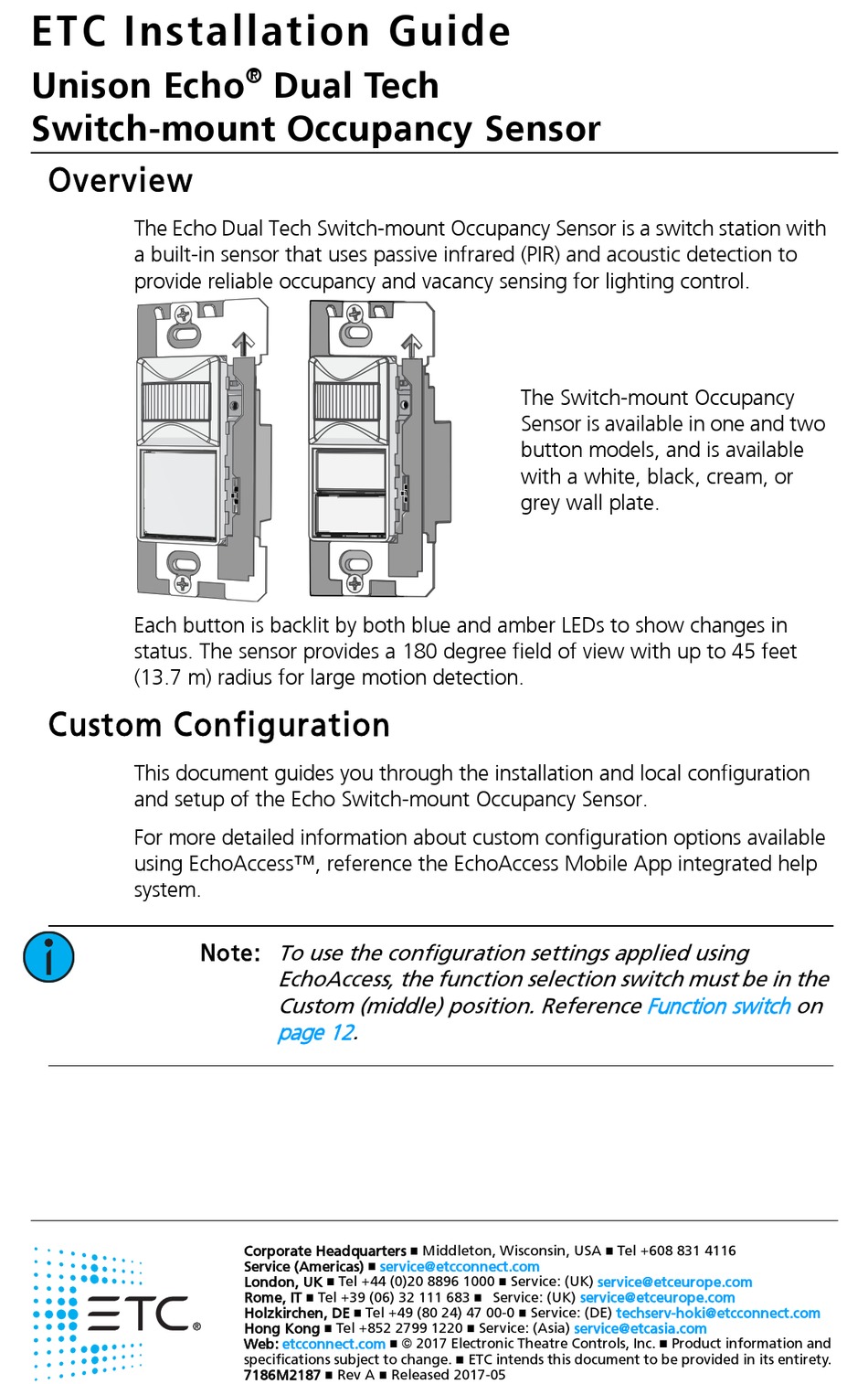

ETC Unison Echo Dual Tech Switch-mount Occupancy Sensor Installation Manual

ETC Installation Guide
Unison Echo
Switch-mount Occupancy Sensor
Overview
The Echo Dual Tech Switch-mount Occupancy Sensor is a switch station with
a built-in sensor that uses passive infrared (PIR) and acoustic detection to
provide reliable occupancy and vacancy sensing for lighting control.
Each button is backlit by both blue and amber LEDs to show changes in
status. The sensor provides a 180 degree field of view with up to 45 feet
(13.7 m) radius for large motion detection.
Custom Configuration
This document guides you through the installation and local configuration
and setup of the Echo Switch-mount Occupancy Sensor.
For more detailed information about custom configuration options available
using EchoAccess™, reference the EchoAccess Mobile App integrated help
system.
®
Dual Tech
Note: To use the configuration settings applied using
EchoAccess, the function selection switch must be in the
Custom (middle) position. Reference
page 12.
Corporate Headquarters
Service (Americas)
London, UK Tel +44 (0)20 8896 1000

Rome, IT Tel +39 (06) 32 111 683

Holzkirchen, DE

Hong Kong Tel +852 2799 1220

Web: etcconnect.com
specifications subject to change.
7186M2187 Rev A

The Switch-mount Occupancy
Sensor is available in one and two
button models, and is available
with a white, black, cream, or
grey wall plate.
