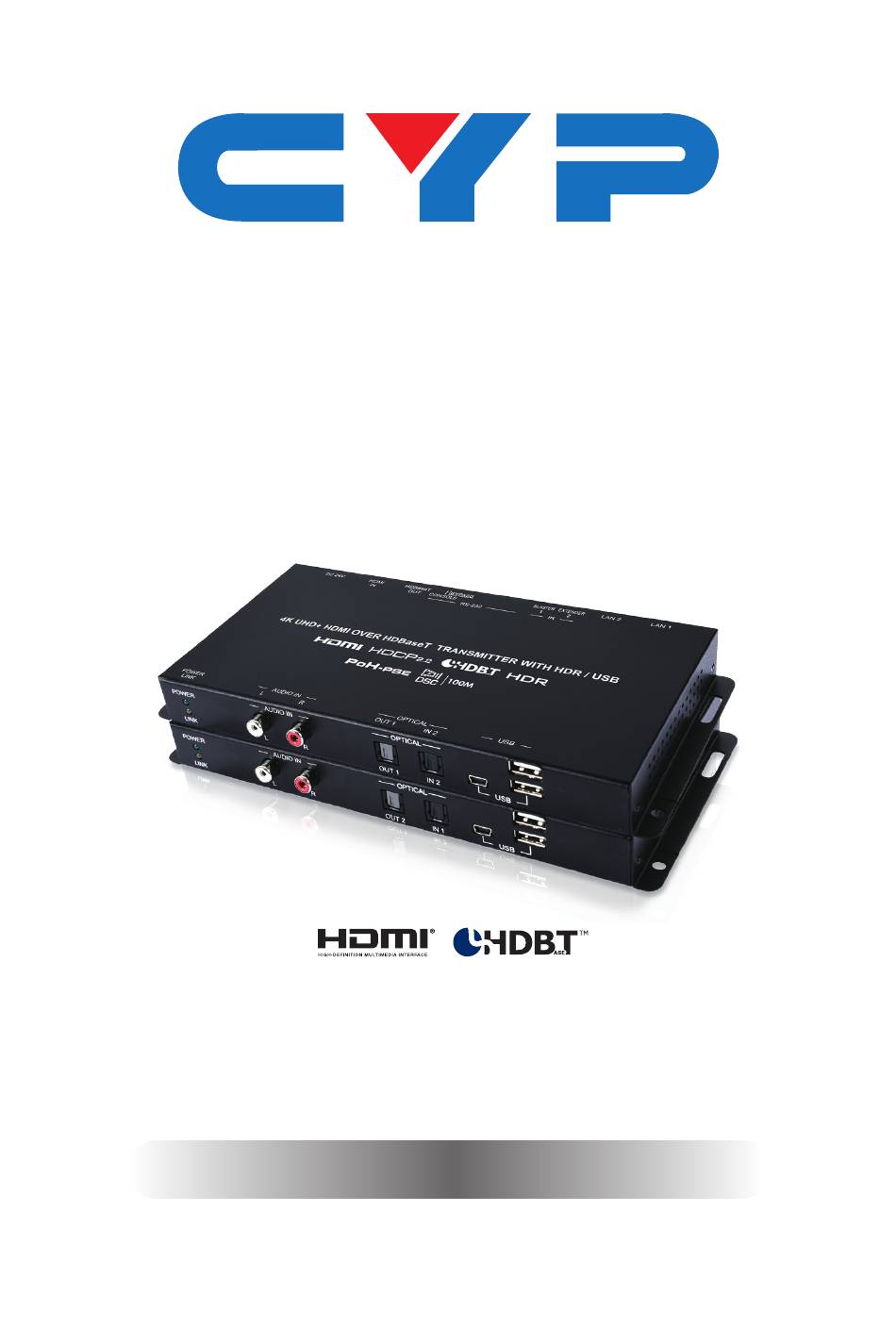

- Page 1 CH-1604TXD & CH-1604RXD 4K UHD HDMI over HDBaseT Transmitter & Receiver with HDR/USB Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Transmitter's Front Panel ......4 6.2 Transmitter's Rear Panel ......5 6.3 Receiver's Front Panel....... 6 6.4 Receiver's Rear Panel ....... -
Page 6: Introduction
1. INTRODUCTION This HDBaseT 2.0 Transmitter and Receiver set provides for the extension of 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100 meters (328 feet). This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. -
Page 7: Package Contents
3. PACKAGE CONTENTS Transmitter • 1×HDMI over HDBaseT Transmitter with HDR/USB • 1×24V/2.7A DC Power Adapter • 1×Power Cord • 1×3.5mm to IR Blaster Cable • 1×Shockproof Feet (Set of 4) • 1×Operation Manual Receiver • 1×HDMI over HDBaseT Receiver with HDR/USB •... -
Page 8: Features
5. FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD with HDR support • DVI 1.0 compliant with the use of an HDMI-DVI adapter • HDCP 1.4 and 2.2 compliant • Supports the HDBaseT 2.0 specification • Supports HD resolutions up to 3840×2160@60Hz (YUV 4:4:4, 8-bit) •... -
Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel AUDIO IN OPTICAL POWER LINK OUT 1 IN 2 POWER & LINK LEDs: The Power LED will illuminate to indicate the unit is on and receiving power. The Link LED will illuminate solidly when a live connection with a compatible Receiver is active. -
Page 10: Transmitter's Rear Panel
Note 3: Only one host connection is supported at a time. USB functionality will be disabled if host devices are connected to both sides simultaneously. 6.2 Transmitter's Rear Panel RS-232 CONSOLE LAN 1 LAN 2 EXTENDER BLASTER BYPASS HDBaseT OUT HDMI IN DC 24V LAN 1~2: Connect directly, or through a network switch, to your... -
Page 11: Receiver's Front Panel
HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. DC 24V: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power. 6.3 Receiver's Front Panel AUDIO OUT OPTICAL POWER... -
Page 12: Receiver's Rear Panel
Note 3: Only one host connection is supported at a time. USB functionality will be disabled if host devices are connected to both sides simultaneously. 6.4 Receiver's Rear Panel RS-232 CONSOLE LAN 1 LAN 2 EXTENDER BLASTER BYPASS HDBaseT IN HDMI OUT LAN 1~2: Connect to an Ethernet supporting device or to your local network, as appropriate, to extend the network to both ends... - Page 13 HDBaseT IN: Connect to a compatible HDBaseT Transmitter with a single Cat.5e/6/7 cable for transmission of all data signals. 48V PoH will also be supplied when connected to a compatible PD Transmitter. HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output.
-
Page 14: Ir Cable Pinouts
6.5 IR Cable Pinouts IR Extender Infrared Power Ground IR Blaster Power Infrared 6.6 RS-232 Protocol Unit Controlling PC Serial Port Settings Definition Definition Baud Rate 115200 Data Bits Parity Bit None Stop Bits Flow Control None... -
Page 15: Connection Diagram
7. CONNECTION DIAGRAM Stereo Input, LAN & RS-232 Optical Amplifier Network Output Switch 1.5m 60° HDMI Input & USB IR In & Out 60° Power Supply AUDIO IN OPTICAL POWER LINK OUT 1 IN 2 RS-232 CONSOLE BLASTER DC 24V LAN 1 LAN 2 EXTENDER... -
Page 16: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI 1×S/PDIF (TOSLINK) 1×Stereo (2×RCA) Output Ports 1×HDBaseT (RJ-45) 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 2×LAN (RJ-45) 1×USB (Mini-B) 2×USB (Type-A) Pass-through/Control Port 1×RS-232 (DE-9) IR Frequency 30–50kHz... -
Page 17: Receiver's Technical Specifications
Operating Temperature 0 ˚C–40 ˚C/32 ˚F–104 ˚F Storage Temperature -20 ˚C–60 ˚C/-4 ˚F–140 ˚F Relative Humidity 20–90% RH (Non-condensing) Power Consumption 8.2 Receiver's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDBaseT (RJ-45) 1×S/PDIF (TOSLINK) Output Ports 1×HDMI 1×S/PDIF (TOSLINK) 1×Stereo (2×RCA) Pass-through Ports... -
Page 18: Video Specifications
Weight 700g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 ˚C–40 ˚C/32 ˚F–104 ˚F Storage Temperature -20 ˚C–60 ˚C/-4 ˚F–140 ˚F Relative Humidity 20–90% RH (Non-condensing) Power Consumption 8.3 Video Specifications Supported PC Resolution (Hz) Input Output 640×480 60, 72, 75, 85 ... -
Page 19: Audio Specifications
Supported TV Resolution (Hz) Input Output 720×480i 59.94, 60 720×480p 59.94, 60 720×576i 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 23.98, 24, 25, 29.97, ... -
Page 20: Cable Specifications
Digital (S/PDIF) Input Sampling Rate (kHz) 44.1, 48, 88.2, 96, 176.4, 192 Digital (S/PDIF) Output Sampling Rate (kHz) 44.1, 48, 88.2, 96, 176.4, 192 8.5 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Output Cat. Cable Length 1080p Cat.5e 100m Cat.6... -
Page 21: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital Visual Interface Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Internet Protocol Infrared... - Page 24 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
