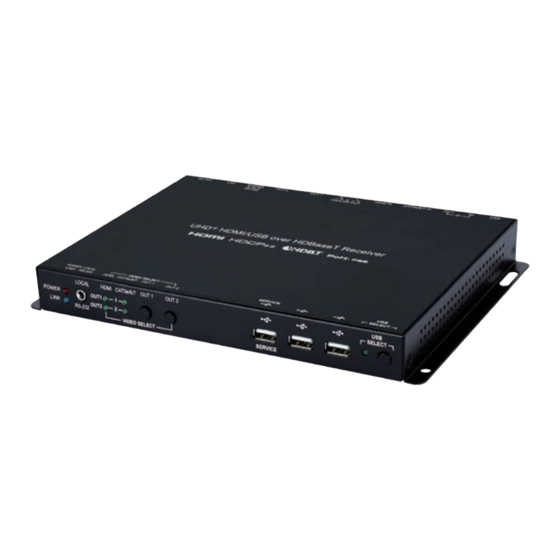

Hdmi/hdbaset/usb to hdmi receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CH-2603RX
HDMI/HDBaseT/USB to HDMI Receiver
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-2603RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CH-2603RX

Summary of Contents for CYP CH-2603RX

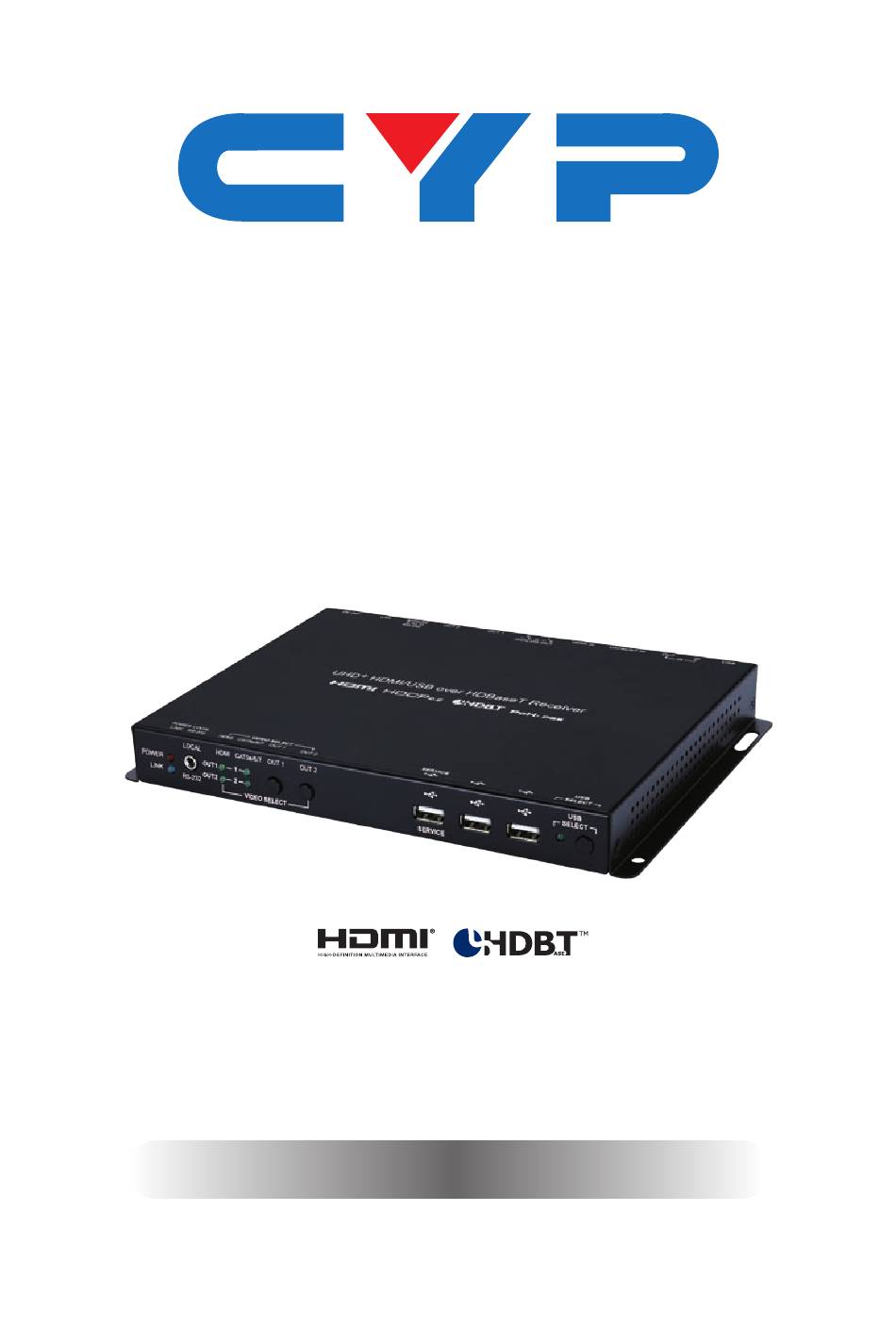

  • Page 1 CH-2603RX HDMI/HDBaseT/USB to HDMI Receiver Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel ..........5 6.3 IR Cable Pinouts ........6 6.4 RS-232 Pinout and Defaults ......

  • Page 6: Introduction

    1. INTRODUCTION This HDBaseT 2.0 Receiver is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. With a 2 by 2 matrix arrangement of HDBaseT & HDMI inputs and dual HDMI outputs this Receiver can handle a variety of source routing scenarios.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS • 1×HDMI/HDBaseT/USB to HDMI Receiver • 1×24V/3.75A DC Power Adapter • 1×3.5mm to IR Blaster Cable • 1×3.5mm to IR Extender Cable • 1×Shockproof Feet (Set of 4) • 1×Operation Manual • 1x power cord • 1x3-pin terminal block •...

  • Page 8: Features

    5. FEATURES • HDMI input and output with 3D & 4K video support (18Gbps) • HDCP 1.x & 2.2 compliant • HDBaseT 2.0 compatible • Selectable HDMI and HDBaseT inputs • HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit) •...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel LOCAL HDMI CAT5e/6/7 OUT 1 OUT 2 SELECT POWER OUT1 LINK OUT2 RS-232 VIDEO SELECT SERVICE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible Transmitter is active.

  • Page 10: Rear Panel

    6.2 Rear Panel BYPASS TX RX RS-232 CAT5e/6/7 IN HDMI IN ANALOG OUT OUT 1 OUT 2 DC 24V USB Host Port (Type B): Connect directly to a standard USB host such as a PC or laptop to extend their USB functionality to all currently connected USB devices.

  • Page 11: Ir Cable Pinouts

    DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power. 6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200...

  • Page 12: Webgui Control

    6.5 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 13 • WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.

  • Page 14: Video Select Tab

    6.5.1 Video Select Tab This tab provides A/V routing control, auto switch controls, and I/O renaming options. To assign a new A/V route, please click the button of the Output you wish to route a source to on the left and then click on the button of the preferred Input port on the right.
  • Page 15 2) Auto Switch: Auto switching may be enabled or disabled individually for each Output. Click on the On/Off slider to toggle the behavior of the selected Output. This unit can store up to two routing presets. Presets can be utilized to store multiple different routing states in advance for rapid, hassle-free, recall.

  • Page 16: Edid Tab

    6.5.2 EDID Tab This tab provides the option of six standard EDIDs, two sink sourced EDIDs and two customer uploaded User EDIDs that can be assigned to either or both of the input ports.
  • Page 17 1) Customer EDID Settings: ■ Save Name: To modify the name of a User EDID, simply type the new name in the space provided and then click on the “Save Name” button to confirm the change. ■ Upload: To upload a User EDID, press the “Upload” button next to the User EDID slot you wish to upload into.

  • Page 18: Hdcp Tab

    This unit provides the following 6 default EDIDs: Unit’s Default EDIDs FHD/2CH 1920×1080p@60Hz (148MHz) & LPCM 2.0 8-bit color FHD/MCH 1920×1080p@60Hz (148MHz) & LPCM 7.1 & 8-bit color Bitstream UHD/2CH 3840×2160p@30Hz (297MHz) & LPCM 2.0 Deep Color (8/10/12-bit) UHD/MCH 3840×2160p@30Hz (297MHz) & LPCM 7.1 &...

  • Page 19: Usb Tab

    buttons will change color as you select them and the change in HDCP behavior will occur immediately across all selected Inputs. “Reference to Source” will make the input operate using the HDCP version required by the connected source. “Reference to Display” will limit the input to only accept the HDCP version supported by the connected display.

  • Page 20: Audio Tab

    6.5.5 Audio Tab This tab provides control over the volume level of the balanced analog audio output. Note: HDMI audio output is always a direct pass-through from the selected source and is not affected by the controls on this tab. 1) Volume: Allows the adjustment of the balanced analog output’s volume level.

  • Page 21: System Tab

    6.5.6 System Tab This tab provides system information, network configuration options, system configuration resets, and firmware update functions. 1) System: ■ Web User Setting: This section provides a way to change the password for the Administrator account. Click on “Save” to confirm and activate any changes made to these settings.

  • Page 22: Telnet Control

    ■ Web Login Timeout: Select the length of time to wait before logging the user out of the WebGUI due to inactivity. Available range is from 1 to 65535 minutes. Setting this to 0 will disable the inactivity timeout. ■ Firmware Upgrade: To update the unit's firmware, click the “Choose File”...

  • Page 23: Rs-232 And Telnet Commands

    6.7 RS-232 and Telnet Commands COMMAND Description and Parameters help Show the full command list. ? Show the full command list. help N1 Show help details about command N1. N1 = {Command} get model name Show the unit's model name. get fw ver...
  • Page 24 COMMAND Description and Parameters get ipconfig Show the unit's current IP configuration information. set ip addr N1 Set the unit's static IP address. N1 = X.X.X.X [X = 0 ~ 255] get ip addr Show the unit's current IP address. set netmask N1...
  • Page 25 COMMAND Description and Parameters set webgui login timeout N1 Set the WebGUI inactivity timeout value. Available values for N1: [No timeout] 1 ~ 65535 [Timeout in minutes] get webgui login timeout Show the current WebGUI inactivity timeout value. set in N1 name N2 Set the name of the specified input.
  • Page 26 COMMAND Description and Parameters get out N1 route Show the routing for the specified output. N1 = A ~ B [Output port] get in name list List all input names. get out name list List all output names. set out N1 auto mode N2 Set the automatic switching behavior of the specified output.
  • Page 27 COMMAND Description and Parameters get in N1 interlace Show if the source connected to input N1 is interlaced or not. N1 = 1 ~ 2 [Input port] Possible response values: [Progressive] [Interlaced] get in N1 sync status Show the detected sync state for input N1. N1 = 1 ~ 2 [Input port] Possible response values:...
  • Page 28 COMMAND Description and Parameters set all out route N1 Set input routing for all outputs. N1 = 1 ~ 2 [Input port] get all out route List the current input routing for all outputs. set out N1 cec data N2 Send a CEC command, as hex data, to the display connected to the specified output.
  • Page 29 COMMAND Description and Parameters get preset N1 list Show the current routing saved within preset N1. N1 = 1 ~ 2 [Preset number] set route preset N1 name N2 Set the name of preset N1. N1 = 1 ~ 2 [Preset number] N2 = {Name} [16 characters max]...
  • Page 30 COMMAND Description and Parameters get analog output mute Show the current mute state of the analog audio output. set in N1 edid N2 Set the EDID to use on the specified input. N1 = 1 ~ 2 [Input port] Available values for N2: [FHD 2CH] [FHD MCH] [UHD 2CH]...
  • Page 31 COMMAND Description and Parameters get edid N1 name Show the name for the specified EDID. (User EDIDs only) N1 = 7 ~ 8 [User EDIDs] set user N1 edid data N2 Upload a new EDID (in HEX format) for use as the specified User EDID.
  • Page 32 COMMAND Description and Parameters set in N1 hdcp mode N2 Set the HDCP behavior of the specified input. N1 = 1 ~ 2 [Input port] Available values for N2: [Support disabled] [Follow source] [Follow display] get in N1 hdcp mode Show the current HDCP behavior used by the specified input.
  • Page 33 COMMAND Description and Parameters get out N1 hdcp ability Show the HDCP compliance level of the display device connected to the specified output. N1 = A ~ B [Output port] Possible response values: [No HDCP] [HDCP 1.x] [HDCP 2.2] [HDCP 1.x+2.2] get in N1 hdcp ability...

  • Page 34: Connection Diagram

    7. CONNECTION DIAGRAM Trigger Control Laptop Keypad Macro Macro Media Player Macro Macro Macro Macro Macro Macro HDMI Audio Laptop Laptop Powered Monitor Speakers DisplayPort IR In & Out HDMI HDMI Router TRIGGER IN ANALOG OUT USB 1 USB 2 BYPASS TX RX RS-232...

  • Page 35: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps HDBaseT Bandwidth 10.2Gbps Input Ports 1×HDMI (Type-A) 1×HDBaseT (RJ-45) Output Ports 2×HDMI (Type-A) 1×Balanced Stereo (5-pin Term. Block) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 2×USB 2.0 (Type A) 1×USB 2.0 (Type B) 1×RS-232 (3-pin Terminal Block) Pass-through/Service Port 1×USB 2.0 (Type A) Pass-through/Control Port 1×LAN (RJ-45)
  • Page 36 Chassis Color Black Operating Temperature 0˚C – 40˚C/32˚F – 104˚F Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F Relative Humidity 20 – 90% RH (Non-condensing) Power Consumption 22.33W...

  • Page 37: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBaseT HDMI 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60 ...
  • Page 38 Input Output Supported Resolutions (Hz) HDMI HDBaseT HDMI 1920×1200p@60RB    2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24, HDR10  ...

  • Page 39: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition HDBaseT Input LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats...

  • Page 40: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 100m Cat.6a/7 100m 100m Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...

  • Page 41: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Receiver Video & Audio Supported LAN Pass-through Supported Send power to Transmitter Supported Accept power from Transmitter Unsupported IR Pass-through Supported RS-232 Pass-through Supported...

  • Page 42: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter ASCII American Standard Code for Information Interchange Audio/Video Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analog Converter DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID...
  • Page 43 ACRONYM COMPLETE TERM Powered Device Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise Ultra-High-Definition UHD+ Ultra-High-Definition Plus UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array...
  • Page 44 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
