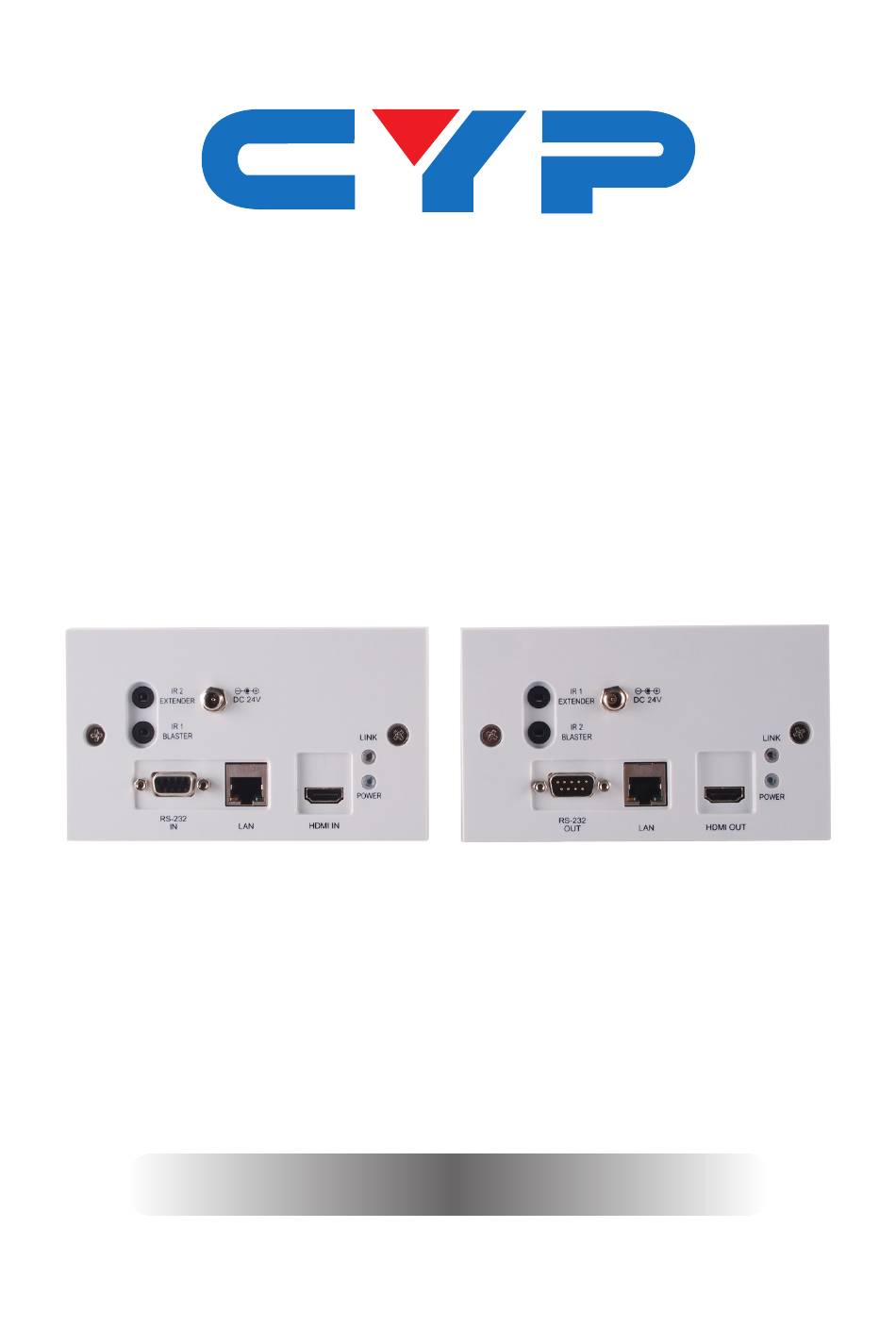

- Page 1 CH-507TXWPBD & RXWPBD HDMI over Single CAT5e/CAT6 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter .........3 6.2 Receiver ..........4 7. D-Sub 9 Pin Definitions ......5 8. -
Page 6: Introduction
1. INTRODUCTION The HDMI over single CAT5e/6/7 wall-plate transmitter and receiver setcan transmit and receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K with bi-directional PoC & IR functions,LAN of a data transmission rate of 100Mbps &... -
Page 7: Features
5. FEATURES • HDMI 1.x and DVI 1.0 compliant • HDCP compliant • Supports HDMI 3D and 4K x 2K features • Supports HDCP repeater and CEC bypass • Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable •... -
Page 8: Operation Controls And Functions

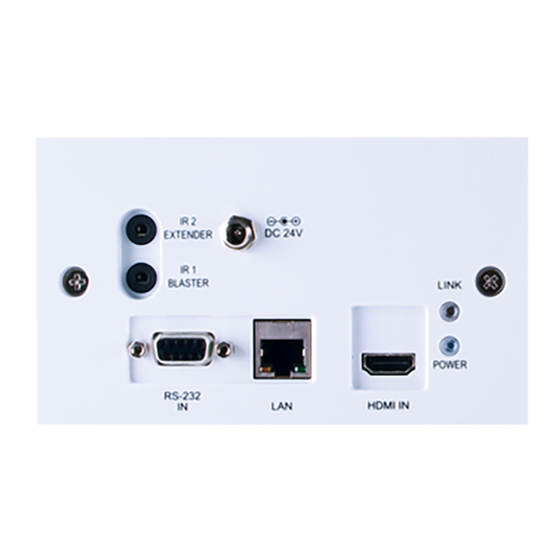

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter IR 2 DC 24V EXTENDER IR 1 BLASTER LINK POWER RS-232 HDMI IN IR 2 EXTENDER: This slot is to connect with the IR receiver cable included in the package for IR signal receiving. DC 24V: Connect the power adaptor included in the package and then connect to AC power to activate the device. -
Page 9: Receiver
HDMI IN: This slot is to connect with HDMI source equipment such as DVD/Blu-ray player with HDMI source signal. Power LED: This LED will illuminate when the device is connected to a power supply. LINK LED: This LED will illuminate when the both CAT5e/6/7 input and output signal is connected. -
Page 10: D-Sub 9 Pin Definitions
(including internet access if available) to be shared between the transmitter and all connected receivers. Connect any Ethernet equipped device e.g. a Smart TV or games console to the LAN port of a receiver for that device to share the network/internet access. -
Page 11: Connection Diagram
8. CONNECTION DIAGRAM Option 1: Point to Point Internet Modem or RS-232 Equipped PC Router or Notebook 1.5m CAT5e/6/7 60° RS-232 Power Supply IR Blaster DVD or Blu-ray Player IR 2 EXTENDER DC 24V IR 1 BLASTER LINK 60° POWER RS-232 HDMI IN IR Extender... -
Page 12: Option 2: Matrix System
Option 2: Matrix System CAT5e/6/7 IR 1 IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT EXTENDER DC 24V CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V... -
Page 13: Specifications
9. SPECIFICATIONS Video Bandwidth 300MHz/9Gbps Transmitter Input 1×HDMI, 1×IR Extender, 1xLAN, 1×RS-232 Output 1×CAT5e/6/7, 1×IR Blaster Receiver Input 1×CAT5e/6/7, 1×IR Extender, 1xLAN Output 1×HDMI, 1×RS-232, 1×IR Blaster ESD Protection Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec... -
Page 14: Cable Specifications
9.1 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:2:0) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 15: Acronyms
10. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
