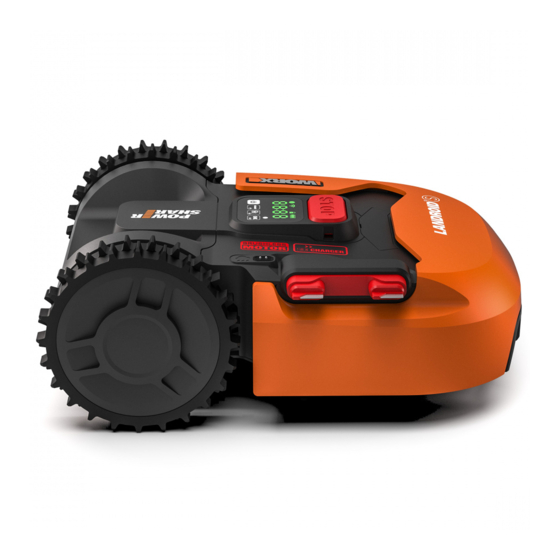

Worx Landroid WR130E Installation Manual
Hide thumbs
Also See for Landroid WR130E:
- User manual ,
- Owner's manual (28 pages) ,
- Installation manual (21 pages)
Related Manuals for Worx Landroid WR130E
Summary of Contents for Worx Landroid WR130E
- Page 1 INSTALLATION GUIDE...
- Page 2 Original instructions Installation guide...
- Page 3 If you are like us, you hate wasting time to mow your lawn. Your Landroid will prove to be a ® great investment, providing you with years of lawn care. You can watch the installation demo video at www.worx.com. Landroid loves to mow ®...
- Page 4 In the box WR130E WR131E Landroid Charging base ® Base fixing nails Hex key Spare blades Boundary wire reel Wire pegs Power adapter Connector Distance gauge* Get Started Warranty statement Battery From your shed Scissors Hammer Tape...
- Page 5 In the box WR141E WR144E Landroid Charging base ® Base fixing nails Hex key Spare blades Boundary wire reel Wire pegs Power adapter Connector Distance gauge* Get Started Warranty statement Battery From your shed Scissors Hammer Tape...
- Page 6 Landroid 's new home: your garden ® Let's start by having a closer look at Landroid ’s new home - your lawn - highlighting the areas where it ® can safely go and areas Landroid should avoid. ® Obstacles that can be hit When hitting any obstacle that’s rigid, stable and taller than 10cm - such as a wall or a fence - Landroid will stop and re-...
- Page 7 Depressions and bumps In case of large bumps (higher than 2cm) or dips (wider than 10cm and deeper than 2.5cm), please determine if the blades would touch the ground or if Landroid would get stuck. If ® this is the case, either make the inclines smoother or exclude these areas from Landroid ’s operation.
- Page 8 Overview > 26cm > 26cm > 26cm > 26cm > 26cm Your Landroid needs to know where to mow. Using the boundary wire, you'll define Landroid 's working area and form an ® ® invisible fence. This wire will also guide Landroid to its charging base.
- Page 9 >1m > 26cm >1m > 26cm > 10cm > 10cm > 26cm 75cm 75cm >90º >90º <90º hangar, can lead to navigational disturbances of robotics lawn mowers.” If your neighbor also uses a Landroid , you must keep a space of at least 1 metre between your boundary wire and your ®...
-
Page 10: Installation
Installation Place the charging base Find a flat surface for the charging base, the place should be dry and out of direct sun light and the adapter can be mounted on the wall. Landroid ’s charging base can be placed against the wall or ®... - Page 11 Charge your Landroid before the first operation ® When connecting the power cord of the charging base to the adapter, align the notch on the power cord (b) with the groove on the adapter (a). Connect the adapter to the electrical outlet. The LED on the charging base will turn on in red color.
- Page 12 In the case of two islands that are close to each other, it would be convenient to lay out the wire as illustrated in the picture. Landroid can travel freely over the boundary wire between the ® areas and the mowing boundary. >...
- Page 13 > 26cm Complete the entire boundary wire setup > 26cm >1m > > 26cm 26cm Lay down the boundary wire around the working area as the illustration shown. > 26cm >1m After pegging the boundry wire, please take your Landroid ®...
- Page 14 Verification Before it starts mowing for the first time, make sure Landroid 's working area is clear of objects such as ® toys and branches... Set the cutting height to the maximum level (50mm (WR130E WR131E) / 60mm (WR141E WR144E)). WR130E WR131E WR141E WR144E Place your Landroid...
- Page 15 Press then to send Landroid back to the charging base. ® Landroid will follow the boundary wire to the charging base. ® Only for reference Fine tune the outline shape of the boundary wire if necessary. NOTE: If the boundary wire is broken during the testing or you need to extend the boundary wire, please refer to “Joining the Boundary Wire”...
- Page 16 Setting First please set the height to a desired grass level after cut and you can do the program setting manually or using mobile App. NOTE: When doing the program setting manually, Landroid will enter the standby page if it does not ®...
- Page 17 Set work area Keep pressing for 3 seconds. When the icon is blinking, press . A number will be blinking on the display, for example, , which is the lawn area. The working time will be automatically set according to the size of your garden. Use to set the lawn area (the area will increase / decrease by 50m each time the...
- Page 18 Your Landroid is able to connect with smartphone. Using Landroid App for your smartphone, you can ® ® change your Landroid 's general settings, and view the machine's status and error messages. ® Checklist before connecting your App to Landroid ®...
- Page 19 ® Step 1: To download the Landroid App, scan the QR code below or download it from Playstore (Google- ® Android), AppleStore (Apple-iOS) or our website www.worx.com. Step 2: Keep pressing for 3 seconds, the icon will be blinking. Use...
- Page 20 www.worx.com...
