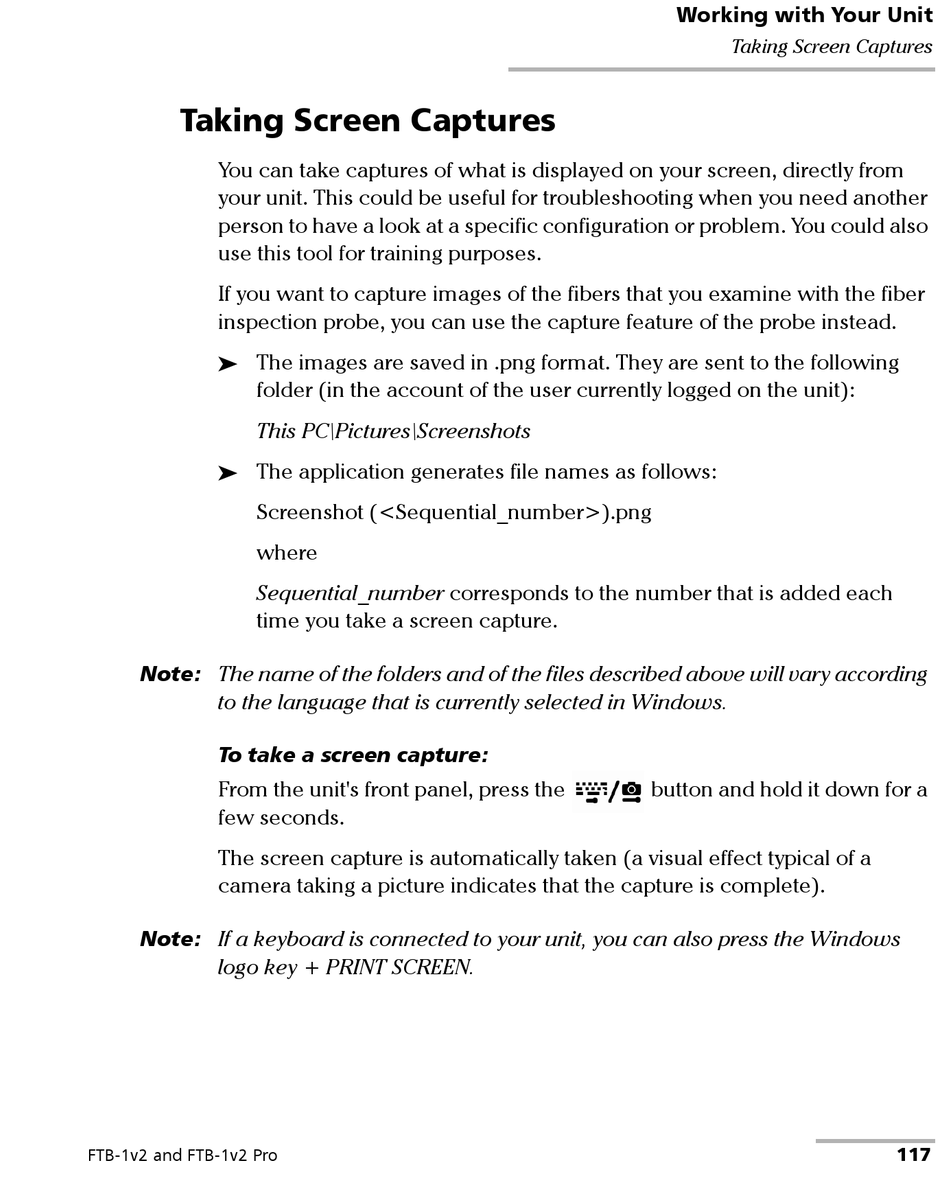

Taking Screen Captures

You can take captures of what is displayed on your screen, directly from
your unit. This could be useful for troubleshooting when you need another
person to have a look at a specific configuration or problem. You could also
use this tool for training purposes.
If you want to capture images of the fibers that you examine with the fiber
inspection probe, you can use the capture feature of the probe instead.
The images are saved in .png format. They are sent to the following

folder (in the account of the user currently logged on the unit):
This PC\Pictures\Screenshots
The application generates file names as follows:

Screenshot (<Sequential_number>).png
where
Sequential_number corresponds to the number that is added each
time you take a screen capture.
Note: The name of the folders and of the files described above will vary according
to the language that is currently selected in Windows.
To take a screen capture:
From the unit's front panel, press the
few seconds.
The screen capture is automatically taken (a visual effect typical of a
camera taking a picture indicates that the capture is complete).
Note: If a keyboard is connected to your unit, you can also press the Windows
logo key + PRINT SCREEN.
