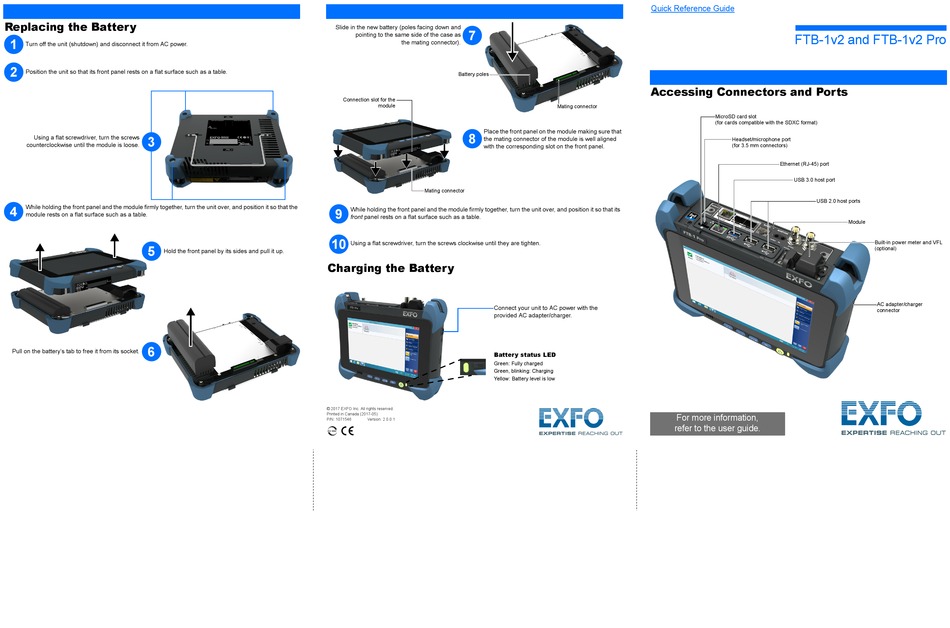

EXFO FTB-1v2 Quick Reference Manual

Replacing the Battery
1
Turn off the unit (shutdown) and disconnect it from AC power.
2
Position the unit so that its front panel rests on a flat surface such as a table.
Using a flat screwdriver, turn the screws 3
counterclockwise until the module is loose.
4 While holding the front panel and the module firmly together, turn the unit over, and position it so that the
module rests on a flat surface such as a table.
5
Hold the front panel by its sides and pull it up.
6
Pull on the battery's tab to free it from its socket.
Slide in the new battery (poles facing down and
7
pointing to the same side of the case as
the mating connector).
Battery poles
Connection slot for the
module
Place the front panel on the module making sure that
8
the mating connector of the module is well aligned
with the corresponding slot on the front panel.
Mating connector
While holding the front panel and the module firmly together, turn the unit over, and position it so that its
9
front panel rests on a flat surface such as a table.
10
Using a flat screwdriver, turn the screws clockwise until they are tighten.
Charging the Battery
Connect your unit to AC power with the
provided AC adapter/charger.
Battery status LED
Green: Fully charged
Green, blinking: Charging
Yellow: Battery level is low
© 2017 EXFO Inc. All rights reserved.
Printed in Canada (2017-05)
P/N: 1071546 Version: 2.0.0.1

Quick Reference Guide
Accessing Connectors and Ports
Mating connector
MicroSD card slot
(for cards compatible with the SDXC format)
Headset/microphone port
(for 3.5 mm connectors)
For more information,
refer to the user guide.

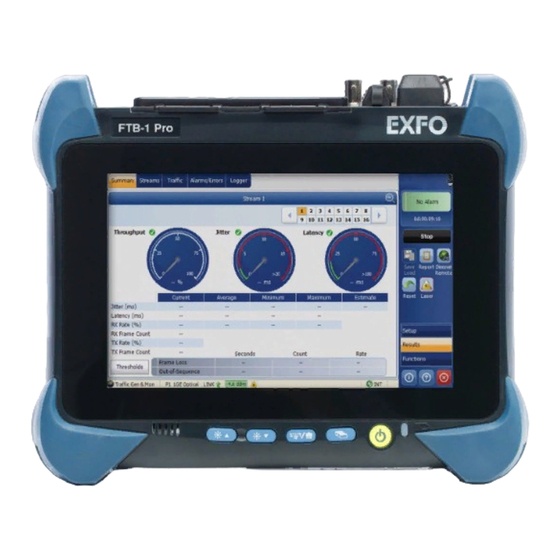

FTB-1v2 and FTB-1v2 Pro
Ethernet (RJ-45) port
USB 3.0 host port
USB 2.0 host ports
Module
Built-in power meter and VFL
(optional)
AC adapter/charger
connector
