High Pressure Housing
MOUNTING DISCRITPION

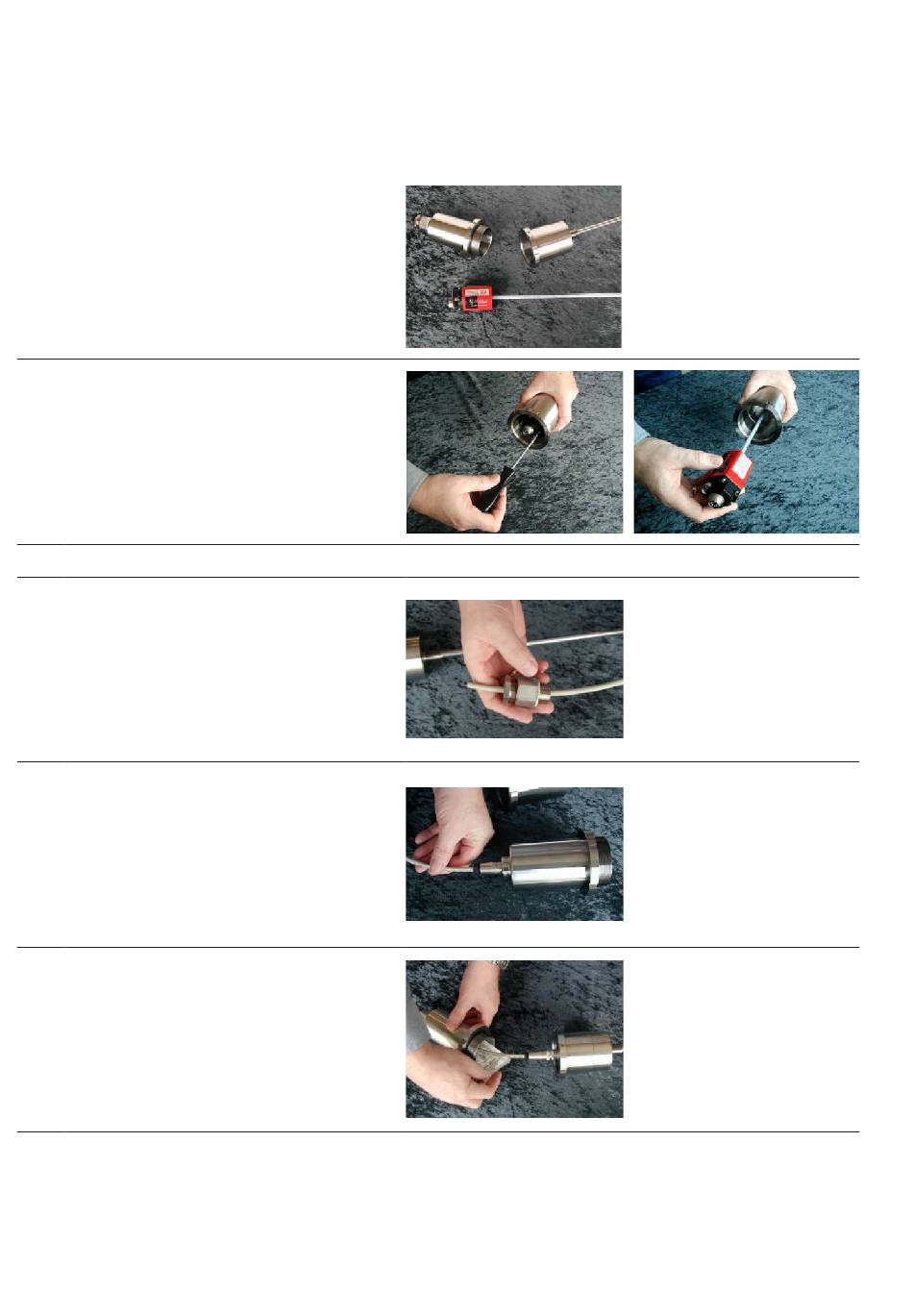

Open the housing by turning the top counter clockwise.
When opening after a sensor is installed, it is very im-
portant to completely loosen the cable gland in order to
1. protect the cable against twisting and physical damage.
The normal way is that the sensor and the HPH housing
are in one order and then MTS Sensors supply the sen-
sor mounted in the WPH housing. Go to step 7.
Remove rod or profile from the sensor.
2.
Separate the plastic tube from the sensor.
3. Cable gland
3.1 Insert the cable through the gland
3.2 Insert the connector through the top.
Connect to the sensor and insert a bag of
3.3
Desiccant in the top.
