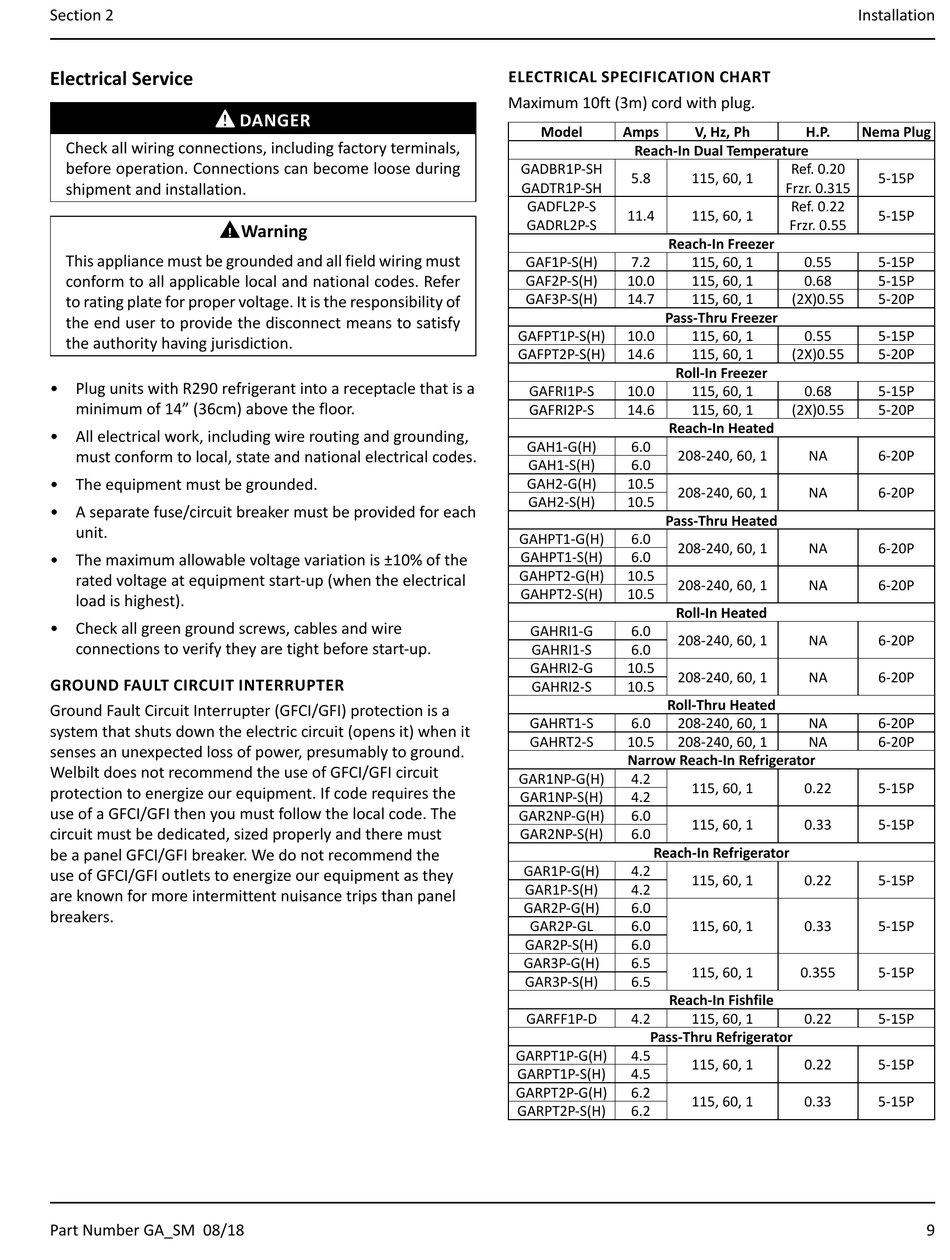

Electrical Service; Ground Fault Circuit Interrupter; Electrical Specification Chart - Delfield Specification Line GADTR1P-SH Original Instructions Service Manual

Section 2

Electrical Service

Check all wiring connections, including factory terminals,
before operation. Connections can become loose during
shipment and installation.
n
This appliance must be grounded and all field wiring must
conform to all applicable local and national codes. Refer
to rating plate for proper voltage. It is the responsibility of
the end user to provide the disconnect means to satisfy
the authority having jurisdiction.
• Plug units with R290 refrigerant into a receptacle that is a
minimum of 14" (36cm) above the floor.
• All electrical work, including wire routing and grounding,
must conform to local, state and national electrical codes.
• The equipment must be grounded.
• A separate fuse/circuit breaker must be provided for each
unit.
• The maximum allowable voltage variation is ±10% of the
rated voltage at equipment start-up (when the electrical
load is highest).
• Check all green ground screws, cables and wire
connections to verify they are tight before start-up.

GROUND FAULT CIRCUIT INTERRUPTER

Ground Fault Circuit Interrupter (GFCI/GFI) protection is a
system that shuts down the electric circuit (opens it) when it
senses an unexpected loss of power, presumably to ground.
Welbilt does not recommend the use of GFCI/GFI circuit
protection to energize our equipment. If code requires the
use of a GFCI/GFI then you must follow the local code. The
circuit must be dedicated, sized properly and there must
be a panel GFCI/GFI breaker. We do not recommend the
use of GFCI/GFI outlets to energize our equipment as they
are known for more intermittent nuisance trips than panel
breakers.
Part Number GA_SM 08/18
DANGER
Warning

ELECTRICAL SPECIFICATION CHART

Maximum 10ft (3m) cord with plug.
Model Amps
Reach-In Dual Temperature
GADBR1P-SH
5.8
GADTR1P-SH
GADFL2P-S
11.4
GADRL2P-S
Reach-In Freezer
GAF1P-S(H) 7.2
GAF2P-S(H) 10.0
GAF3P-S(H) 14.7
Pass-Thru Freezer
GAFPT1P-S(H) 10.0
GAFPT2P-S(H) 14.6
Roll-In Freezer
GAFRI1P-S 10.0
GAFRI2P-S 14.6
Reach-In Heated
GAH1-G(H) 6.0
208-240, 60, 1
GAH1-S(H) 6.0
GAH2-G(H) 10.5
208-240, 60, 1
GAH2-S(H) 10.5
Pass-Thru Heated
GAHPT1-G(H) 6.0
208-240, 60, 1
GAHPT1-S(H) 6.0
GAHPT2-G(H) 10.5
208-240, 60, 1
GAHPT2-S(H) 10.5
Roll-In Heated
GAHRI1-G 6.0
208-240, 60, 1
GAHRI1-S 6.0
GAHRI2-G 10.5
208-240, 60, 1
GAHRI2-S 10.5
Roll-Thru Heated
GAHRT1-S 6.0 208-240, 60, 1
GAHRT2-S 10.5 208-240, 60, 1
Narrow Reach-In Refrigerator
GAR1NP-G(H) 4.2
GAR1NP-S(H) 4.2
GAR2NP-G(H) 6.0
GAR2NP-S(H) 6.0
Reach-In Refrigerator
GAR1P-G(H) 4.2
GAR1P-S(H) 4.2
GAR2P-G(H) 6.0
GAR2P-GL 6.0
GAR2P-S(H) 6.0
GAR3P-G(H) 6.5
GAR3P-S(H) 6.5
Reach-In Fishfile
GARFF1P-D 4.2
Pass-Thru Refrigerator
GARPT1P-G(H) 4.5
GARPT1P-S(H) 4.5
GARPT2P-G(H) 6.2
GARPT2P-S(H) 6.2
Installation
V, Hz, Ph H.P. Nema Plug
Ref. 0.20
115, 60, 1
Frzr. 0.315
Ref. 0.22
115, 60, 1
Frzr. 0.55
115, 60, 1 0.55
115, 60, 1 0.68
115, 60, 1 (2X)0.55
115, 60, 1 0.55
115, 60, 1 (2X)0.55
115, 60, 1 0.68
115, 60, 1 (2X)0.55
NA
NA
NA
NA
NA
NA
NA
NA
115, 60, 1 0.22
115, 60, 1 0.33
115, 60, 1 0.22
115, 60, 1 0.33
115, 60, 1 0.355
115, 60, 1 0.22
115, 60, 1 0.22
115, 60, 1 0.33
5-15P
5-15P
5-15P
5-15P
5-20P
5-15P
5-20P
5-15P
5-20P
6-20P
6-20P
6-20P
6-20P
6-20P
6-20P
6-20P
6-20P
5-15P
5-15P
5-15P
5-15P
5-15P
5-15P
5-15P
5-15P
