Delfield
™
®
6000XL & 6100XL Series Reach Ins
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment! Notify carrier of
damage! Inspect all components immediately.
Refrigerators and Freezers
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
July 2013
*9294254*
Advertisement
Table of Contents
Related Manuals for Delfield 5066441-S
Summary of Contents for Delfield 5066441-S

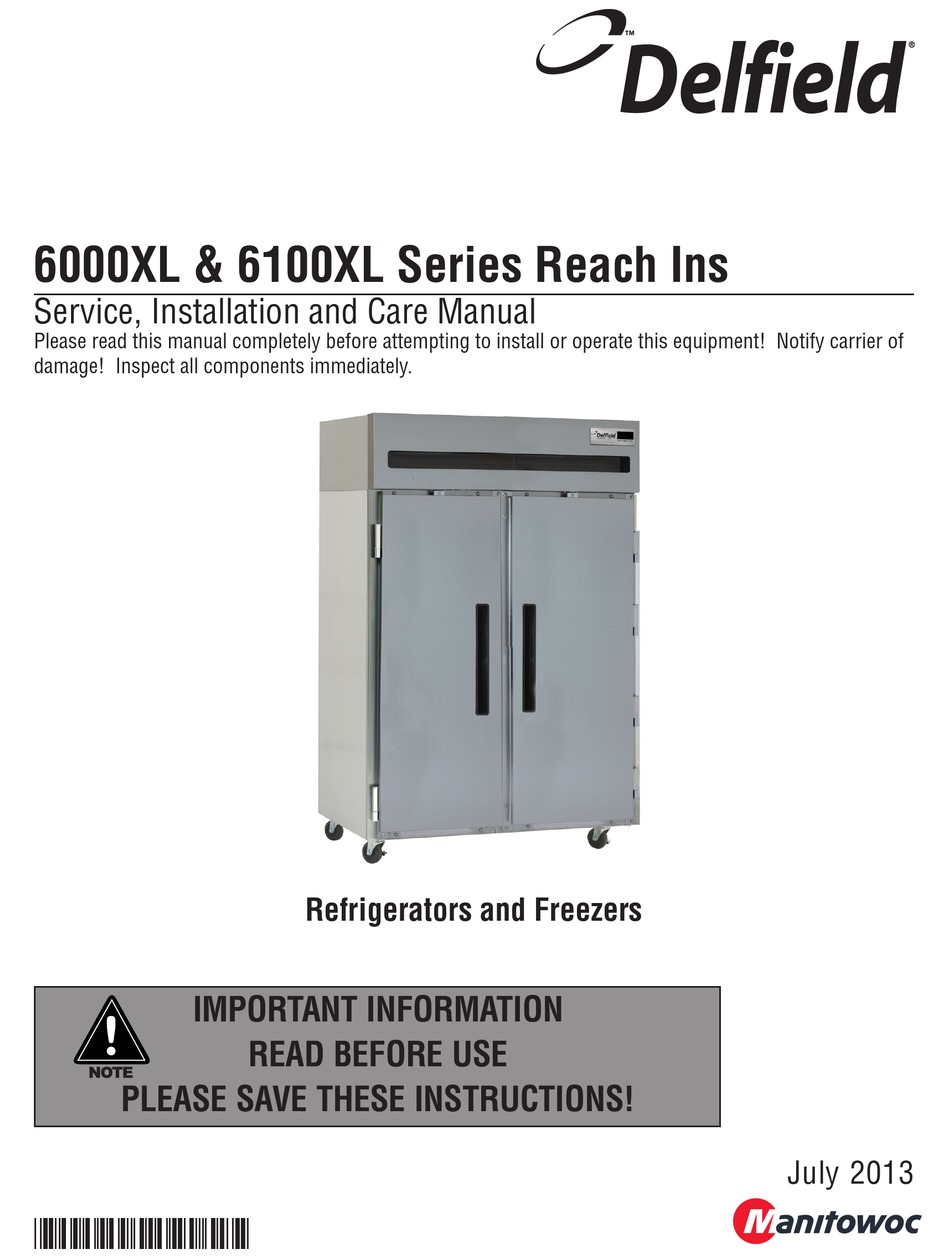

- Page 1 Delfield ™ ® 6000XL & 6100XL Series Reach Ins Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. Refrigerators and Freezers IMPORTANT INFORMATION...
- Page 2 Operate equipment only on the type of electricity indicated on the specification plate. • Unplug the unit before making any repairs. • Retain this manual for future reference. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
-
Page 3: Table Of Contents
Retain all crating material until an inspection has been opening, there is concealed damage to the equipment made or waived. notify the carrier. Notification should be made verbally as Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 4: Serial Number Information
• Verify warranty information. • View and download a copy of your warranty. Regulatory Certifications The models are certified by: National Sanitation Foundation (NSF) Underwriters Laboratories (UL) Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 5: Specifications
622lbs/282kg 6076XLR-G,GH 66.5 48.3 2092/2488 20˚F 774lbs/351kg 6125XLR-S,SH 20.0 15.1 2092 -20˚F 274lbs/124kg 6151XLR-S,SH 43.5 33.2 1923 -20˚F 454lbs/206kg 6176XLR-S,SH 66.5 48.3 1516/1923 -20˚F 622lbs/282kg Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 6: Installation
If the unit is supplied with casters, no adjustments are available. Ensure the floor where the unit is to be located is level. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 7: Door Reversal Procedures
All single-section units require that the swivel casters be mounted on the front and rigid casters be mounted on the rear. Figure 1. Leg or Caster Installation Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 8: Operation
1 dial number and always allow 8 hours for temperature evaporator returns to normal cooling temperatures (up to 30 stabilization before making any additional adjustments. minutes). Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 9: Evaporator Fan Matrix
Evap Fan On Evap Fan Off Evap Fan On Evap Fan Off Evap Fan On Evap Fan Off Refrigerator Cycles On 3-Min, Off 3-Min Freezer Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 10: Maintenance
The gaskets are “Dart” style and can be pulled out of the grove in the door and new gaskets can be “pressed” back into place. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... - Page 11 Fluorescent Light Bulb Replacement Delfield recommends that fluorescent light bulbs be recycled rather than disposed of. Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
-
Page 12: Wiring Diagrams
L ENNIS 15-APR-2011 TOLERANCES 1. STRIP-TAC ADHESIVE BACKING PROPRIETARY TO THE DELFIELD COMPANY For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com and are not to be disclosed to others .X ± CHECKED: DESCRIPTION or used for purposes other than LABEL,WIRING,1DR,REF,GL .XX ±... - Page 13 CHECKED: DESCRIPTION .X ± or used for purposes other than LABEL,WIRING,2DR,REF,GL For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com .XX ± intended without the written approval MFG: 2. BLACK PRINT ON WHITE PAPER .XXX ±...
- Page 14 LABEL,WIRING,3DR,REF,GL DR, or used for purposes other than .XX ± intended without the written approval For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com MFG: 2. BLACK PRINT ON WHITE PAPER of The Del eld Company. .XXX ±...
- Page 15 6000XL Series Service and Installation Manual Wiring Diagrams: Freezers 6125XL-S, 6125XL-SH Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
- Page 16 (IF USED) (IF USED) DOOR DOOR HINGE HINGE SWITCH SWITCHES DOOR INCANDESCENT INCANDESCENT DOOR SWITCH LIGHT LIGHT SWITCHES COMPRESSOR COMPRESSOR DOOR FRAME HEATERS FRAME HEATERS Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
-
Page 17: Refrigeration Package Diagram
6000XL Series Service and Installation Manual Refrigeration Package Diagram Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... - Page 18 Condensate pan 1702795 2194953 Switch, defrost safety, high limit Solenoid valve, used on remote units 3516041 Condensate pan 1702795 Solenoid valve, used on remote units 3516041 Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
-
Page 19: Replacement Parts
Half door, glass, top right, edge mount hinges 3234617KT Hinge, 1-5/16" Offset with adjustable housing 1701901 Gasket, full door, glass 1701902 Gasket, half door, glass 2194289 Lampholder Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... -
Page 20: Standard Labor Guidelines
6000XL Series Service and Installation Manual Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. • A maximum of 1-hour is allowed to diagnose a defective component. • A maximum of 1-hour is allowed for retrieval of parts not in stock. -
Page 21: Notes
6000XL Series Service and Installation Manual Notes Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com... - Page 22 6000XL Series Service and Installation Manual Notes Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
- Page 23 6000XL Series Service and Installation Manual Notes Delfield ™ ® For customer service, call (800) 733-8829, (800) 733-8821, Fax (888) 779-2040, www.delfield.com...
- Page 24 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (989) 773-7981 or (800) 733-8829 • Fax (989) 773-3210 • www.delfield.com Delfield reserves the right to make changes in design or specifications without prior notice. ©2013 The Delfield Company. All rights reserved. Printed in the U.S.A.
