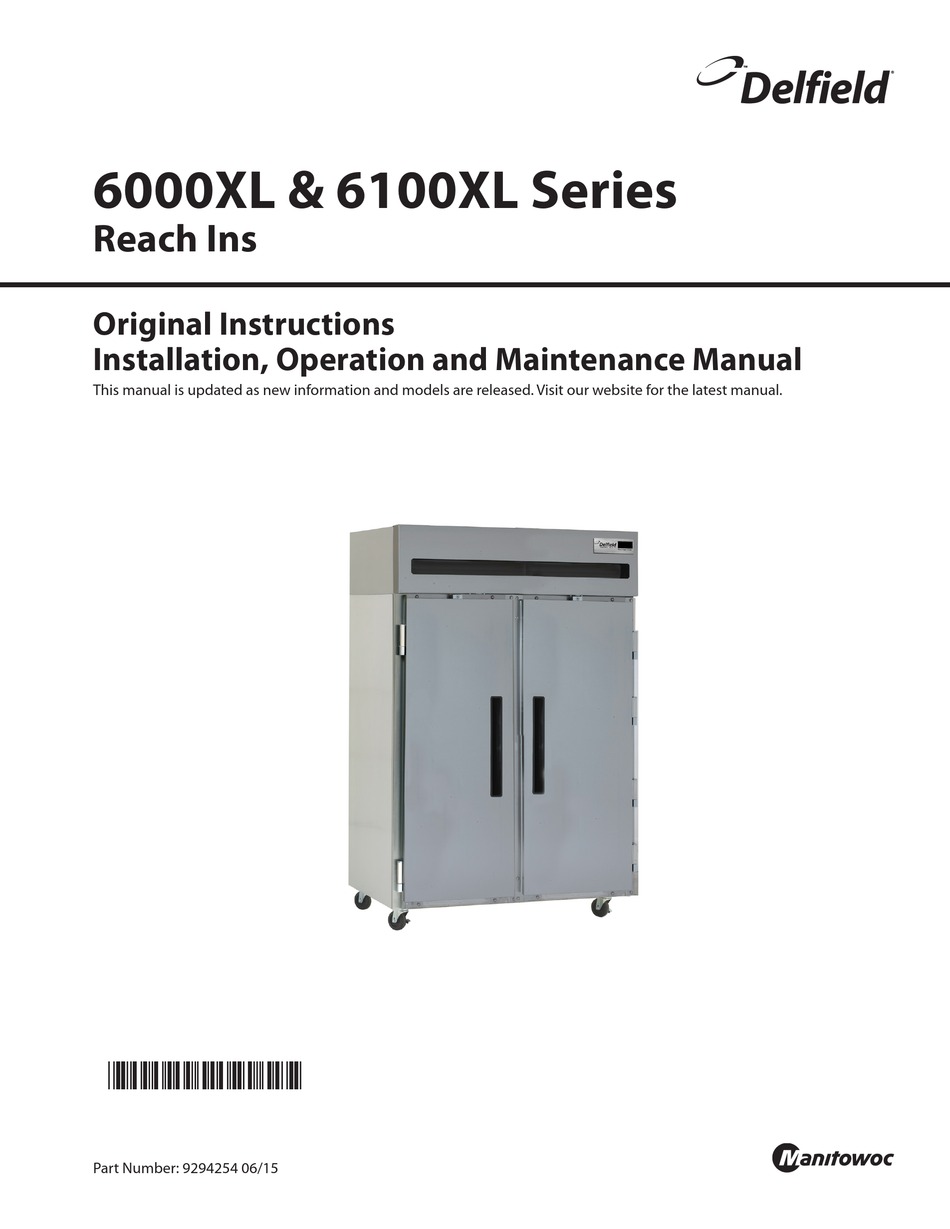

- Page 1 6000XL & 6100XL Series Reach Ins Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. *9294254* Part Number: 9294254 06/15...
- Page 2 6000XL Series Service and Installation Manual Important Warning And Safety Information WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing Maintenance On The Equipment. WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage, Injury Or Death. WARNING Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The Vicinity Of This Or Any Other Appliance.
-
Page 3: Table Of Contents
6000XL Series Service and Installation Manual Contents Receiving & Inspecting Equipment ........... 3 Serial Number Information ............4 Warranty Information ..............4 Regulatory Certifications ............4 Specifications ................5 Installation .................. 6 Door Reversal Procedures ............7 Leg & Caster Installation ............7 Operation .................8-9 Evaporator Fan Matrix .............. -
Page 4: Serial Number Information
This manual covers standard units only. If you have a custom unit, consult the customer service department at the number listed below. ©2015 The Delfield Company. All rights reserved. Reproduction without written permission is prohibited. “Delfield” is a registered trademark of The Delfield Company. Warranty Information Visit http://www.delfield.com/minisite/service/warranty_info to: •... -
Page 5: Specifications
Storage Shelf Required Model Voltage Amps Evap. Temp Shipping Weight Capacity FT 3 Capacity FT 2 BTU/HR 6025XLR-SH,S 20.0 15.1 2092 20˚F 274lbs/124kg 6025XLR-G,GH 20.0 15.1 2092 20˚F 338lbs/153kg 6051XLR-SH,S 43.5 33.2 2488 20˚F 454lbs/206kg 6051XLR-G,GH 43.5 33.2 2488 20˚F... -
Page 6: Installation
6000XL Series Service and Installation Manual Installation Stabilizing Location Some models are supplied on casters for your convenience, Units represented in this manual are intended for indoor use ease of cleaning underneath and for mobility. It is very only. Be sure the location chosen has a floor strong enough to important, however, that the cabinet be installed in a stable support the total weight of the cabinet and contents. -
Page 7: Door Reversal Procedures
6000XL Series Service and Installation Manual Door Reversal Procedures Standard Edge-Mount Hinge Only for Models Ordered With Re-Hinging Option Open door 90˚ and lift door straight up and off hinges. Open door 90˚ and lift door straight up and off hinges. Remove the metal screw covers on each door-side hinge Remove the metal screw covers on each door-side hinge section by sliding it down and off. -
Page 8: Operation
1 dial number and always allow 8 hours for temperature however not at optimal performance. Whenever the display has stabilization before making any additional adjustments. an error read-out, Delfield Service should be contacted. Power Switch At initial start-up or anytime power is disconnected, then... -
Page 9: Evaporator Fan Matrix
6000XL Series Service and Installation Manual Electronic Temperature Control Operation, continued Freezer: Electronic Temperature Control Error Codes Whenever the freezer is plugged in, and the control has The Danfoss control (when digital display is installed) can show completed initializing including the initial defrost cycle (also see four distinct error codes. -
Page 10: Maintenance
6000XL Series Service and Installation Manual Maintenance Never hose down interior or exterior of units with Stainless Steel Care and Cleaning To prevent discoloration or rust on stainless steel several water. This will void the warranty. Wipe interior dry important steps need to be taken. First, we need to understand of any water accumulation. - Page 11 Be sure all drain lines are free of obstructions, typically food product is found blocking drain lines causing water to back up and overflow the drain pans. Fluorescent Light Bulb Replacement Delfield recommends that fluorescent light bulbs be recycled rather than disposed of.
- Page 12 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
