Installation

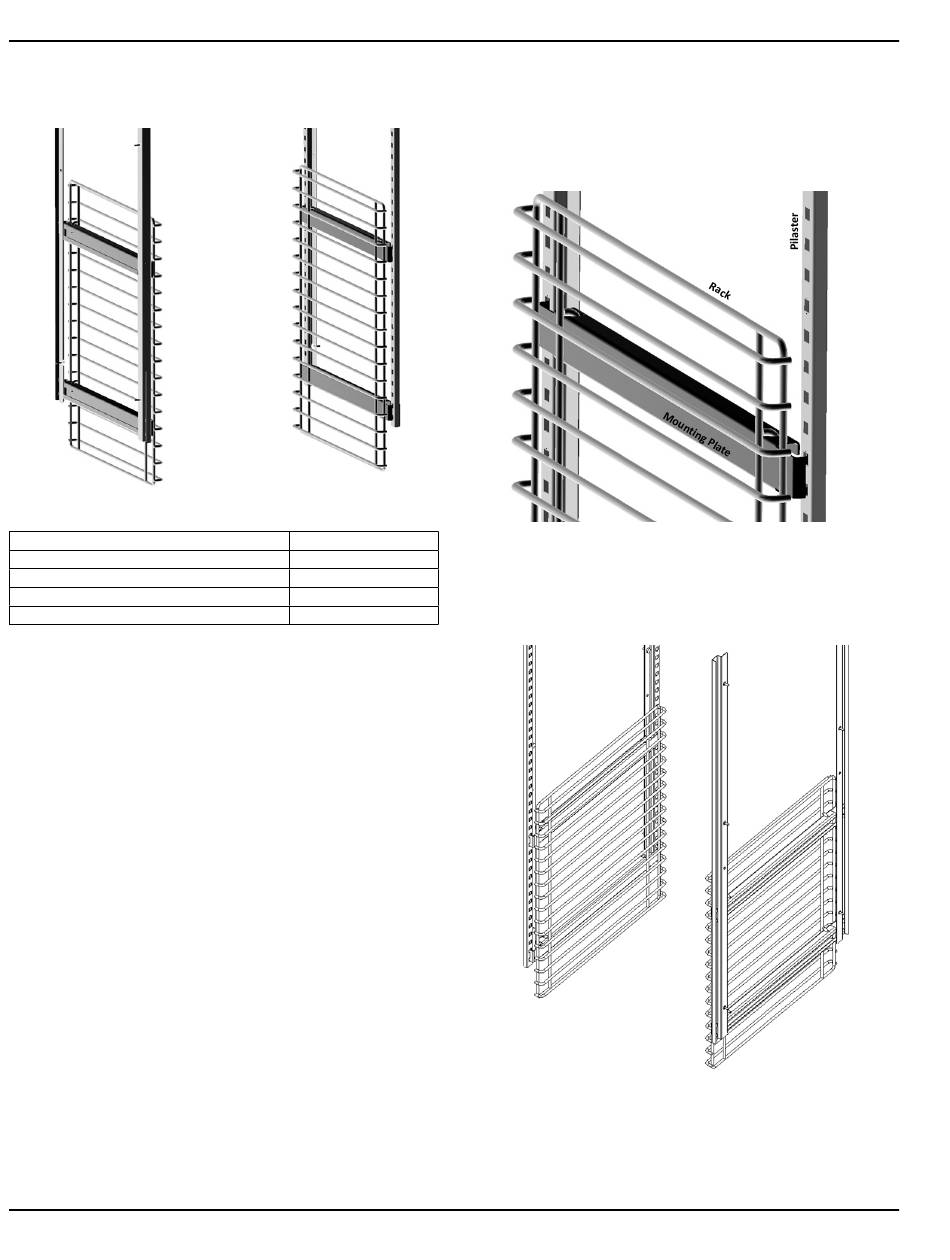

T-4 Rack Slide Installation
Edge Support for 18" x 26" pans
Installed T-4 Tray Slide for 18"x 26" pan
System Name
Slide Style
Support Style
Compatible with 12" x 20" Pans
Compatible with 18" x 26" Pans
• The T-4 rack slide system is designed to support 18" x 26"
pans by the edge of the pan.
• The T-4 rack slide system consists mounting plates for
each side, and a set of racks.
• The racks are formed of heavy gauge metal wire.
• Each set of rack slides is mounted at the same height
across a door section.
• Each rack uses two (2) mounting plates.
T-4 Installation Instructions
1. Start assembling the mounting plates at the bottom of
the door section. Place a bottom mounting plate so that
each set of tabs engages a cutout on the pilaster. Push
the mounting plate down to secure the plate to the
cutouts.
NOTE: A dead-blow hammer is recommended to seat the tab
into the cutouts.
2. On the same side place a top mounting plate with the
bottom edge 20" (51cm) above the top of the lower
mounting plate.
18
3. Repeat steps 1-2 on the opposite side. Verify that all
mounting plates are lined up across the door section.
4. For a full section installation, repeat steps 1-3 for the
upper half.
5. Place each rack on two (2) mounting plates.
6. Verify that all tray slides are lined up evenly.
T-4
Rack
NOTE: An easy check to verify correct installation is to slide a
Edge
pan of the appropriate size into each slide. If the pan is held
No
securely, and is level inside the door section, the installation
Yes
has been successful.
Section 2
Part Number GA_SM 08/18
