Delfield 4400 Series Installation & Operation Manual

Delfield 4400 Series Installation & Operation Manual

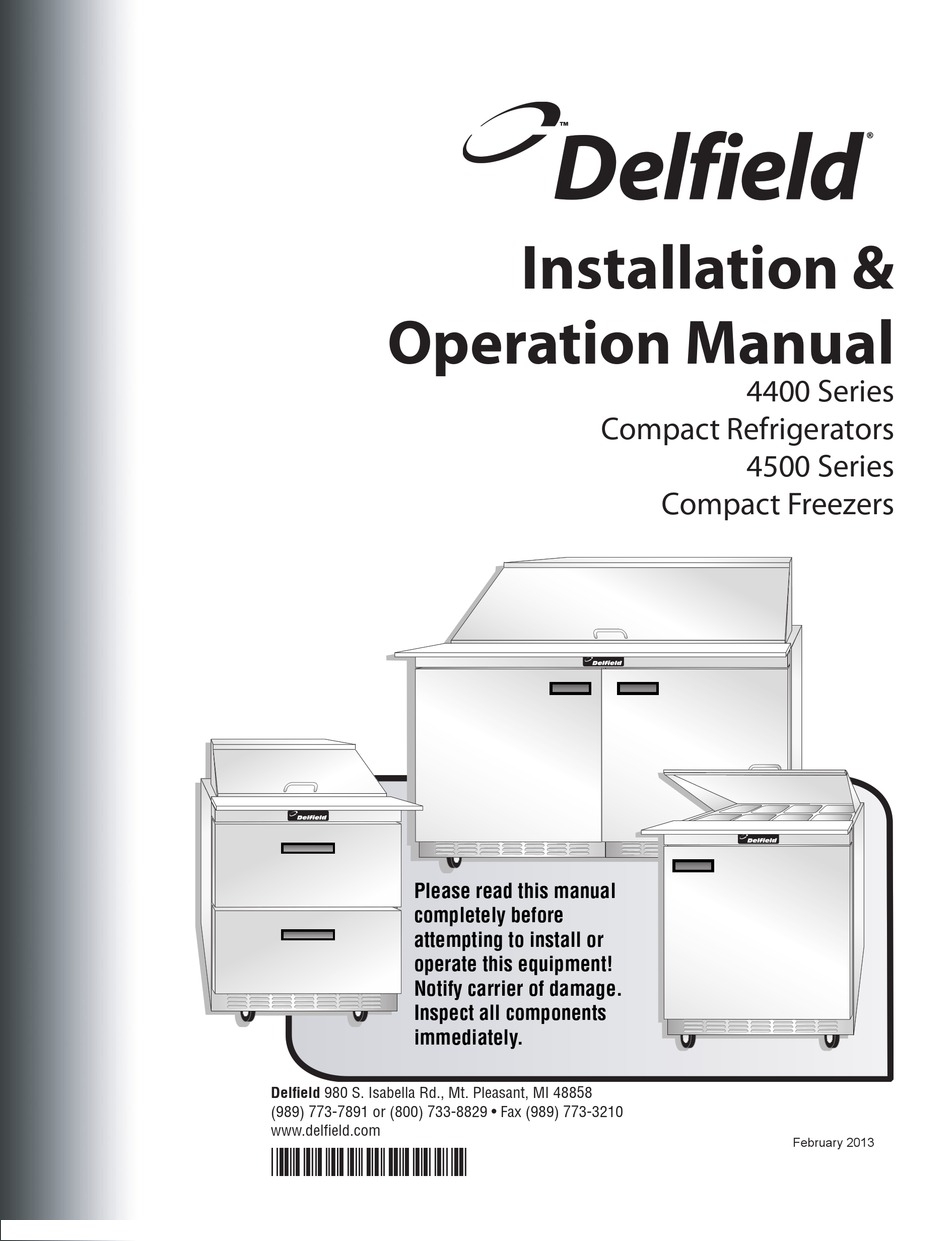

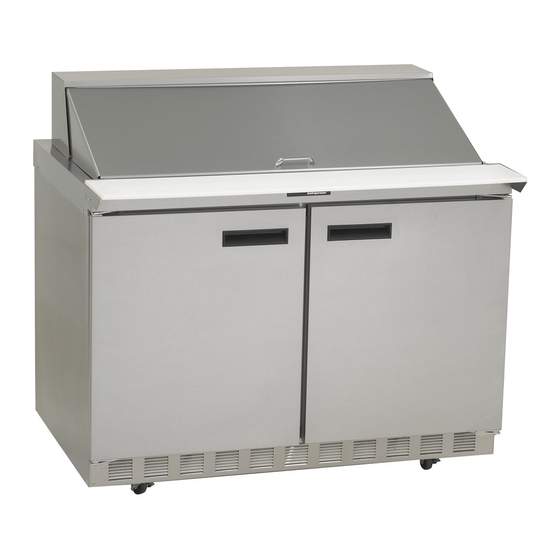

4400 series compact refrigerators, 4500 series compact freezers

Advertisement

Operation Manual

Please read this manual
completely before
attempting to install or
operate this equipment!
Notify carrier of damage.
Inspect all components
immediately.
Delfield 980 S. Isabella Rd., Mt. Pleasant, MI 48858
(989) 773-7891 or (800) 733-8829 • Fax (989) 773-3210
www.delfield.com
*9294098*
Installation &
Compact Refrigerators
Compact Freezers
4400 Series
4500 Series
February 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Delfield 4400 Series

  • Page 1: Operation Manual

    Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage. Inspect all components immediately. Delfield 980 S. Isabella Rd., Mt. Pleasant, MI 48858 (989) 773-7891 or (800) 733-8829 • Fax (989) 773-3210 www.delfield.com February 2013 *9294098*...
  • Page 2 Delfield Important Warning And Safety Information WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing Maintenance On The Equipment. WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage, Injury Or Death. WARNING Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The Vicinity Of This Or Any Other Appliance.
  • Page 3: Table Of Contents

    Compact Refrigerators Contents Receiving And Inspecting The Equipment ........3 Introduction ...................4 Warranty Information ..............4 Regulatory Certifications ...............4 Specifications ................5-10 Installation ................11-12 Location ................11 Inside Cabinet ..............11 Outside Cabinet ..............11 Leveling ................11 Stabilizing ................11 Plumbing ................11 Electrical Connection ............11 Cutting Board Bracket Mounting ..........12 Shelf Installation Instructions ..........12 2-Position Pan Rails Installation Instructions ......12 Operation ................13-14...
  • Page 4: Introduction

    (800) 733-8829. ©2013 The Delfield Company. All rights reserved. Reproduction without written permission is prohibited. “Delfield” is a registered trademark of The Delfield Company. Warranty Information Visit http://www.delfield.com/minisite/service/warranty_info to: • Register your product for warranty.
  • Page 5: Specifications

    Compact Refrigerators Specifications Undercounter Refrigerators Model Description Work H Volume Shelves 1/6 Pan H.P . Refg. Charge NEMA Ship Weight Capacity (oz) Plug (lbs) UC4427N one door 27” 31.5” 34.25” 8.20 3.17 — 5-15P UCD4427N two drawer 27” 31.5” 34.25” 8.20 —...
  • Page 6 Delfield Specifications, continued Salad Top Refrigerator Bases Model Description Work H Volume FT Shelves 1/6 Pan H.P . Refg. Charge NEMA Ship Weight Capacity (oz) Plug (lbs) 4427N-6 one door 27” 31.5” 36” 8.20 3.17 5-15P D4427N-6 two drawer 27”...
  • Page 7 Compact Refrigerators Specifications, continued Mega Top Refrigerated Front Breathers Model Description Work H Volume Shelves 1/6 Pan H.P . Refg. Charge NEMA Ship Weight Capacity (oz) Plug (lbs) 4427N-9M one door 27” 31.5” 36” 8.20 3.17 5-15P D4427N-9M two drawer 27”...
  • Page 8 Delfield Specifications, continued Reduced Work Height Salad Top Refrigerated Front Breathers Model Description Work H Volume Shelves 1/6 Pan H.P . Refg. Charge NEMA Ship Weight Capacity (oz) Plug (lbs) UC4427N-6 one door 27” 31.5” 34.25” 8.20 3.17 5-15P UCD4427N-6 two drawer 27”...
  • Page 9 Compact Refrigerators Specifications, continued Reduced Work Height Mega Top Refrigerated Front Breathers Model Description Work H Volume Shelves 1/6 Pan H.P . Refg. Charge NEMA Ship Weight Capacity (oz) Plug (lbs) UC4427N-9M one door 27” 31.5” 34.25” 8.20 3.17 5-15P UCD4427N-9M two drawer 27”...
  • Page 10: Specifications

    Delfield Specifications, continued Freezers Flat top freezer bases Model Description Work H Volume Shelves H.P . Refg. Charge NEMA Ship (oz) Plug Weight 4532N one door 32” 31.5” 36” 8.80 3.88 5-15P 245lbs (81.3cm) (80.0cm) (91.4cm) (111kg) D4532N two drawer 32”...
  • Page 11: Installation

    Outside Cabinet cabinet to begin operation. Do not use an adapter to connect 4400 Series equipment door and drawer models to a two-pronged outlet. The three-pronged outlet provides These cabinets have Delfield’s “front-breathing” design. They...
  • Page 12: Cutting Board Bracket Mounting

    Delfield Installation, continued Cutting Board Bracket Mounting Shelf Installation Instructions Gather brackets, cutting board and screwdriver. Notice the shelves have four alignment pins on the underside and a backstop on the top back. Open the door to install the center bracket.
  • Page 13: Operation

    Compact Refrigerators Refrigerated Cabinet Operation Important Information on 4427 Solid Top Models: Power Switch Salad and Mega top 4460, 4464, and 4472 models are equipped The unit is Energy Star Version II compliant. During normal with a power disconnect switch located at the rear of the unit operation the evaporator fan pulses independently of the just below the thermostat control knob.
  • Page 14: Operation

    Delfield Refrigerated Cabinet Operation, continued Defrosting of Flat Top Models Except 4427 Service Alert During normal operation the evaporator fan may cycle Refrigerators defrost automatically with every cycle of the and/or pulse independently of the compressor. Consult compressor. The water generated is routed to a pan on the...
  • Page 15: Freezer Temperature Control

    Compact Refrigerators Freezer Cabinet Operation Freezer Automatic Defrost The electronic temperature control constantly monitors box temperature as well as evaporator coil temperature to The control also monitors compressor total running time maintain consistent product temperatures. and will enter a defrost cycle after total compressor running At initial start-up or anytime power is disconnected, then time is greater than 4-hours since the last defrost cycle OR reconnected to the unit, the control will delay all operations...
  • Page 16: Maintenance

    Delfield Maintenance CLEANING THE CONDENSER COIL The thermostat must be turned to OFF and the cabinet disconnected from the power source The condenser coil requires regular cleaning every 90 days whenever performing service, maintenance (recommended). In some instances you may find a large functions or cleaning the refrigerated area.
  • Page 17: Doors/Hinges

    If water has collected underneath the cabinet, check the condensate evaporator drain tube to be sure it is still located Delfield recommends that fluorescent light bulbs be recycled inside the drain pan. Leveling the cabinet is important as it rather than disposed of.
  • Page 18: Wiring Diagram

    Delfield Wiring Diagram, 4427 Flat Top Refrigerator 9294473 Wiring Diagram, All Remaining Flat Top Refrigerators NEMA 5-15P Supply Cord and Plug furnished BLACK WHITE EVAPORATOR FAN TEMPERATURE CONTROL CONDENSING UNIT...
  • Page 19: Wiring Diagram

    Compact Refrigerators Wiring Diagram, Salad & Mega Top Refrigerators NEMA 5-15P Supply Cord and Plug furnished POWER SWITCH (Select models only) EVAPORATOR FANS TEMPERATURE CONTROL Temperature Control Knob Access Power Switch Access (4460, 4464 & 4472 Salad and Mega top models) CONDENSING UNIT Wiring Diagram, Freezers...
  • Page 20: Standard Labor Guidelines

    Delfield Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. A maximum of 1-hour is allowed to diagnose a defective component. A maximum of 1-hour is allowed for retrieval of parts not in stock.
  • Page 21: Notes

    Compact Refrigerators Notes...
  • Page 22 Delfield Notes...
  • Page 23 Compact Refrigerators Notes...
  • Page 24: Installation Date

    980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (989) 773-7981 or (800) 733-8829 • Fax (989) 773-3210 • www.delfield.com Delfield reserves the right to make changes in design or specifications without prior notice. ©2013 The Delfield Company. All rights reserved. Printed in the U.S.A.
