Section 3

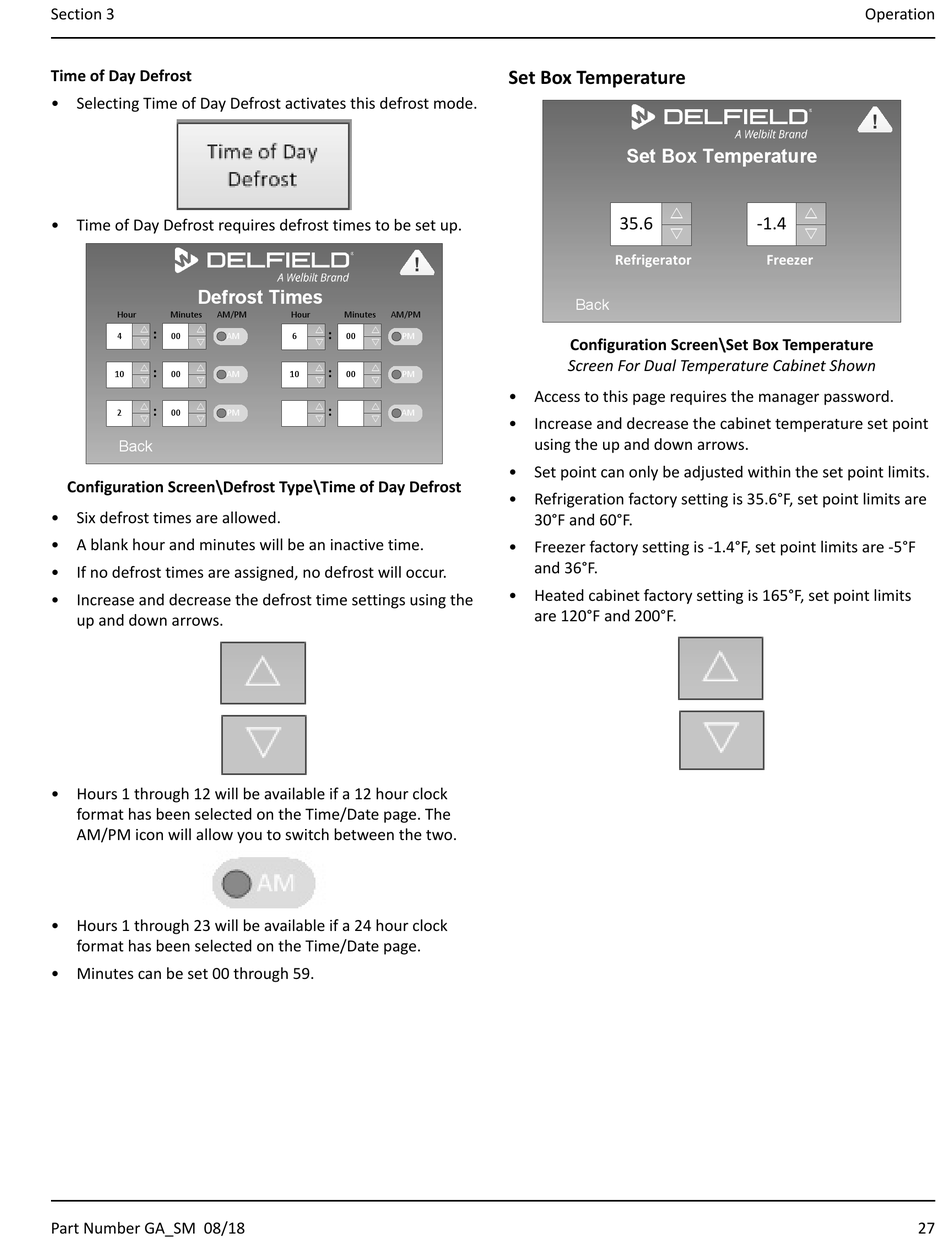

Time of Day Defrost
• Selecting Time of Day Defrost activates this defrost mode.
• Time of Day Defrost requires defrost times to be set up.
Defrost Times
Hour Minutes AM/PM
r : r
4 00 AM
s s
r : r
10 00 AM
s s
r : r
2 00 PM
s s
Back
Configuration Screen\Defrost Type\Time of Day Defrost
• Six defrost times are allowed.
• A blank hour and minutes will be an inactive time.
• If no defrost times are assigned, no defrost will occur.
• Increase and decrease the defrost time settings using the
up and down arrows.
• Hours 1 through 12 will be available if a 12 hour clock
format has been selected on the Time/Date page. The
AM/PM icon will allow you to switch between the two.
• Hours 1 through 23 will be available if a 24 hour clock
format has been selected on the Time/Date page.
• Minutes can be set 00 through 59.
Part Number GA_SM 08/18
!
Hour Minutes AM/PM
r : r
6 00 PM
s s
r : r
10 00 PM
s s
r : r
AM
s s

Set Box Temperature

Set Box Temperature
r
35.6
s
Refrigerator
Back
Configuration Screen\Set Box Temperature
Screen For Dual Temperature Cabinet Shown
• Access to this page requires the manager password.
• Increase and decrease the cabinet temperature set point
using the up and down arrows.
• Set point can only be adjusted within the set point limits.
• Refrigeration factory setting is 35.6°F, set point limits are
30°F and 60°F.
• Freezer factory setting is -1.4°F, set point limits are -5°F
and 36°F.
• Heated cabinet factory setting is 165°F, set point limits
are 120°F and 200°F.
Operation
!
r
-1.4
s
Freezer
27
