Summary of Contents for Delfield CoolScapes GC Series

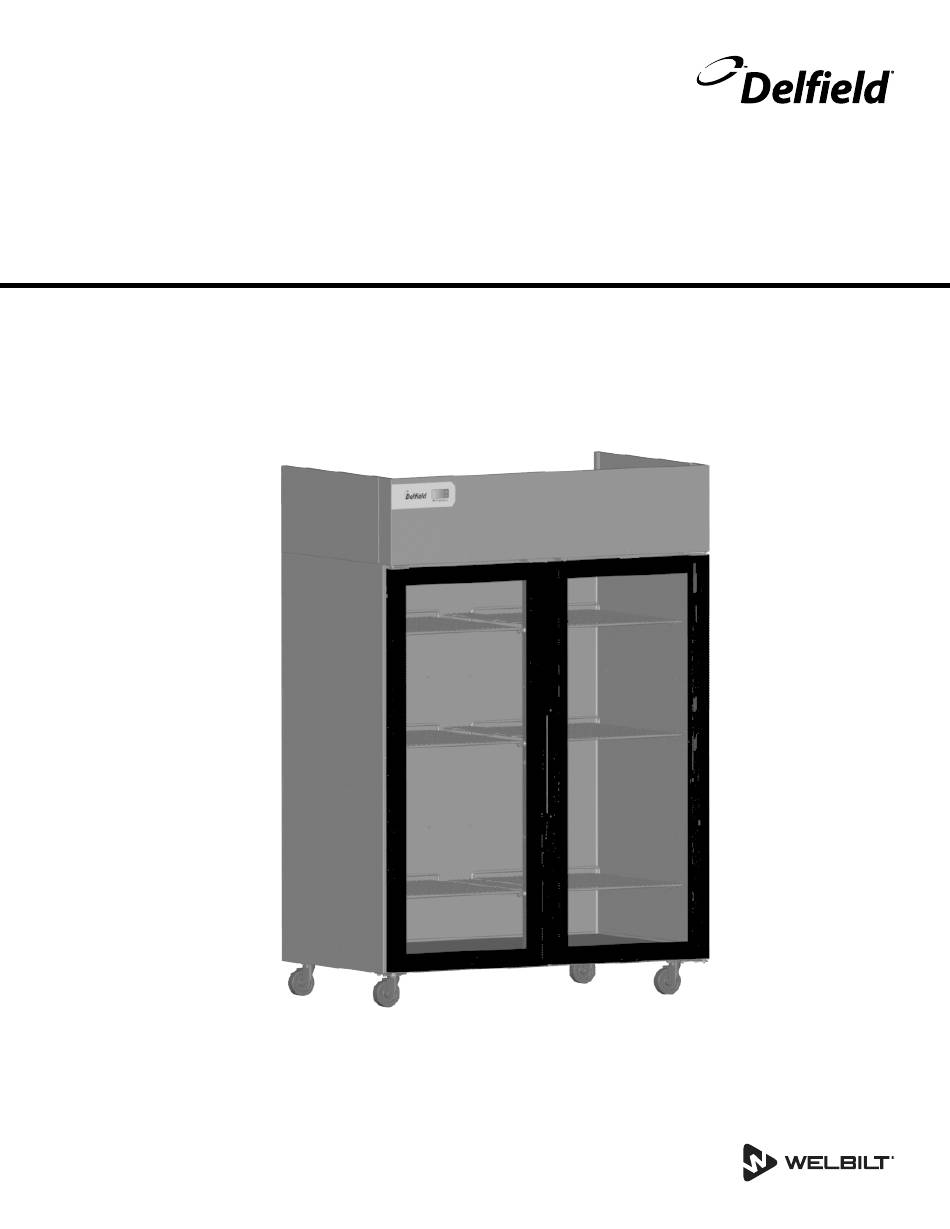

- Page 1 Series GC, GB & GBS Reach-Ins CoolScapes™ Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9294839 03/17...
- Page 2 Safety Notices Warning Do not use electrical appliances or accessories other Warning than those supplied by the manufacturer. Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure Warning to follow instructions in this manual can cause property Use caution when handling metal surface edges of all damage, injury or death.
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ........................4 Serial Number Information ....................4 Warranty Information ......................4 Regulatory Certifications ....................4 Section 2 Installation Location ..........................5 Weight of Equipment ......................6 Clearance Requirements ....................6 Dimensions ......................... 7 Electrical Service ........................ -
Page 4: General Information
Always have the serial number of your unit available GBSR1P-G(H) GBSR1P-S(H) when calling for parts or service. GCR1P-G(H) GCR1P-S(H) Warranty Information Visit 2 Section Refrigerators http://www.delfield.com/warranty to: Glass Doors Solid Doors GBR2P-G(H) GBR2P-S(H) • Register your product for warranty. GBSR2P-G(H) GBSR2P-S(H) •... -
Page 5: Installation
Section 2 Installation The location selected for the equipment must meet the DANGER following criteria. If any of these criteria are not met, select Installation must comply with all applicable fire and another location. health codes in your jurisdiction. • The location MUST be level, stable and capable of supporting the weight of the equipment. -
Page 6: Weight Of Equipment
Installation Section 2 Weight of Equipment Clearance Requirements Description Models Weight DANGER 1 Section Refrigerators Minimum clearance requirements are the same for Glass Doors GBR1P-G(H), noncombustible locations as for combustible locations. GBSR1P-G(H), 236 lbs (107 kg) The flooring under the appliance must be made of a GCR1P-G(H) noncombustible material. -
Page 7: Dimensions
Section 2 Installation Dimensions Model Volume 1 Section Refrigerators Model Length Depth Height GBR1P-G(H), 21ft 1 Section Refrigerators GBR1P-S(H), (595L) GBR1P-G(H), 27.34” 32.44” 79.50” GBSR1P-G(H), (70cm) (82cm) (202cm) GBR1P-S(H), GBSR1P-S(H), GBSR1P-G(H), GCR1P-G(H), GBSR1P-S(H), GCR1P-S(H) GCR1P-G(H), 2 Section Refrigerators GCR1P-S(H) 46ft GBR2P-G(H), 2 Section Refrigerators GBR2P-S(H),... -
Page 8: Electrical Service
Installation Section 2 Electrical Service • A separate fuse/circuit breaker must be provided for each unit. DANGER • Check all green ground screws, cables and wire connections to verify they are tight before start-up. Check all wiring connections, including factory terminals, before operation. -
Page 9: Drain Connections
Section 2 Installation Drain Connections Heat of BTU/Hour Model Rejection Charge Capacity Warning (BTU) 3865 118g Moisture collecting from improper drainage can create a Full Height Doors GBR3P-S, slippery surface on the floor and a hazard to employees. GBSR3P-S, It is the owner’s responsibility to provide a container or GCR3P-S outlet for drainage. -
Page 10: Leveling
Installation Section 2 Leveling To install the legs or casters: 1. Remove unit from skid. After the cabinet has been placed in the desired location, cabinets with legs must be leveled. Level units from front to NOTE: The bolts used to hold the unit to the skid should back and from side to side. - Page 11 Section 2 Installation Shelf Installation APPLICABLE TO GB MODELS 1. Insert the clips into the pilaster holes at the desired APPLICABLE TO GC MODELS shelf heights. 1. If the shelves are attached to the shelf pins, detach the shelves and set them aside. Cut zip ties if necessary. 2.
-
Page 12: Reversible Door Instructions
Installation Section 2 Reversible Door Instructions APPLICABLE TO FULL DOOR BETTER MODELS 1. Open the door. 2. Remove two bolts securing the hinge bracket above the door. 11. Locate the provided alternate top hinge bracket. 12. Place the hinge bracket over the top hinge pin. 13. -
Page 13: Pilaster Clip Kit Installation Instructions
Section 2 Installation Pilaster Clip Kit Installation Instructions APPLICABLE TO GC MODELS 4. Insert the clips into the pilaster holes at the desired shelf heights. 1. If the shelves are attached to the shelf pins, detach and set them aside. Cut zip ties if necessary. 2. -
Page 14: New Bottom Hinge Cartridge Installation
Installation Section 2 New Bottom Hinge Cartridge Installation 1. Install the new cartridge into the door as received. The new cartridge will be in the CLOSED position. 2. As you unload the hinge tension be careful to hold on tight because you should feel the strong spring tension as you rotate the hinge. -
Page 15: T-1 Tray Slide Installation
Section 2 Installation T-1 Tray Slide Installation T-1 Installation Instructions 1. For each pan, mount a pair of tray slides; one on each Edge Support for 18” x 26” pans side of the door section at the same height. Mount the tray slides onto the pilasters by sliding the tray slide tabs down into the cutouts. -
Page 16: T-2 Tray Slide Installation
Installation Section 2 T-2 Tray Slide Installation Universal Bottom Support for 12” x 20” and 18” x 26” pans T-2 Tray Slide System T-2 Installation Instructions 1. For each pan, two (2) tray slides will be used. Each tray slide must have another tray slide at the same height, on the opposite side of the door section. -
Page 17: Rack Slide Installation
Section 2 Installation T-3 Tray Slide Installation T-3 Installation Instructions 1. For each pan, two (2) tray slides will be used. Each tray Edge Support for 12” x 20” pans slide must have another tray slide at the same height, on the opposite side of the door section. -
Page 18: T-4 Rack Slide Installation
Installation Section 2 T-4 Rack Slide Installation 3. Repeat steps 1-2 on the opposite side. Verify that all mounting plates are lined up across the door section. Edge Support for 18” x 26” pans 4. For a full section installation, repeat steps 1-3 for the upper half. -
Page 19: Operation
Section 3 Operation R290 Controls/Programming/Settings DANGER R290 Refrigerator Do not operate any appliance with a damaged cord or plug. All repairs must be performed by a qualified Refrigerators are factory set at mid-range to maintain about service company. 38ºF (3ºC) box temperature. 1. -
Page 20: R290 Temperature Control & Display
Operation Section 3 R290 Freezer R290 TEMPERATURE CONTROL & DISPLAY Freezers are factory set at mid-range to maintain about -2ºF (-19ºC) box temperature. 1. At initial start-up or anytime power is disconnected, then reconnected to the unit, the control will go into defrost mode 2. -
Page 21: R290 Evaporator Fan Operation
Section 3 Operation R290 Temperature Control & Display Operation R290 Power Switch Press upper or lower right button. Two and three door units are equipped with a power disconnect switch located behind the louvered end panel. • Display show actual set-point (blinking). Switch must be in the on position for the unit to operate. -
Page 22: R290 Changing Display From Fahrenheit To Celsius On Erc112 Control
Operation Section 3 R290 CHANGING DISPLAY FROM FAHRENHEIT TO 6. -F should be displayed indicating Fahrenheit. Use CELSIUS ON ERC112 CONTROL the down arrow to change it to -C for Celsius and hit the stand-by button (lower left button) to enter the 1. -
Page 23: Maintenance
Section 4 Maintenance Cleaning and Sanitizing Procedures DANGER It is the responsibility of the equipment owner to Caution perform a Personal Protective Equipment Hazard Maintenance and servicing work other than cleaning as Assessment to ensure adequate protection during described in this manual must be done by an authorized maintenance procedures. -
Page 24: Interior Cleaning
Maintenance Section 4 INTERIOR CLEANING EXTERIOR CLEANING Notice Notice When cleaning interior and exterior of unit, care should Never use an acid based cleaning solution on exterior be taken to avoid the front power switch and the rear panels! Many food products have an acidic content, power cord. -
Page 25: Drain
Section 4 Maintenance DRAIN DOORS/HINGES Each unit has a drain located inside the unit that removes Over time and with heavy-use doors, the hinges may the condensation from the evaporator coil and routes it become loose. If this happens, tighten the screws that to an external condensate evaporator pan. - Page 26 Maintenance Section 4 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294839 03/17...
-
Page 27: Troubleshooting
Section 5 Troubleshooting Problem -> Cause -> Correction Chart Problem Cause Correction Cabinet not running Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. Power cord unplugged. Plug in power cord. Thermostat set too high. Set thermostat to lower temperature. Main power switch turned off. - Page 28 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Welbilt equipment comes with KitchenCare® and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
