Installation

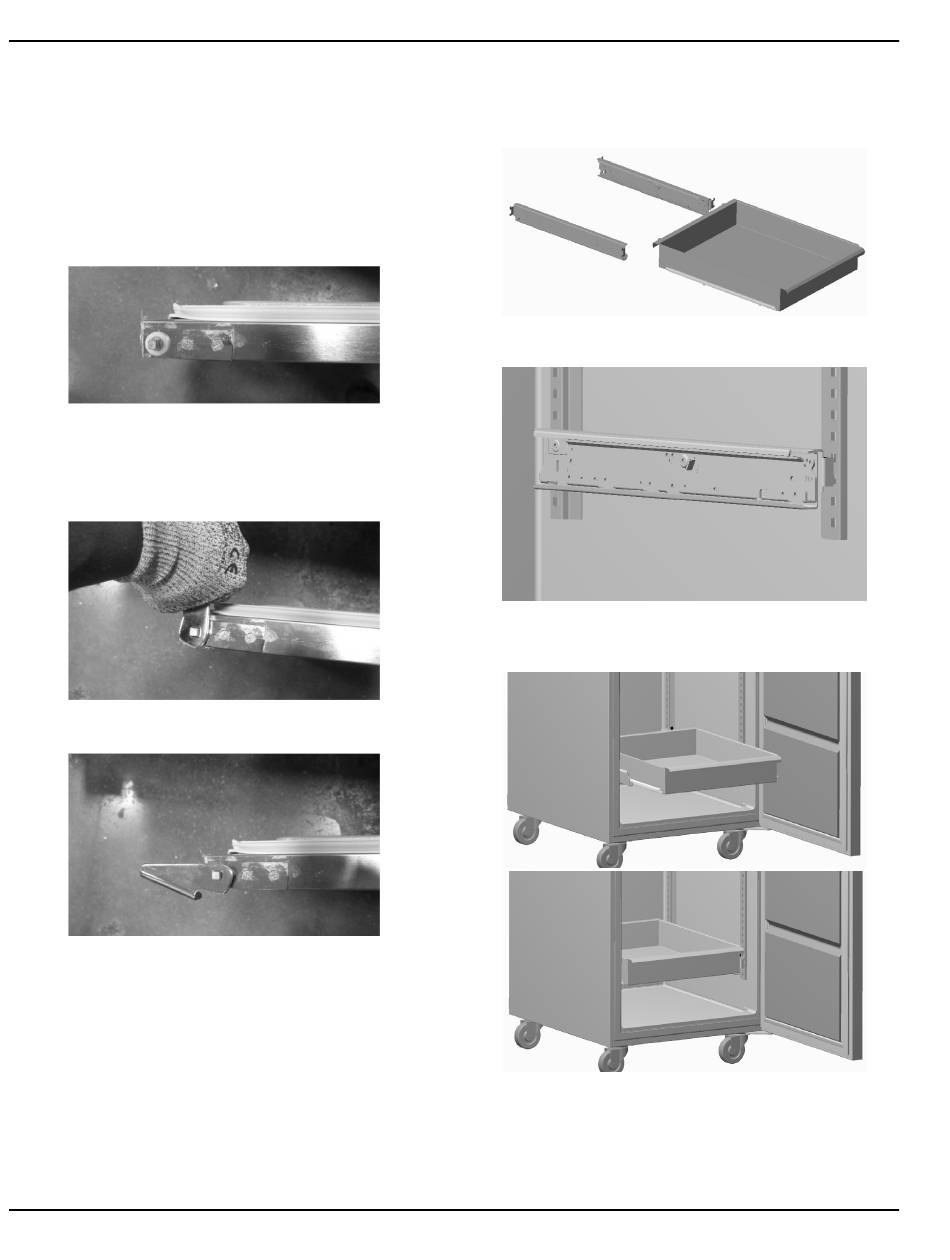

New Hinge Cartridge Installation
• Full doors have a cartridge hinge on both the bottom and
top of the door.
• Half doors only have one cartridge hinge, the bottom
hinge of the bottom half door and the top hinge of the
top half door.
1. Install the new cartridge into the door as received. The
new cartridge will be in the CLOSED position.
2. As you unload the hinge tension be careful to hold on
tight because you should feel the strong spring tension
as you rotate the hinge. Place the hinge bracket on the
square hinge pin and rotate it ½ turn to the outside of
the door.
3. After the hinge has been rotated, it will now be in the
OPEN position and NOT under spring tension.
4. Mount the door back onto the cabinet with the door
OPEN. The door should now close properly.
5. Begin closing the door, the door should finish closing
on it's own. If the door stays open remove the door and
hinge bracket.
6. Using the hinge bracket rotate the square peg on the
cartridge until you feel tension and resistance if you
move the hinge in either direction. The hinge is now in
the CLOSED position. Repeat instructions starting with
step 2.
14
Accessory Interior Drawer Installation
1. Accessory drawer installation requires two tracks and a
drawer.
2. Hang the drawer tracks on the pilaster strips across from
each other. Verify the tracks are lined up evenly.
3. Slide the drawer box into the tracks slowly.
When the drawer box is half way in it will hit a STOP.
Lift the front of the drawer up slightly to continue.
Section 2
Part Number GA_SM 08/18
