Delfield 6000XL Series Service, Installation And Care Manual
Reach ins
Hide thumbs
Also See for 6000XL Series:
- Installation, operation and maintenance manual (24 pages) ,
- Brochure & specs (6 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Delfield 6000XL Series
Summary of Contents for Delfield 6000XL Series

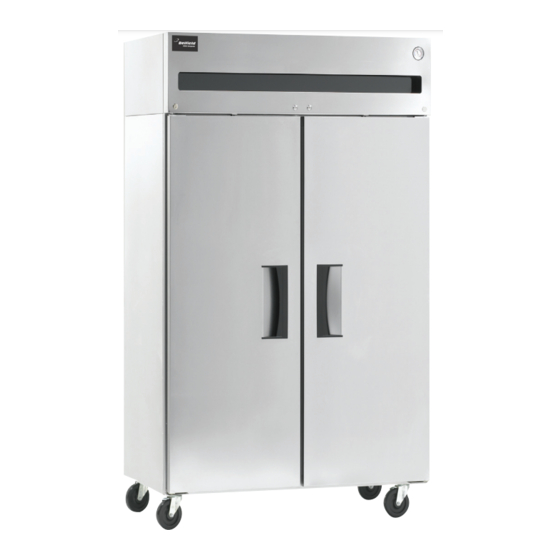

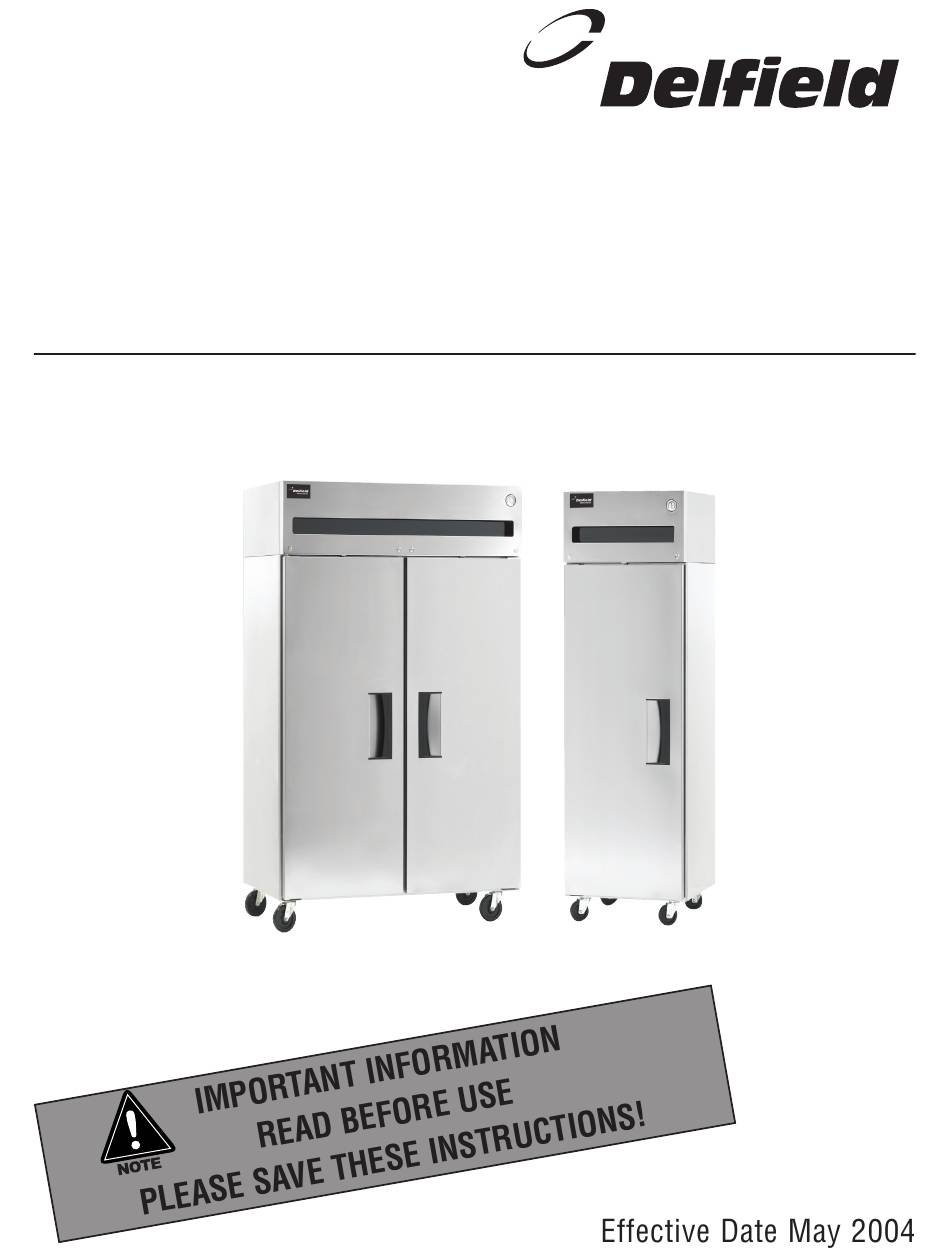

- Page 1 6000XL & 6100XL Series Reach Ins Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all components immediately. See page 2. Refrigerators and Freezers...
-
Page 2: Table Of Contents
Retain all crating material until an inspection has been opening, there is concealed damage to the equipment made or waived. notify the carrier. Notification should be made verbally For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 3: Specifications
-15° 454 LBS — 6176XL-SR 66.5 48.3 3501 -15° 622 LBS — 6176XL-SHR 66.5 48.3 3501 -15° 622 LBS — *Recommended; will vary with refrigerant used, contact factory. For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 4: Installation
If the unit is supplied with casters, no adjustments are available. Ensure the floor where the unit is to be located is level. For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 5: Operation
70°F (27°C). When this temperature is sensed by the defrost limit control, the defrost control switches to refrigeration mode. For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 6: Maintenance
Clean the condenser with a vacuum cleaner or stiff brush. If extremely dirty, a commercially available condenser cleaner may be required. For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... - Page 7 Be sure all drain lines are free of obstructions, typically food product is found blocking drain lines causing water to back up and overflow the drain pans. For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com...
-
Page 8: Programming Guide
BACK-UP DEFROST *Factory settings highlighted POINTER Removing of the top panel or timer cover may expose live electrical parts. Disconnect power supply before servicing. (Figure 1) (Figure 2) For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 9: Wiring Diagrams
EVAPORATOR FAN(S) BLUE WHITE JAMB SWITCH(ES) (1 PER DOOR) BLUE WHITE BLACK INTERIOR LIGHT BLACK THERMOSTAT COMP BLACK BROWN WHITE SWITCH WHITE BALLAST BLACK FLUORESCENT LAMP L1 G N For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 10: Wiring Diagrams
DEFROST HEATER YELLOW WHITE FRAME HEATER BLACK WHITE 115V-1PH-60HZ POWER SUPPLY ( 2 & 3 DOOR FREEZER ) CORD & PLUG PROVIDED AS STANDARD JAMBSWITCH SHOWN WITH DOORS CLOSED For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 11: Parts Listing
Top right or left 3237497 Expansion valve 3516271 Shelves RH 3978169 Door lock 3234752 Bottom right 3237491 Evap. coil 3516282 Rocker switch 5066440 Temp control 2194224 Bottom left 3237494 For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 12: 6025Xl-Sr 115
With brake 3234779 6076XL-SHR Evap coil R-404A 3516283 Without brake 3234778 DESCRIPTION PART # Dial thermometer 3516323 Spring hinge 3237509 Gasket 1701280 Hinge brackets: Top right or left 3237497 For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 13: 6025Xl-G 115
Wire shelf left 3978168 Shelf clip 5189779 DESCRIPTION PART # Wire shelf left 3978168 Wire shelf right 3978169 Rocker switch 2190154 Gasket M3234849 Wire shelf right 3978169 Rocker switch 5066440 For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 14: 6051Xl-Gh 115
NOTE: For ALL Models 56” fan blade 3516172 Lampholder 2194289 Expansion valve 3516316 Filter Drier Part #3516382 Expansion valve 3516273 18” lamp 2194290 Dial thermometer 3516323 Shelves LH 3978168 For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delfield.com... -
Page 15: Standard Labor Guidelines
6000XL Series Service and Installation Manual STANDARD LABOR GUIDELINES TO REPAIR OR REPLACE PARTS ON DELFIELD EQUIPMENT Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage. • A maximum of 1-hour is allowed to diagnose a defective component. -
Page 16: Standard Warranties
All claims for replacement parts or repair kits must be made through a Delfield Parts Depot or an authorized Delfield dealer. The defective part invoice must be returned to Delfield within 15 days after the date of service to be eligible for warranty coverage. All claims must include the model number, serial number, an original date of installation and customer identification. - Page 17 Unit or any exhaust system. return costs if the Unit or part thereof was defective. Delfield shall not be liable in any manner for any default or delay in The term “Original Purchaser” as used herein means that person, firm, performance hereunder caused by or resulting from any contingency association, or corporation for whom the Unit was originally installed.
- Page 18 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (989) 773-7981 or (800) 733-8829 • Fax (989) 773-3210 • www.delfield.com Delfield reserves the right to make changes in design or specifications without prior notice. ©2004 The Delfield Company. All rights reserved. Printed in the U.S.A.
