D7
D5

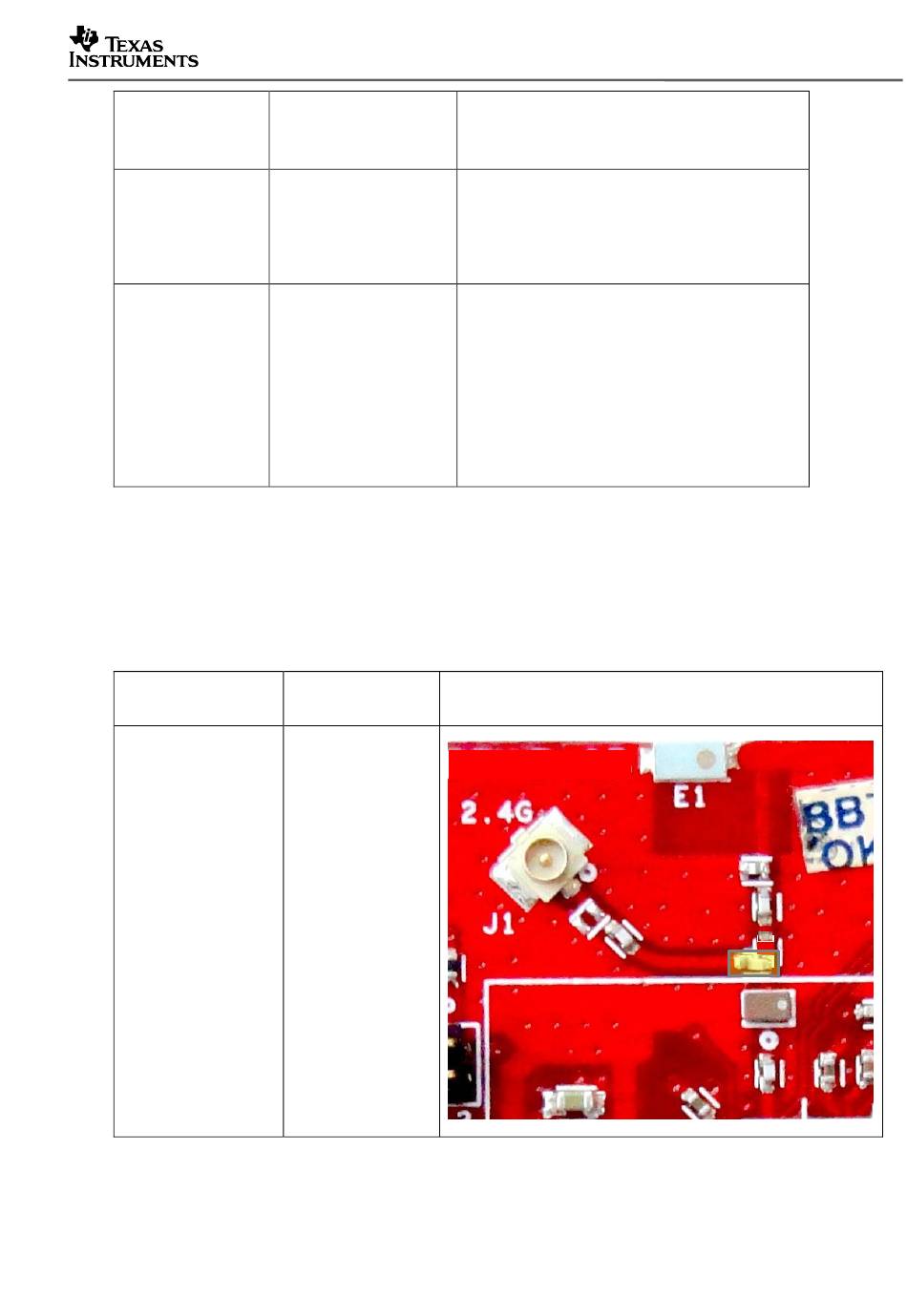

3.6 Conducted testing
The board is by default configured for radiated measurement using the on-board chip
antenna. For conducted testing in the lab the following changes needs to be done on the
board.
Mode
Conducted test
using U.FL
nHIB
Power
Change
C4 = 10pF
C2 = DNP
TI Proprietary Information - Strictly Private
CC3100BOOST User Guide
GPIO_08.
LED glows when GPIO_08 goes low.
Green LED
Glows when the CC3100 device is
enabled using nHIB.
RED LED to indicate the power line
status.
Note : This LED can glow if the board is
powered from any of the GPIO being
high, and the Vcc is un-connected. This
is not a valid state and should be
avoided.
