Sense on
Power
RESET
GPIO13
RESET
BUTTON

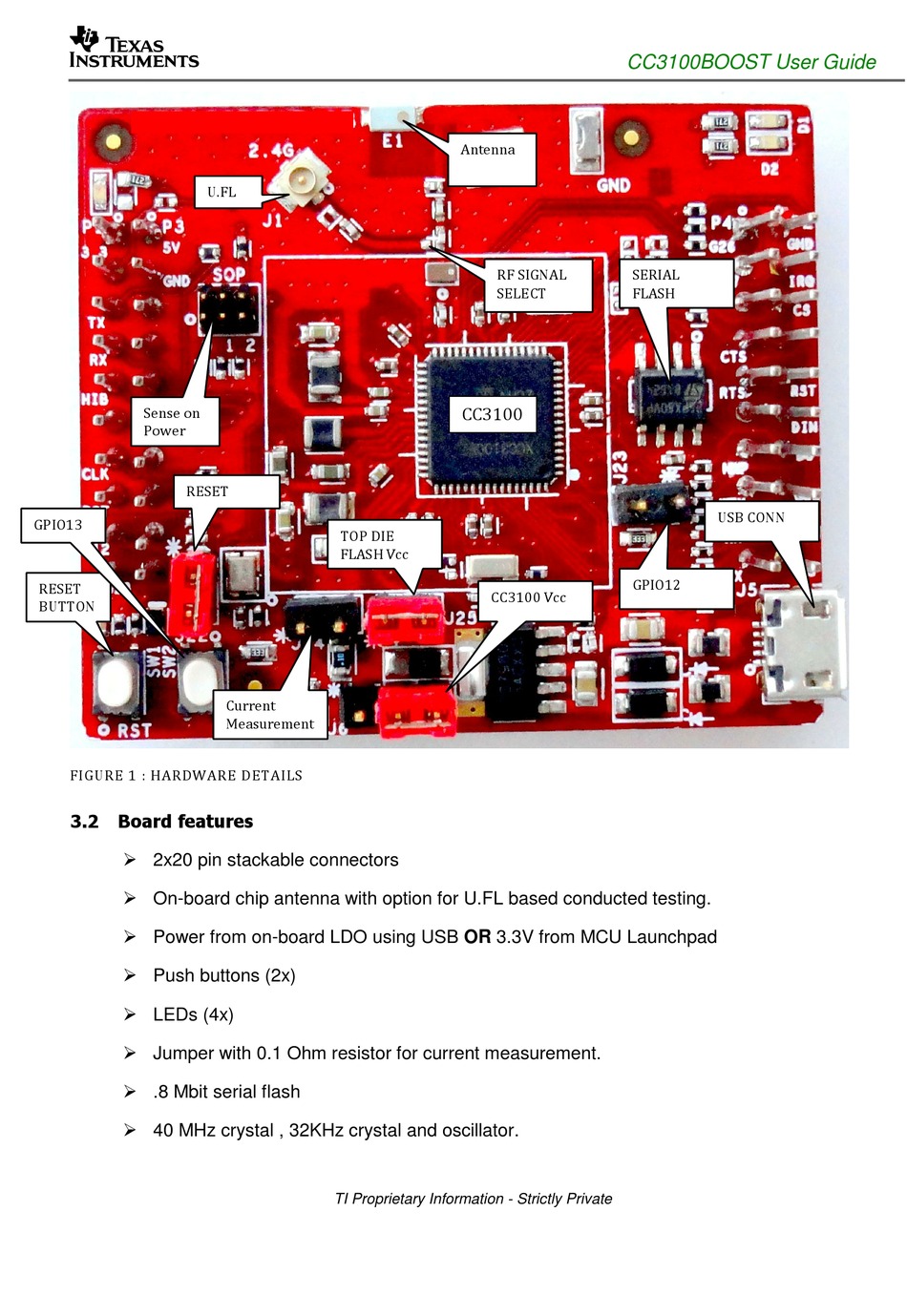

FIGURE 1 : HARDWARE DETAILS

3.2 Board features

 2x20 pin stackable connectors
 On-board chip antenna with option for U.FL based conducted testing.
 Power from on-board LDO using USB OR 3.3V from MCU Launchpad
 Push buttons (2x)
 LEDs (4x)
 Jumper with 0.1 Ohm resistor for current measurement.
 .8 Mbit serial flash
 40 MHz crystal , 32KHz crystal and oscillator.
U.FL
TOP DIE
FLASH Vcc
Current
Measurement
TI Proprietary Information - Strictly Private
CC3100BOOST User Guide
Antenna
RF SIGNAL SERIAL
SELECT FLASH
CC3100
GPIO12
CC3100 Vcc
USB CONN
