5.2 Connecting to an experimenter's board.
The Boosterpack could be connected to an experimenters board like the MSP430 FRAM
experimenter's board using an EM Adapter board.
The EM adapter board converts the EM connectors to the standard 2x20 pin connectors of
the booster pack headers.

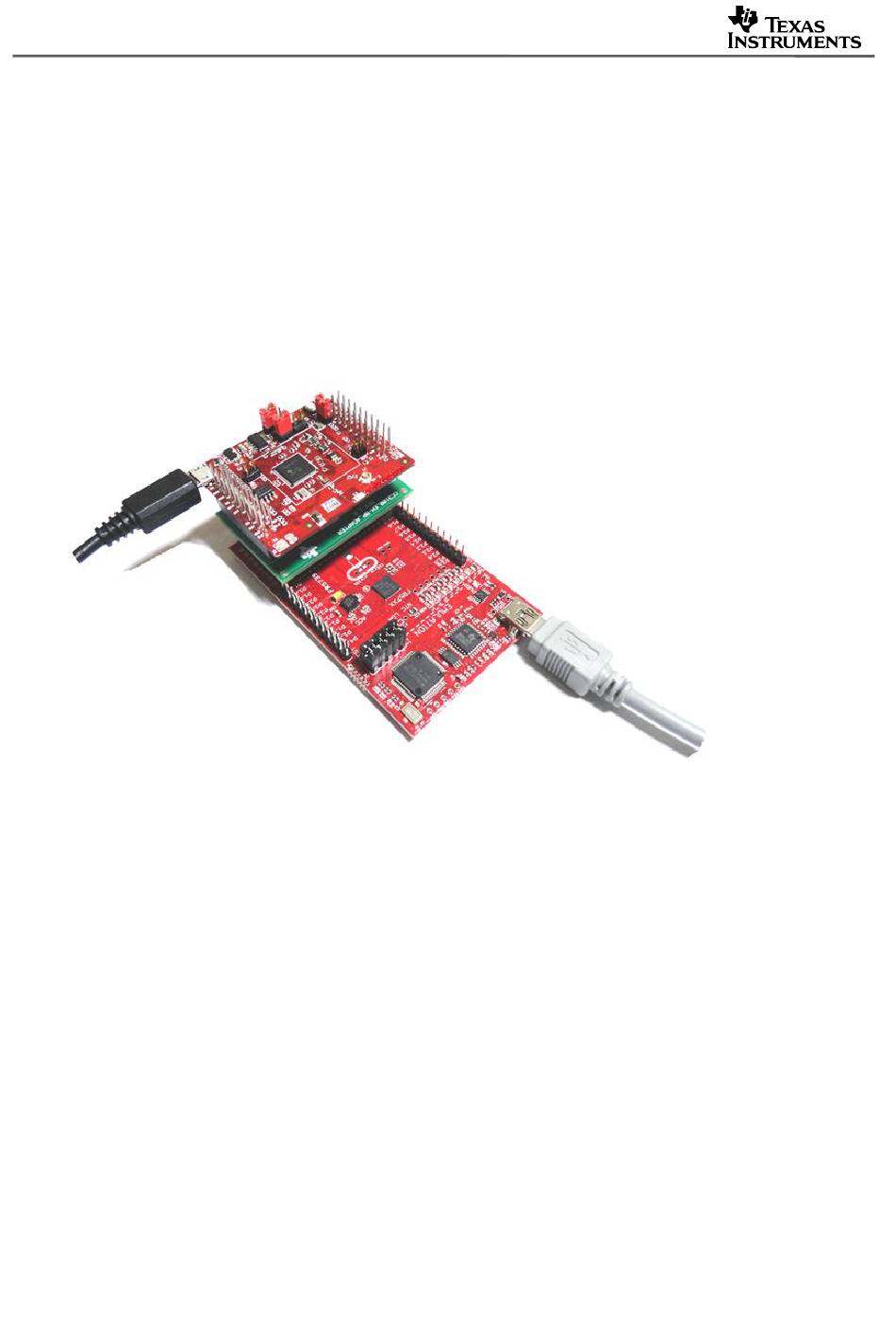

The stacked setup is as shown below. Ensure that the connectors are oriented correctly
before powering up the board.
