4.3.2 Hardware details

MAC and NWP
Logger

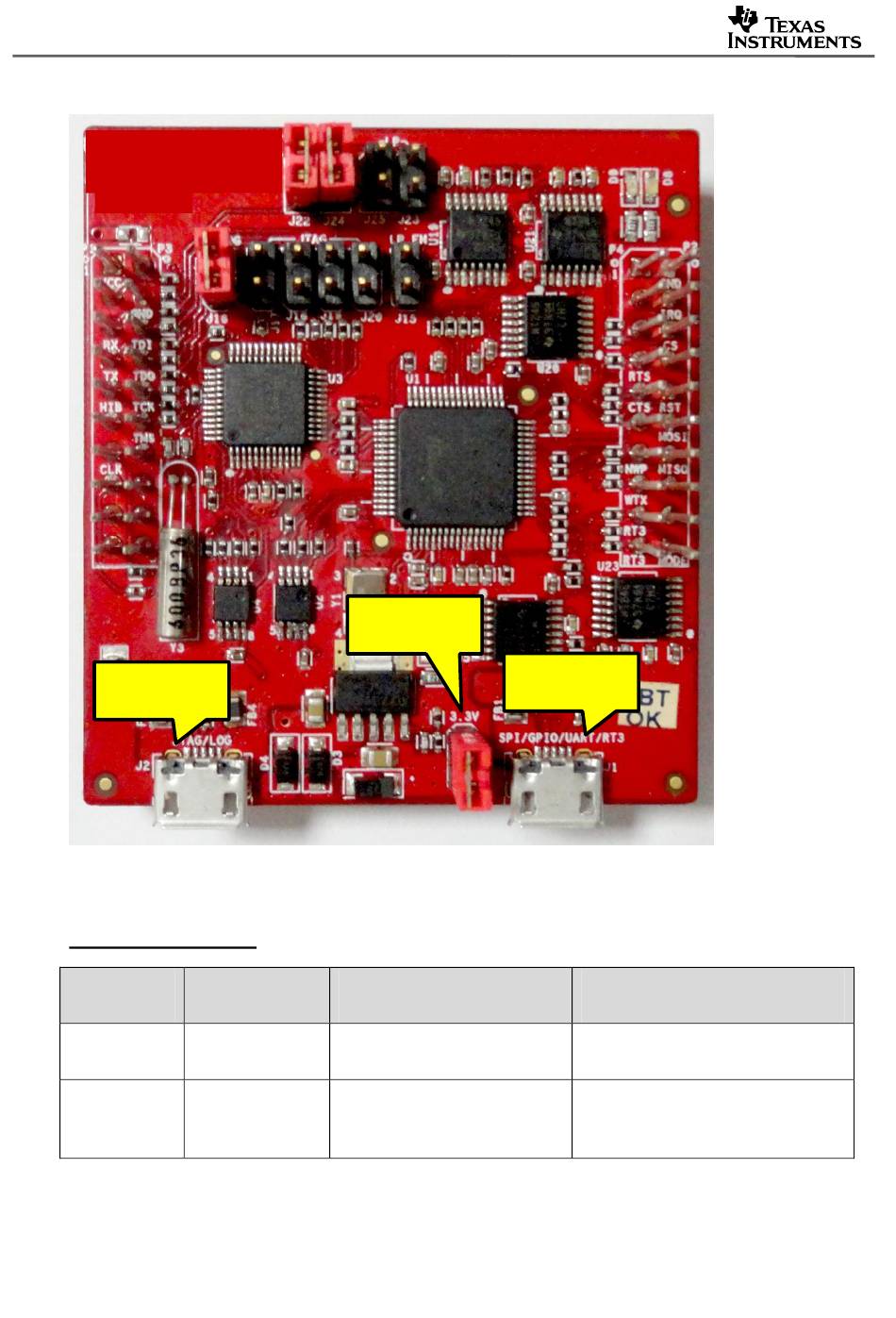

The board has two FTDI ICs to enumerate multiple COM and D2XX ports. The details of the
ports are given below
Ports available on J1
Port No
1
2
Port Type Usage
D2XX SPI port for SL Studio
D2XX GPIO for SL Studio
TI Proprietary Information - Strictly Private
Power
SPI, GPIO,
UART, RT
3
Comments
Control the nRESET, nHIB,
IRQ
