Connecting to a PC using FTDI Board

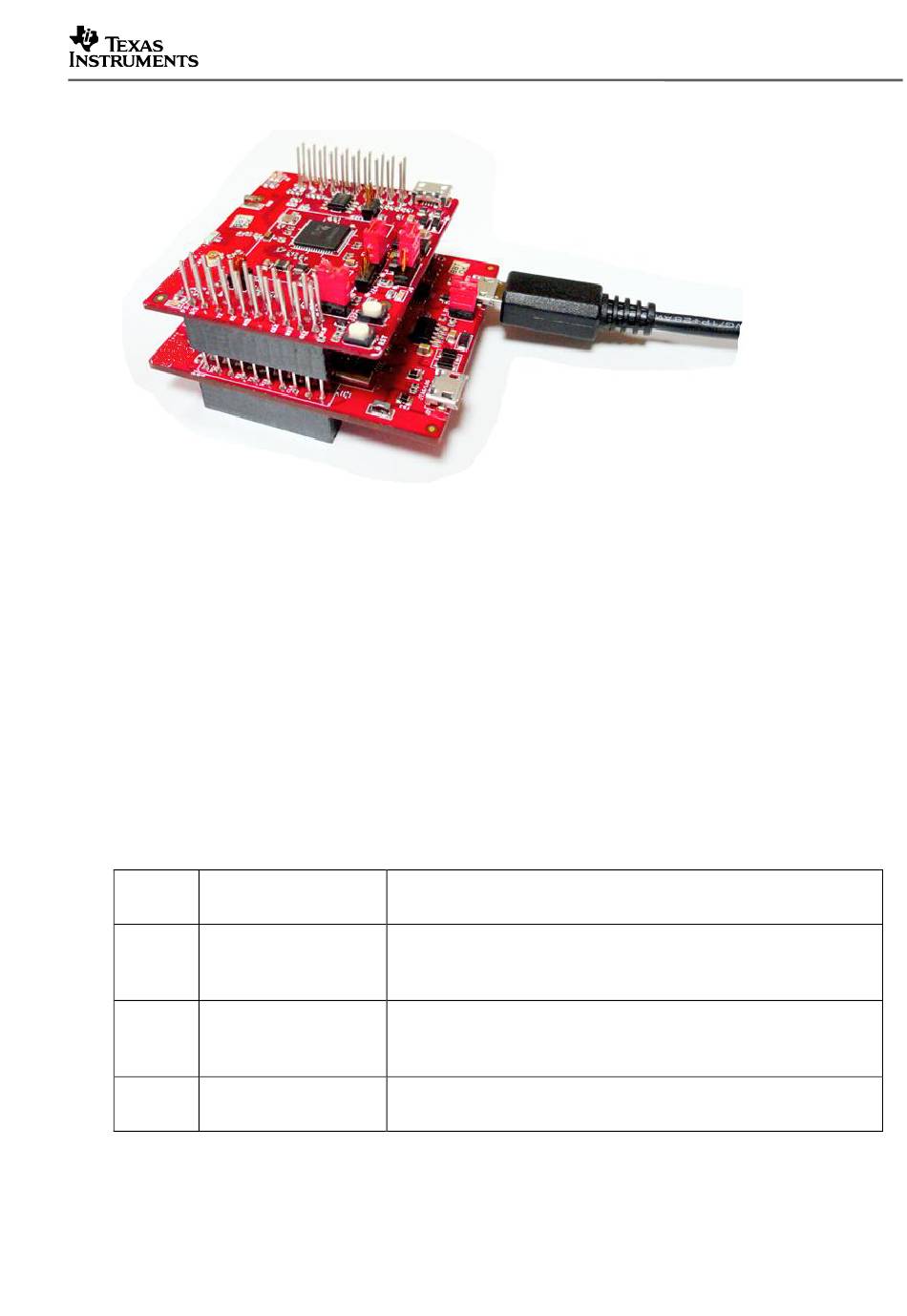

FIGURE 2 : PC CONNECTION USING FTDI
The image above shows the connection of the Booster Pack to the FTDI Board. The
connectors should be aligned carefully considering that it does not have a polarity protection.
The pin-1 of the connectors are marked on the board using a DOT and these should be
aligned while mating.
Note : The mating and unmating force needed for these connectors may be large and may
end up breaking the boards. To prevent this caution should be restrained while unmating
these. Also , it is not recommended to mate the connectors all the way. About 3mm contact
length is good enough for the board as shown in the figure above.

4.1 Jumper settings on the BP Board

The following table specifies the jumpers to be installed while mating with the FTDI board.
No Jumper settings
1 J6 (1-2)
2 J25 (shorted)
3 J24 (open)
Notes
Power the BP from the FTDI. The jumper shall be placed
close to the LED.
The top die flash on CC3100Z devices powered from 3.3V
directly
No current measurement
