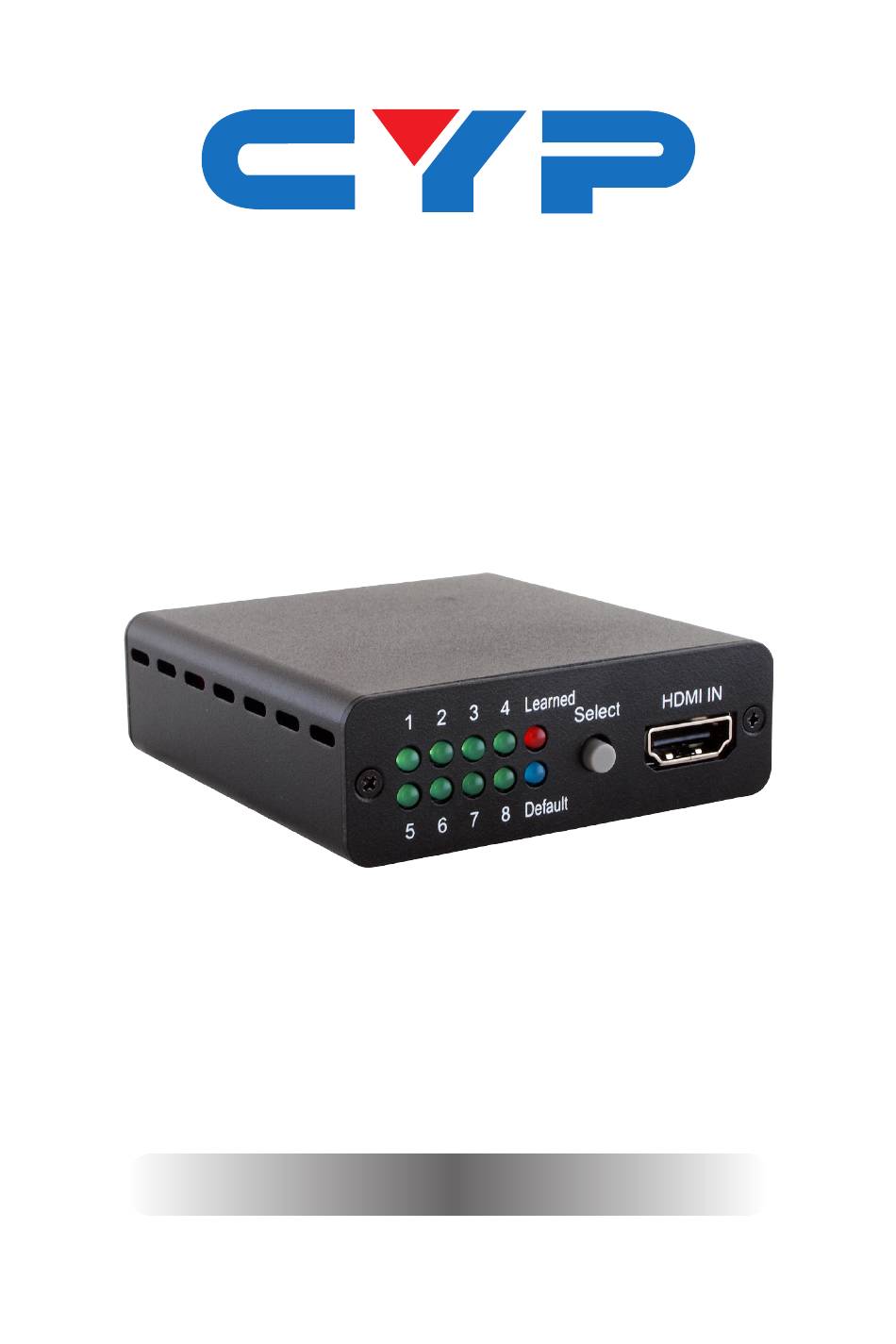

- Page 1 CED-1M HDMI EDID Emulator Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Factory Default EDID ......5 6.4 EDID Application Installation ..5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI EDID Emulator is designed to manipulate the HDMI/DVI EDID information to be provided to source device for it to know capabilities of the connected display equipment and output the Video/Audio signal accordingly. Aiming to simplify the technical complications involved in Video/Audio system integration, home theater installation, Video/Audio equipment testing and experiment, the model provides selections of the Learning function to Read/Write the Video/Audio EDID to the system. -
Page 7: Features
5. FEATURES • Compliant with HDMI and DVI 1.0 standards • Supports HDMI features: ■ High Video bandwidth up to 300MHz (9Gbps) ■ Resolutions up to 1080p@60Hz & 4Kx2K@24/30 ■ 12-bit Deep Color ■ LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate) •... -
Page 8: Operation Controls And Functions

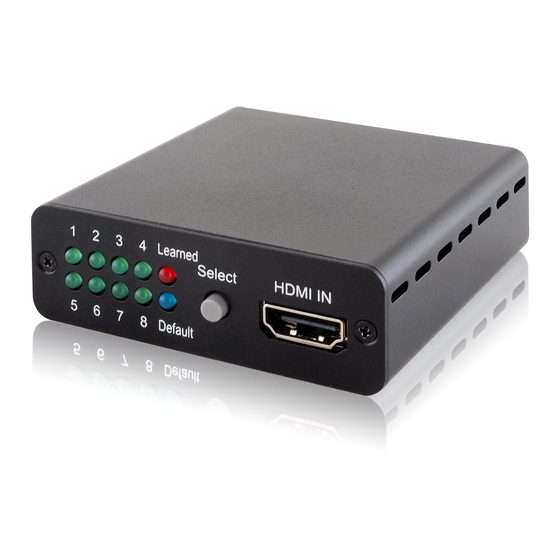

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 4 Learned Select HDMI IN 8 Default LED indicators 1~8: Each LED indicates each EDID selection when in Learned or Default mode. Press [Select] button to switch between 1 to 8 memories, the LED will illuminate accordingly to the selection. -
Page 9: Rear Panel
6.2 Rear Panel EDID HDMI OUT Bypass STATUS Emulator HDMI OUT: Connect to HDMI TV/display. USB: Connect Mini-USB cable to an active USB device to power the system. Or the device may also be triggered by an activate HDMI input source. EDID SET: Press to execute EDID Read/Write function. -
Page 10: Factory Default Edid
Red that means writing failed. If the STATUS LED did not blink and illuminate in Red it means TV's EDID is not writable. NOTE: Once overwrite is successfully done the original EDID will be erased. Please be caution when using this function. √... - Page 11 A Wizard dialogue will appear, click “Next” to continue the installation.
- Page 12 Tick on “I accept …” to continue the installation. Insert the user or set the usage for this application and save it to a location where it desire. Then click on “Next” to continue.
- Page 13 Click on “Install” to confirm the user name and save location. The installation will only be complete after clicking on “Finish”. An icon may be appear on the right bottom or on the desk to show a successfully installation of the application.
- Page 14 Connect the HDMI EDID Emulator device and click on “Connect” or double click on the icon to start using the application. EDID Application includes EDID Learning, Reading, Writing and Default settings.
- Page 15 Click on “File” to Save the Learned and Defualt EDID up to 8 sets each. Click on Learned/Default button to switch in between the mode. Click on Extended EDID with File’s Open.tex tosave the designed Learned EDID’s contents.
- Page 16 Click on Parsing to display the EDID Block 0 & 1’s contents.
-
Page 17: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player PS3 Player HDMI 4 Learned Select HDMI IN 8 Default EDID HDMI OUT Bypass STATUS Emulator HDMI 3D TV/Display... -
Page 18: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/9Gbps Input ports 1 x HDMI, 1 x USB (Power only) HDMI Input Cable Distance 5M@4K2K or 10M@1080p 12-bit Output port 1 x HDMI, HDMI Output Cable Distance 5M@4K2K or 10M@1080p 12-bit Resolution Up to 4Kx2K@24/25/30Hz USB Power 5V / 500mA Dimensions... -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4Kx2K 3840 x 2160 / 4096 x 2160 Consumer Electronic Control EDID Extended Display Identification Data HDMI High-Definition Multimedia Interface 1024x768... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CED1M...
