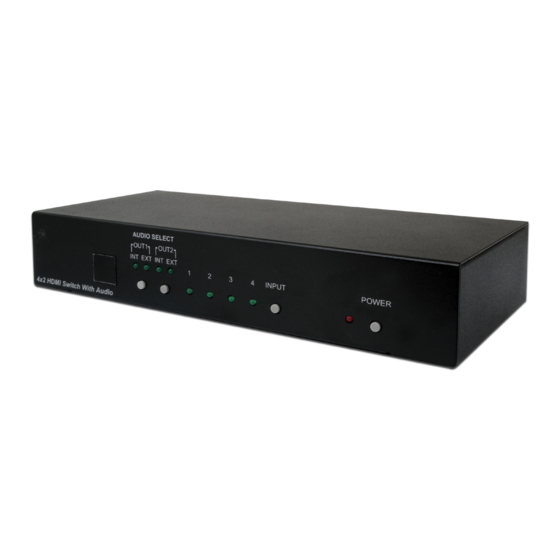

- Page 1 CLUX-42SA HDMI V1.3 4 by 2 Switcher with Audio Operation Manual CLUX-42SA...
-
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. 7. Operation Controls and Functions............7.1 Front Panel .................. 7.2 Rear Panel .…………………………..………..……..…...….… 8. Remote Control .....…..……..………..…..…..…... 9. RS-232 Protocols................... 9.1 Pin Assignment................9.2 Commands.................. -
Page 5: Introduction
Furthermore, this HDMI V1.3 Switcher supports HDMI 1.3, HDCP 1.1 and DVI 1.0, and can also transfer Deep Color video and bit stream digital audio. The CLUX-42SA HDMI V1.3 Switcher with Audio, organizing made easy. 2. Applications Simultaneously display Multiple sources on two LCD TV’s ... -
Page 6: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio The HDMI input signal is compensated, clock/phase adjusted, and jitter ... -
Page 7: Specifications
6. Specifications Frequency Bandwidth 2.25Gbps (single link) Input Port 4 x HDMI female ports, 4 x R/L ports Output Port 2 x HDMI female ports Power Supply 5V DC/5A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 10kV (air-gap discharge) ±... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel AUDIO SELECT OUT1 OUT2 EXT INT EXT INPUT POWER 4x2 HDMI Switch With Audio ① ② ③ ④ ① Remote Control Sensor ②... -
Page 9: Remote Control
8. Remote Control ① Power: Press the button to turn the unit on or off. POWER ② Direct input selector: Press 1, 2, 3 or 4 to select the ① HDMI INPUT desired input source. ② AUDIO SELECT INT/EXT INT/EXT CR-76 9. -
Page 10: Commands
9.2 Commands Power 00 Power off Power 01 Power on Port 01 HDMI IN 1 Port 02 HDMI IN 2 Port 03 HDMI IN 3 Port 04 HDMI IN 4 AUDSEL 00 HDMI OUT1 audio out by EXT AUDSEL 01 HDMI OUT 1 audio out by INT AUDSEL 10 HDMI OUT 2 audio out by EXT... -
Page 11: Connection And Installation
10. Connection and Installation Stereo HDMI HDMI HDMI HDMI Blu-ray LCD TV LCD TV... -
Page 12: Acronyms
Acronyms Acronym Complete Term Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100125 MPM-CLUX42SA...
