Summary of Contents for CYP CMLUX-4H4CAT

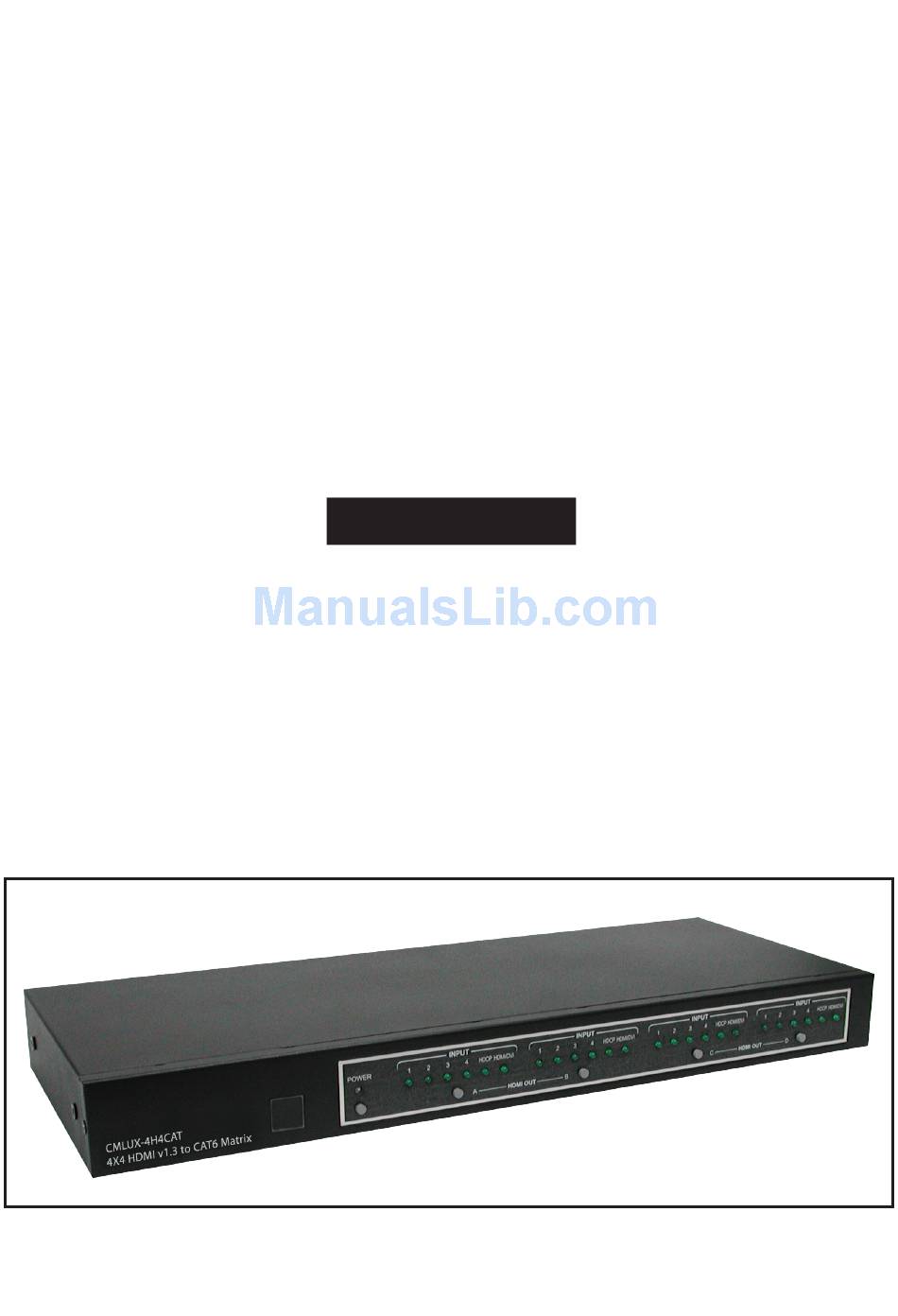

- Page 1 CMLUX-4H4CAT 4 by 4 HDMI V1.3 over CAT 5 Matrix Operation Manual CMLUX-4H4CAT...
- Page 2 Revision History Version No. Date Summary of Change 20090610 Preliminary Release Precautions Failure to follow the precautions described below may cause damage to 4 by 4 HDMI V1.3 over CAT 5 Matrix and void the warranty. DO NOT open the case. Doing so will void the warranty. If you ...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..……………………..…………………........ 2. Applications......…..……………………………………..… 3. Package Contents......……………………………….……. 4. System Requirements......……………………………..…… 5. Features........…..…………………………………...……….. 6. Installation......…………………………………...………….. 6.1. Front Panel......…………………………………...………….. 6.2. Rear Panel.......…………………………………...………….. 7. Remote Control.......…..……………………………...………….. 8. RS-232 Protocal.......…………..……………………...………….. 8.1 Pin Definition....…………..……………………...………….. 8.2 Commands.....…………………….……………...………….. 9. Connection and Installation..............10. Specifications.................. -
Page 4: Introduction
1. Introduction This high performance HDMI Matrix over CAT 5 with remote control is compatible with HDMI v1.3 specifications. A cutting-edge technology which defines the supports to transfer Deep Color (10 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. -
Page 5: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Supports digital video formats in Deep Color Mode at up to 30 bits (10bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. The HDMI input is compensated, clock / phase adjusted, and jitter ... -
Page 6: Installation
6. Installation 6.1 Front Panel ③ ① ② ④ ⑤ ① . Remote control sensor. ② . Power switch & LED Indicator: The LED will illuminate when the power is turned on. ③ . Input Select/Indicators (A/B/C/D): Press the “ HDMI out A ” button repeatedly to switch to your desired source and the LED will illuminate to indicate which input source is being selected and routed to HDMI A display. -
Page 7: Rear Panel
6.2 Rear Panel ① ② ③ ④ ⑤ ⑥ ⑦ ① . EDID Control Switcher: Default factory setting is TV, leave as if the display is properly. Switch to STD to use built-in EDID. [Note]: 1. When EDID switch to TV, the unit will detect the first HDMI output source ’... -
Page 8: Remote Control
HDMI OUT C. 5. Input Select for HDMI OUT D: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT D. 8. RS-232 Protocal 8.1 Pin Definition CMLUX-4H4CAT Remote Control Console Definition Definition →... -
Page 9: Commands
8.2 Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2 PORT 23... -
Page 10: Connection And Installation
9. Connection and Installation HD TV HD TV HD TV HD TV... -
Page 11: Specifications
10. Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 4 x HDMI female ports, Output ports 4 x Video/DDC CAT 5 ports EDID Standard, TV/Moving Port 1 HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D- TrueHD, DTS-HD HDMI Cable in 1080p 8-bit (15M), 1080p 12-bit (15M) HDMI Cable out 1080p 8-bit (15M), 1080p 12-bit (15M) - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090703 MPM-CMLUX4H4CAT...
