Error Example
The USB peripheral is used and uses the device PAD bounded to package pin V24. Configuring the CAN
peripheral such that the RXBUS port is connected to an MSIO results in an error.

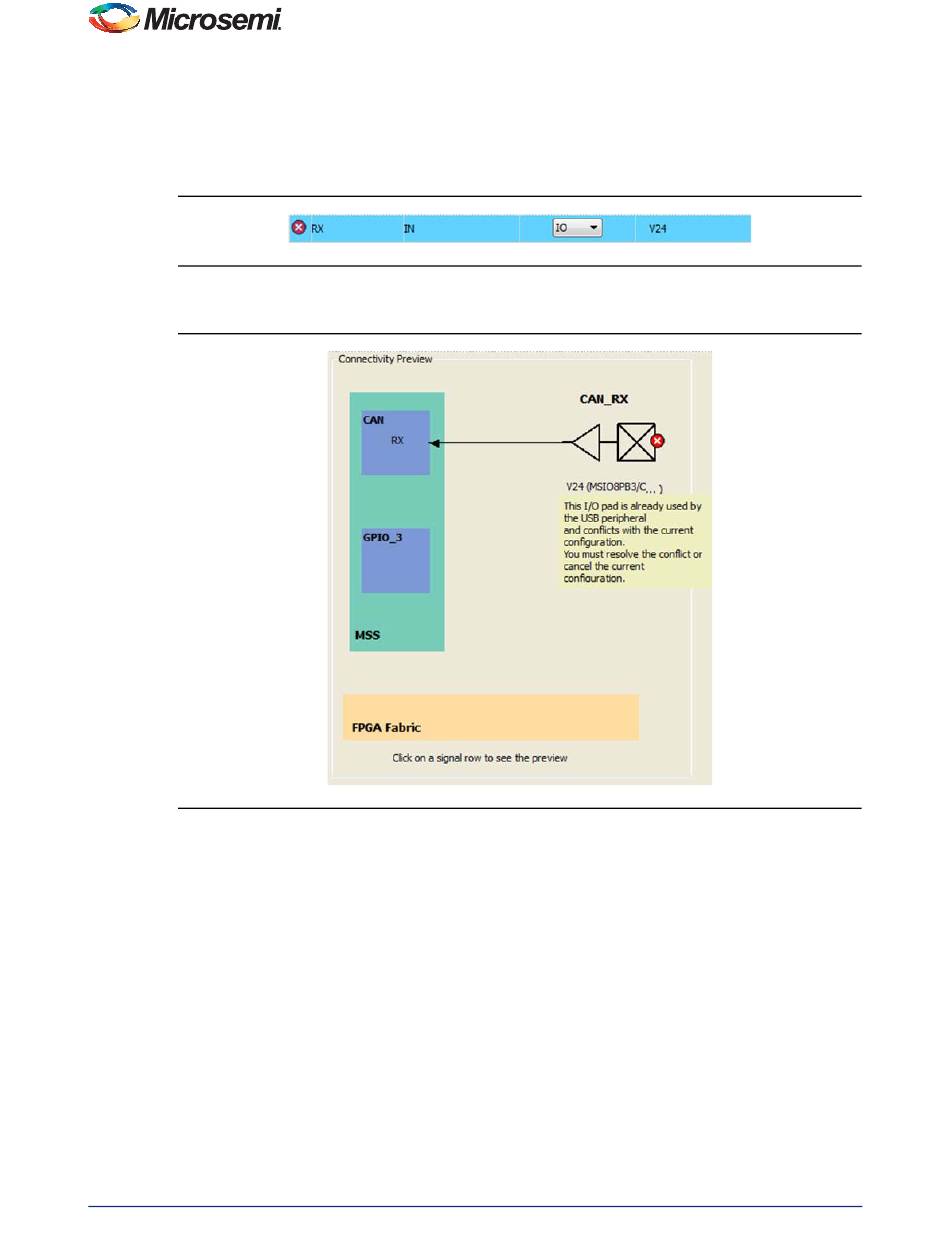

Figure 4-1
shows the error icon displayed in the Connectivity Assignment table for the RXBUS port.
Figure 4-1 • Error Displayed in the Connectivity Assignment Table
Figure 4-2
shows the error icon displayed in the Preview panel on the PAD resource for the RXBUS port.
Figure 4-2 • Error in the Preview Panel
8
