Error Example
The SPI_0 peripheral is used and uses the device PAD bounded to package pin Y30. Configuring the
USB peripheral such that the DIR port is connected to an MSIO (ULPI, I/O Group A) results in an error.

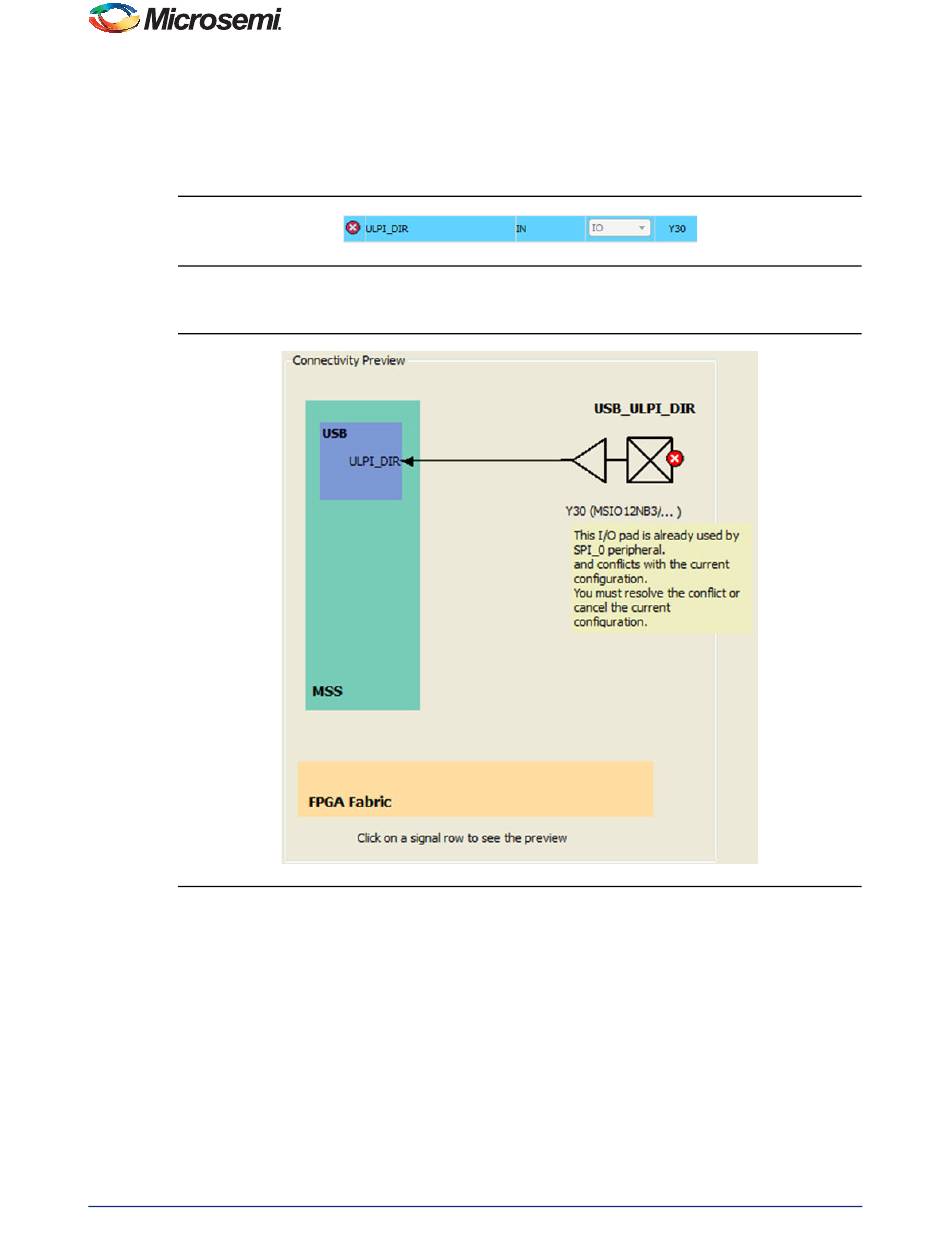

Figure 4-1
shows the error icon displayed in the connectivity assignment table for the DIR port.
Figure 4-1 • Error Displayed in the Connectivity Assignment Table
Figure 4-2
shows the error icon displayed in the preview panel on the PAD resource for the DIR port.
Figure 4-2 • Error in the Preview Panel
