Information Example
The USB peripheral is used and uses the device PAD bounded to package pin V24. Configuring the CAN
peripheral such that the RXBUS port is connected to the FPGA fabric does not result in a conflict.
However, to indicate that he PAD associated with the RXBUS port (but not used in this case), the
Information icon is displayed in the Preview panel
provides a description of how the resource is used (USB in this case).

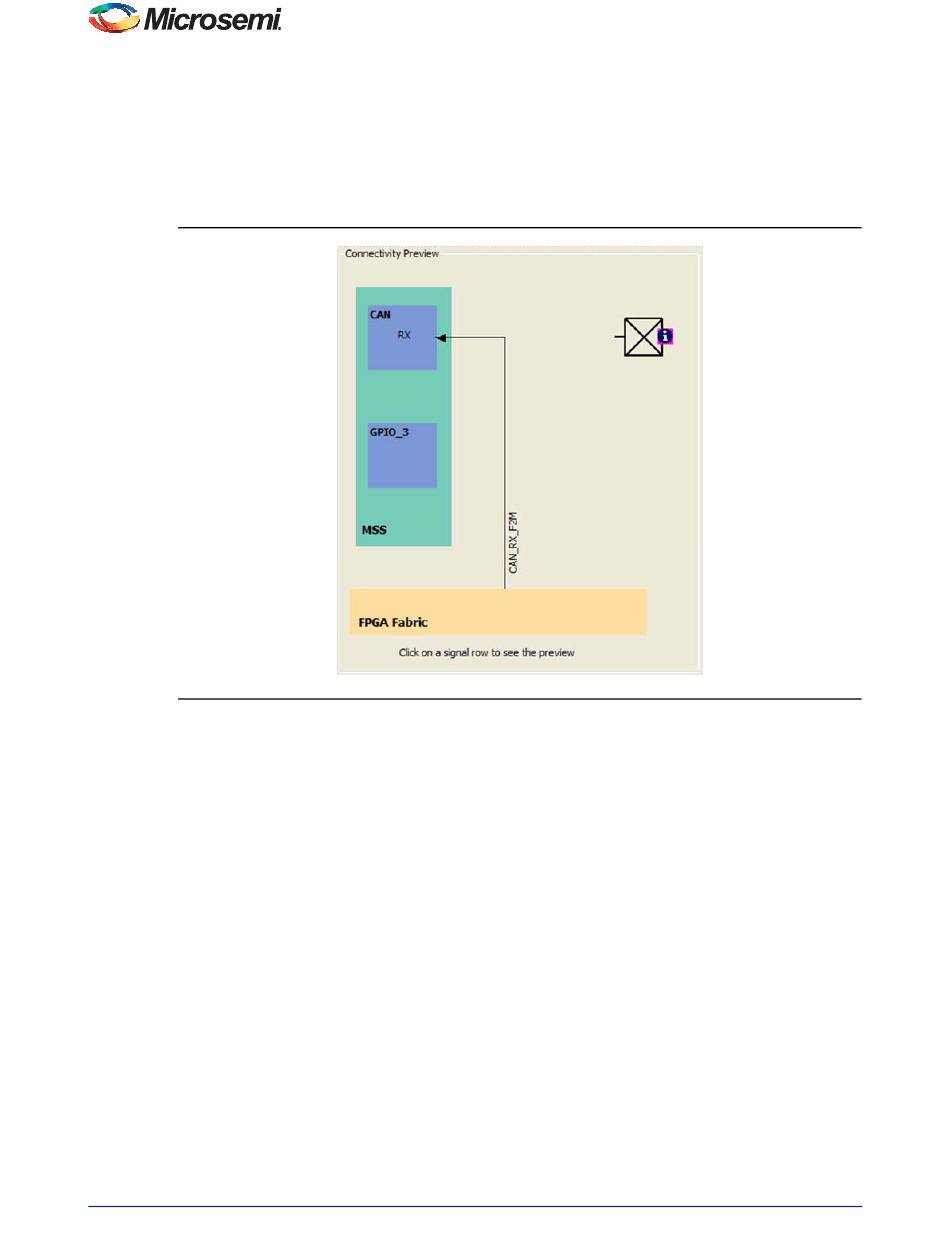

Figure 4-5 • Information Displayed in the Preview Panel
10
(Figure
4-5). A tooltip associated with the icon
