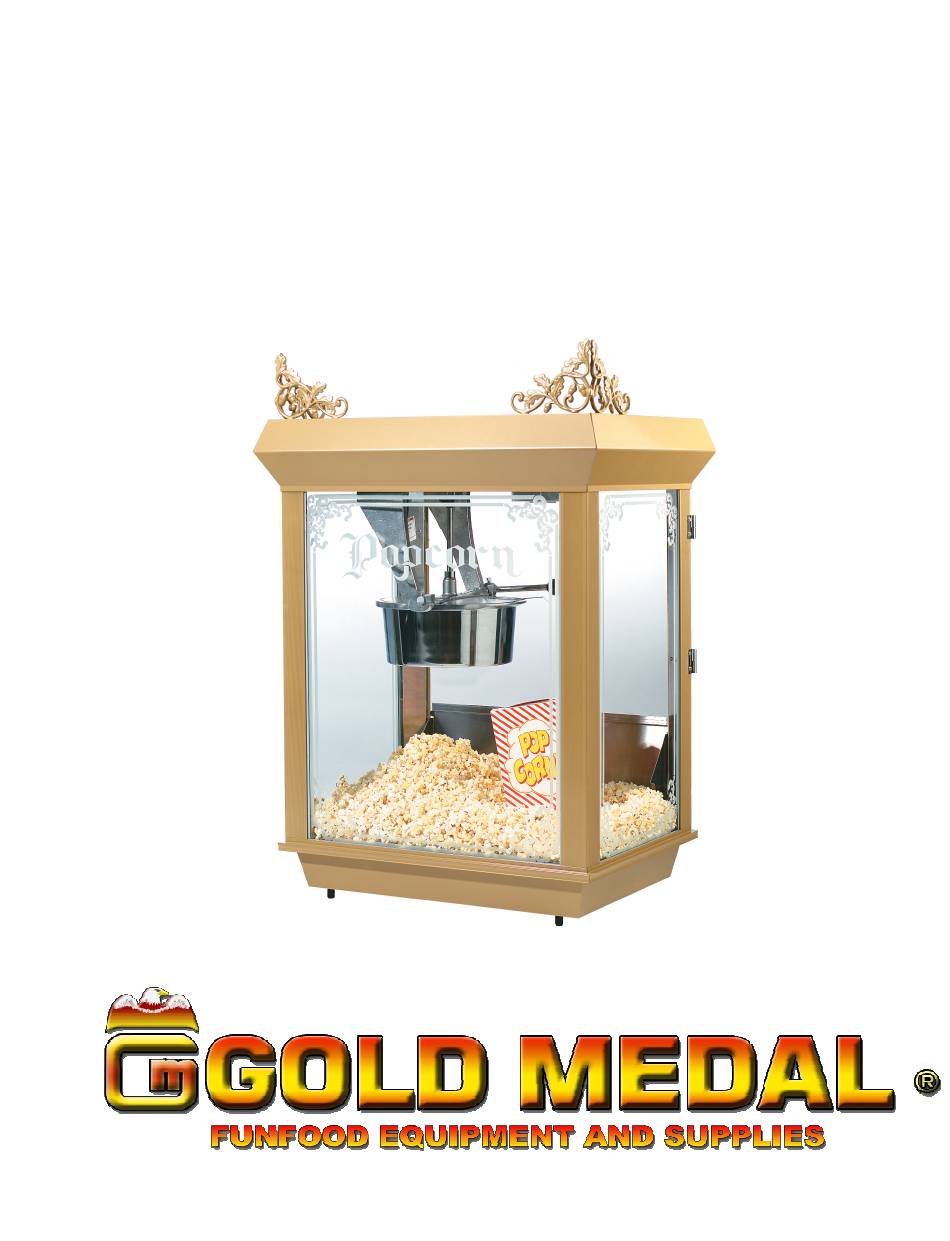

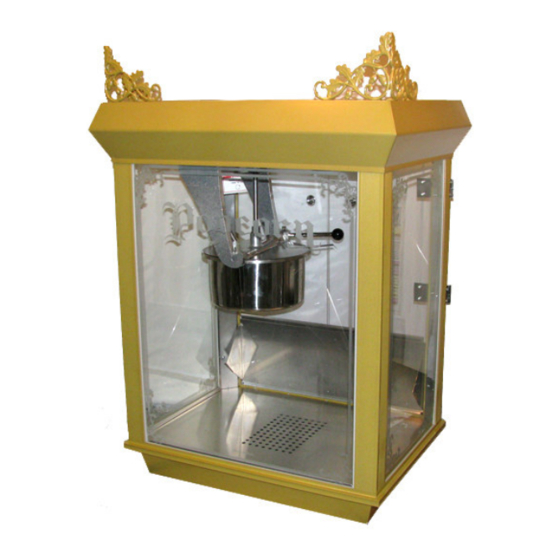

- Page 1 Part No. 75104 Gay 90 Whiz Bang Instruction Manual Model No. 2014, 2014KC, and 2014EX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 This machine is NOT to be operated by minors. 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. - Page 5 Gay 90 Whiz Bang Popper Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. The popper unit has 4 glide feet preinstalled at the factory. Install a Black Crutch Tip (if provided) on each of the 4 glide feet.
-
Page 6: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 7 Gay 90 Whiz Bang Popper OPERATING INSTRUCTIONS Controls and Their Functions LIGHT/WARMER SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the popcorn sign, interior cabinet light, and heat element for the corn deck freshener. The green switch light ON indicates there is power to the lights and corn pan heat element.
- Page 8 Gay 90 Whiz Bang Popper POPPING CORN This section describes instructions for popping Standard (salted popcorn), and for popping Pappy’s Kettle Corn. Popping Standard (Salted) Popcorn The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil.
- Page 9 Diamond Crystal Popcorn Salt (Item No. 2070CT, 12 oz. container). DO NOT use popcorn seasoning salt when popping Pappy’s Kettle Corn. Gold Medal recommends white coconut oil for popping Pappy’s Kettle Corn (colored oil can change the popcorn color). Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in the kettle like other oils.
-
Page 10: Care And Cleaning
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 11 Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 12: Troubleshooting
Gay 90 Whiz Bang Popper TROUBLESHOOTING Issue Possible Cause Solution Power to the Unit A. Power to the Unit A. Make sure the unit’s power cord is plugged Kettle Does Not Heat A. Power to the Kettle A. Make sure kettle lead-in cord is plugged in and twisted to lock into the kettle receptacle. - Page 13 Gay 90 Whiz Bang Popper Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Steps to Adjust Set Collars Step 1: Make sure machine is OFF and unplugged, then allow unit to cool completely Agitator’s Spur Gear...
-
Page 14: Maintenance Instructions
Gay 90 Whiz Bang Popper MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 15: Replacing Broken Glass
Gay 90 Whiz Bang Popper Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 28 3/16”... -
Page 16: Ordering Spare Parts
Gay 90 Whiz Bang Popper ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit. 3. When ordering, please include part number, part name, and quantity needed. - Page 17 Gay 90 Whiz Bang Popper 12/14 oz. Kettle Assy. (58220, 58220KC, 58220EX) – Agitator Assembly .58220 Overall I mage Complete Agitator Assembly (Includes Lids) See Kettle Bottom Assy. Complete Kettle Assembly *See Parts List note. 19, 20 Complete Agitator Assembly...
- Page 18 Gay 90 Whiz Bang Popper 12/14 oz. Kettle Assy. (58220, 58220KC, 58220EX) – Agitator Assembly - Parts List Part Number Item Part Description 58220, 58220EX 58220KC 1/4-20 X 1.25 THUMB SCREW 61068 61068 8-32 X 1/2 PHILL FLAT M/S ZINC...
- Page 19 Gay 90 Whiz Bang Popper 12/14 oz. Kettle Assembly (58220, 58220KC) – Kettle Bottom View Kettle Bottom Assembly Element View Top Lock Nut - Fastens each thermostat and ground. Install Lock Nut with triangle in UP position (as shown). ONE TIME USE ONLY, REPLACE NUT if removed.
- Page 20 Gay 90 Whiz Bang Popper 12/14 oz. Kettle Assembly (58220EX) – Kettle Bottom View Kettle Bottom Assembly Element View As of March 1, 2016, the EXPORT Kettle Lead-in Assembly Plug is 230V (NEMA L-6). When replacing the lead-in assembly, ensure the kettle receptacle will match the new configuration (see image below).
- Page 21 Gay 90 Whiz Bang Popper Cabinet Breakdown Inspection cover Assy Magnetic Catch Magnetic Catch Ornament p/n 67459 Bracket p/n 47559 p/n 47402 (L/R) p/n 47561 Top Frame p/n 67453 For Controls, see Motor Plate Assembly section. Complete LH/RH Door Hardware Kit...
- Page 22 Gay 90 Whiz Bang Popper Door Hardware Kits – Individual Component Breakdown Complete Left Hand Door Complete Right Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number...
- Page 23 Gay 90 Whiz Bang Popper Cabinet Interior – Ceiling Components Kettle Receptacle 15A Twist Lock p/n 49330 (Export Kettle Receptacle Gear Block Assy. p/n 49330EX) p/n 67194 SPUR GEAR KIT p/n 47059K (Includes 2 gears with set screws. Always replace Agitator Spur...
- Page 24 Gay 90 Whiz Bang Popper Bottom Corn Pan Assembly Model 2014 and 2014KC (Part Number 47598) Model 2014EX (Part Number 47598EX) Complete Bottom Corn Pan Assembly for includes items shown below, and includes Female Cordset p/n 61020 (not shown). Heat Element 115V, 75W...
- Page 25 Gay 90 Whiz Bang Popper Motor Plate Assembly - Dome Interior View Light Shield Kettle Receptacle 15A 75 Watt Flood Light Kettle Drive Motor, 120V p/n 49480 Twist Lock p/n 49330 p/n 41671 p/n 47038 (EXPORT Light (EXPORT Kettle Lamp Holder...
- Page 26 Gay 90 Whiz Bang Popper Accessories Part Number Item Part Description 2014, 2014KC 2014EX STAMPED ALUM SCOOP 2071 2071 MEASURE 14.7CC 47679 47679 MEASURE 1/2 CUP 47149 47149 12OZ VOL CORN MEA. BRIGHT 47148 47148 TIMER, LCD RESETABLE 63012 Models 2014, 2014KC, 2014EX...
- Page 27 Gay 90 Whiz Bang Popper Electrical Schematic – 2014 and 2014KC Models 2014, 2014KC, 2014EX...
- Page 28 Gay 90 Whiz Bang Popper Electrical Schematic - 2014EX Models 2014, 2014KC, 2014EX...
-
Page 29: Warranty
© 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
