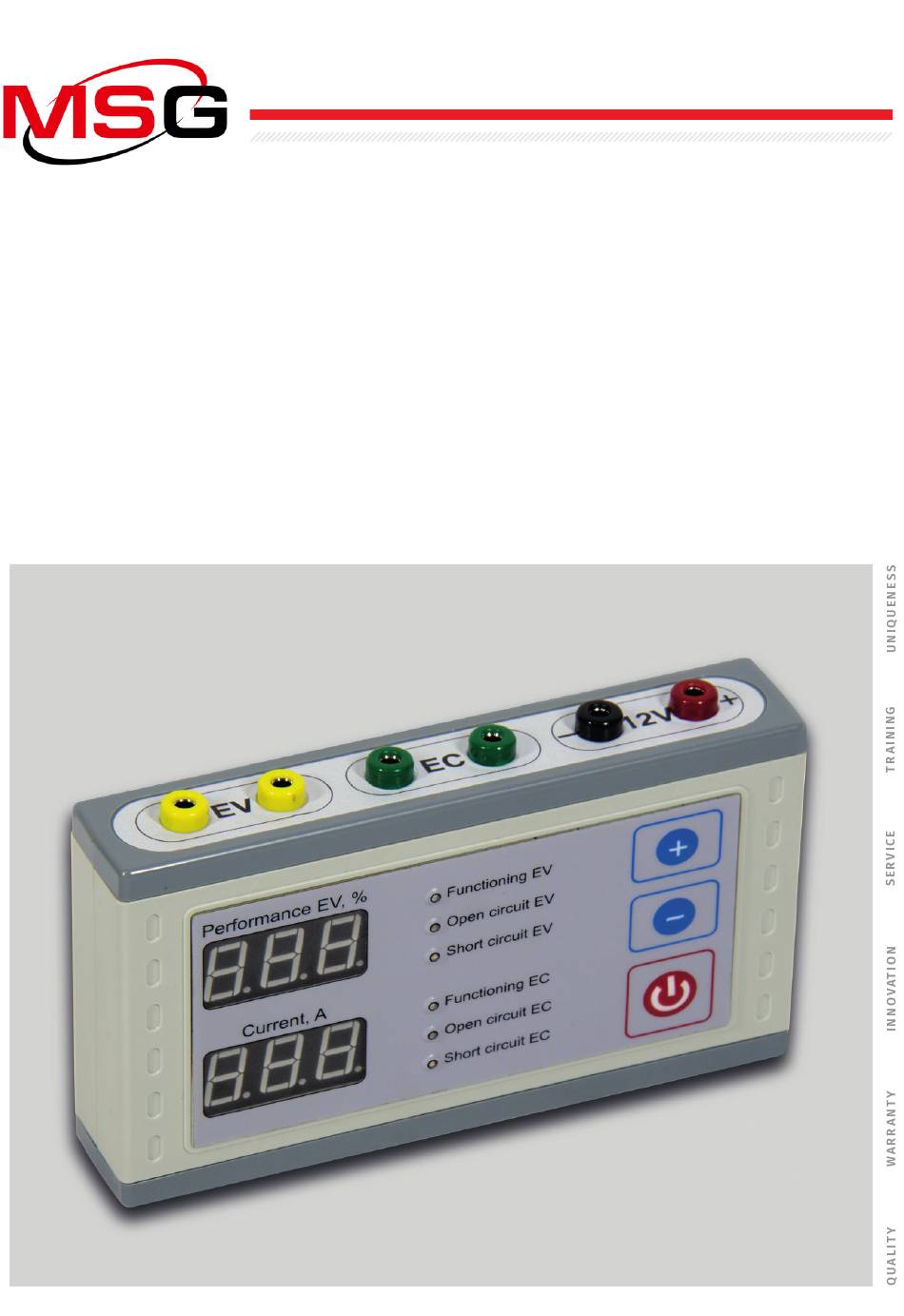

- Page 1 2016.09.08 MSG MS121 TESTER FOR ELECTROMAGNETIC VALVES AND CLUTCHES OF AIR CONDITIONER COMPRESSORS USER MANUAL...
-
Page 2: Table Of Contents
User Manual - Tester MSG MS0121 CONTENTS 1. DESCRIPTION ..............................2. TECHNICAL CHARACTERISTICS ........................3. CONTROL UNITS ..............................3.1 Buttons ................................. 3.2 Connection Terminals ..........................3.3 Indicators ..............................4. SETTING INTO OPERATION ..........................5. STEP-BY-STEP INSTRUCTION .......................... -
Page 3: Description
User Manual - Tester MSG MS0121 1. DESCRIPTION MS121 Tester is a modern, essential and easy-to-use device for car service centers nowadays, dealing with air conditioners. The tester combines two devices: electromagnetic valve tester and electromagnetic clutch tester. The device is optimized for simulation of electromagnetic valve control signals, measuring of valve and/or clutch current consumption. -
Page 4: Technical Characteristics
User Manual - Tester MSG MS0121 2. TECHNICAL CHARACTERISTICS Technical characteristics Supply voltage, V 12-15 Batteries, constant voltage source Supply type 12-15 V Dimensions, mm 155*97*30 Weight, kg Air conditioner electromagnetic valves testing Voltage, V - Duty cycle Tested parameters - Сurrent consumption - Open circuit, short circuit Ampere meter accuracy, A... -
Page 5: Control Units
User Manual - Tester MSG MS0121 3. CONTROL UNITS Fig 1. Tester MS121 – Control panel 3.1 Buttons Used to increase electromagnetic valve performance of air conditioner compressor. Performance increases by 5% after short pressing, performance increases up to maximum value – 100% after long pressing. -
Page 6: Indicators
User Manual - Tester MSG MS0121 3.3 Indicators Indicator displays performance value of electromagnetic valve from 0% to 100%. Indicator displays current consumption value of electromagnetic valve, electromagnetic clutch, or their total value. Electromagnetic valve operability LED indicators: • Functioning EV: indicator is on under faultless electromagnetic valve, connected to the tester. -
Page 7: Step-By-Step Instruction
User Manual - Tester MSG MS0121 • wires to connect the batteries • User Manual. Inspect the tester for existence of damage. If it is found, please contact either the manufacturer or trade representative before launching the equipment. 5. STEP-BY-STEP INSTRUCTION It is strongly recommended to learn actual User Manual before launching the tester.
