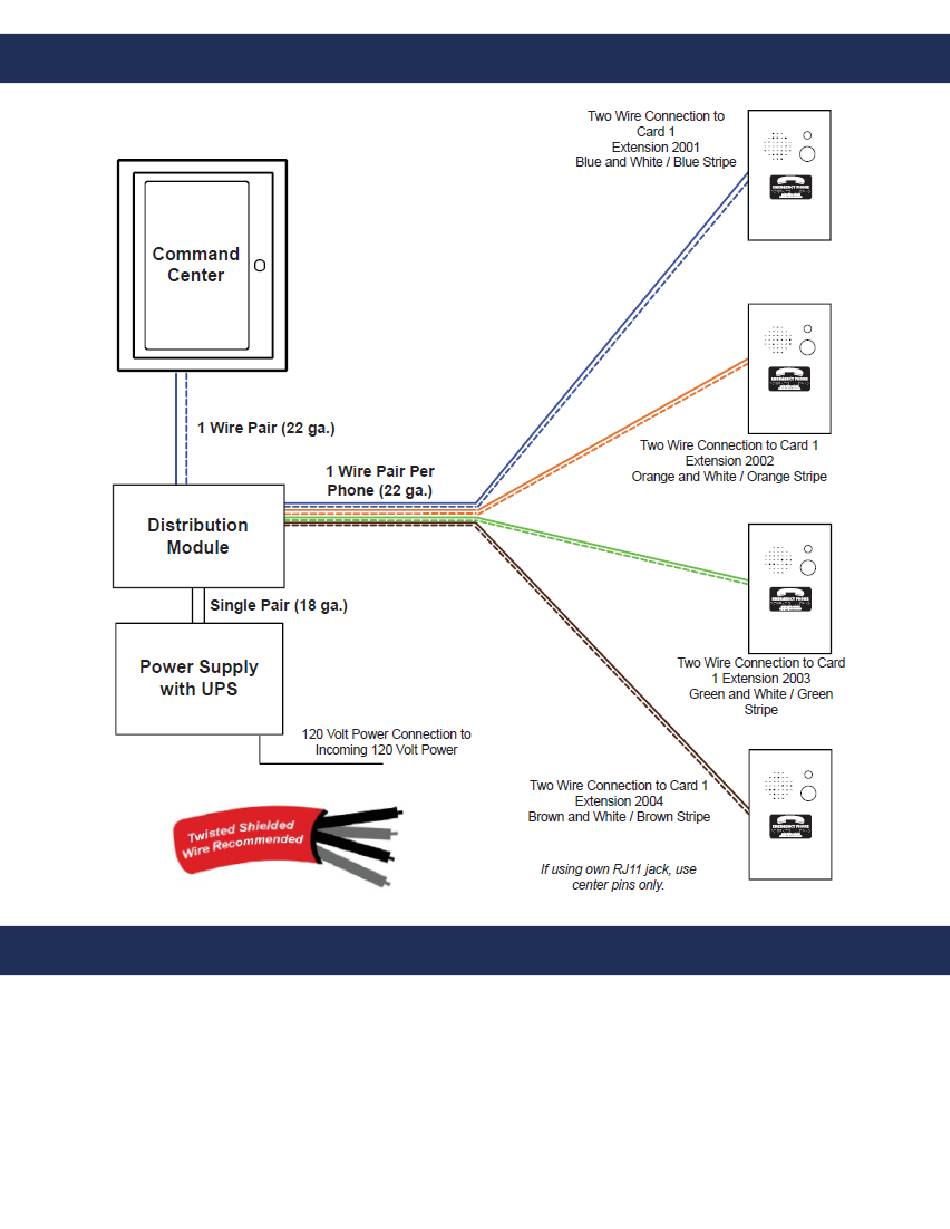

Typical System Layout

Distribution Module Wiring

Step 3:
• These instructions apply for connecting the Command Center to the Distribution Module as well as for
connecting Emergency Phones to the Distribution Module.
• The maximum cable run to the Distribution Module from the Command Center is 6,200' for 22 AWG and
3,900' for 24 AWG cable.
• The maximum cable run to an Emergency Phone is 112,500' for 22 AWG and 70,300' for 24 AWG cable.
• When connecting Emergency Phones to the Distribution Module, EIA/TIA Standards MUST be followed for
wiring the locations to single pair 22 AWG or 24 AWG UTP twisted, shielded cable.
