Rath Command Center Installation & Operation Manual page 6

Option 2
56-96 Zone System:
• Each card installed will have six RJ45 interface connections.
• On top of each RJ45 interface there is a label indicating connection:
• S01-S_ is the port used for connecting Emergency Phones
• TD(1-2)(3-4) with a dot under the D is the port used for connecting Command Center phone(s)
• TD(1-2)(3-4) with a dot under the T is the port used for outside Telco Line
• Plug the supplied RJ45 pigtail cables into the RJ45 interface connections following the wiring chart and pin
out color scheme below.
• Refer to the top of the cards to see what type of RJ45 interface and number of extensions.
• The same pin-out color scheme should be used for the primary card and for all additional cards. The
system uses T568-A for pin-out wiring.
• The first card installed will always be:
• Interface 1: (S01-S04) Connection for 4 Emergency Phones
• Interface 2: (S05-S08) Connection for 4 Emergency Phones
• Interface 3: (S09-S12) Connection for 4 Emergency Phones
• Interface 4: (S13-S16) Connection for 4 Emergency Phones
• Interface 5: (D1-2) Connection for up to 2 Command Center Phones
• Interface 6: (T1-2) Connection for up to 2 outside Telco Lines

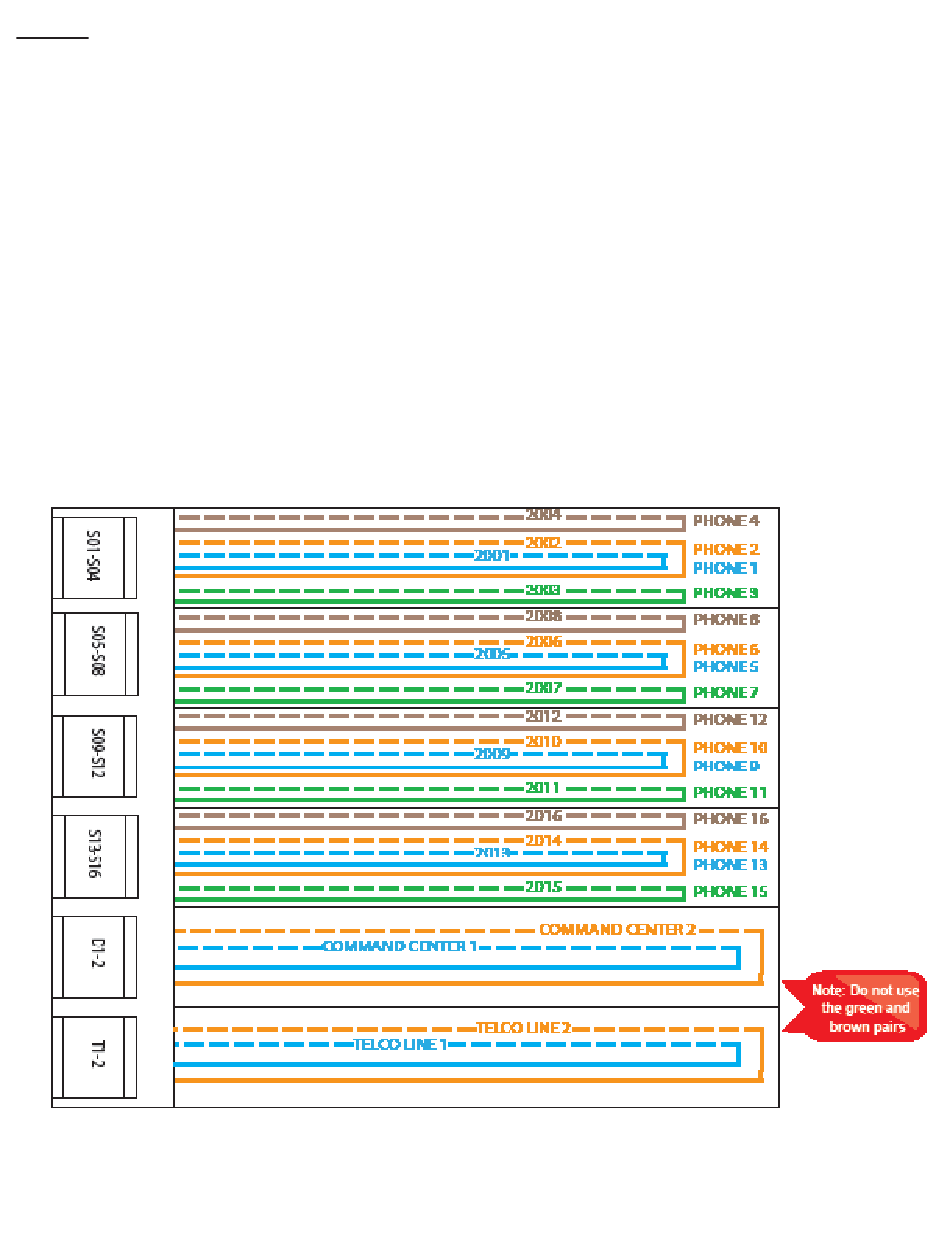

Card 1 Example
